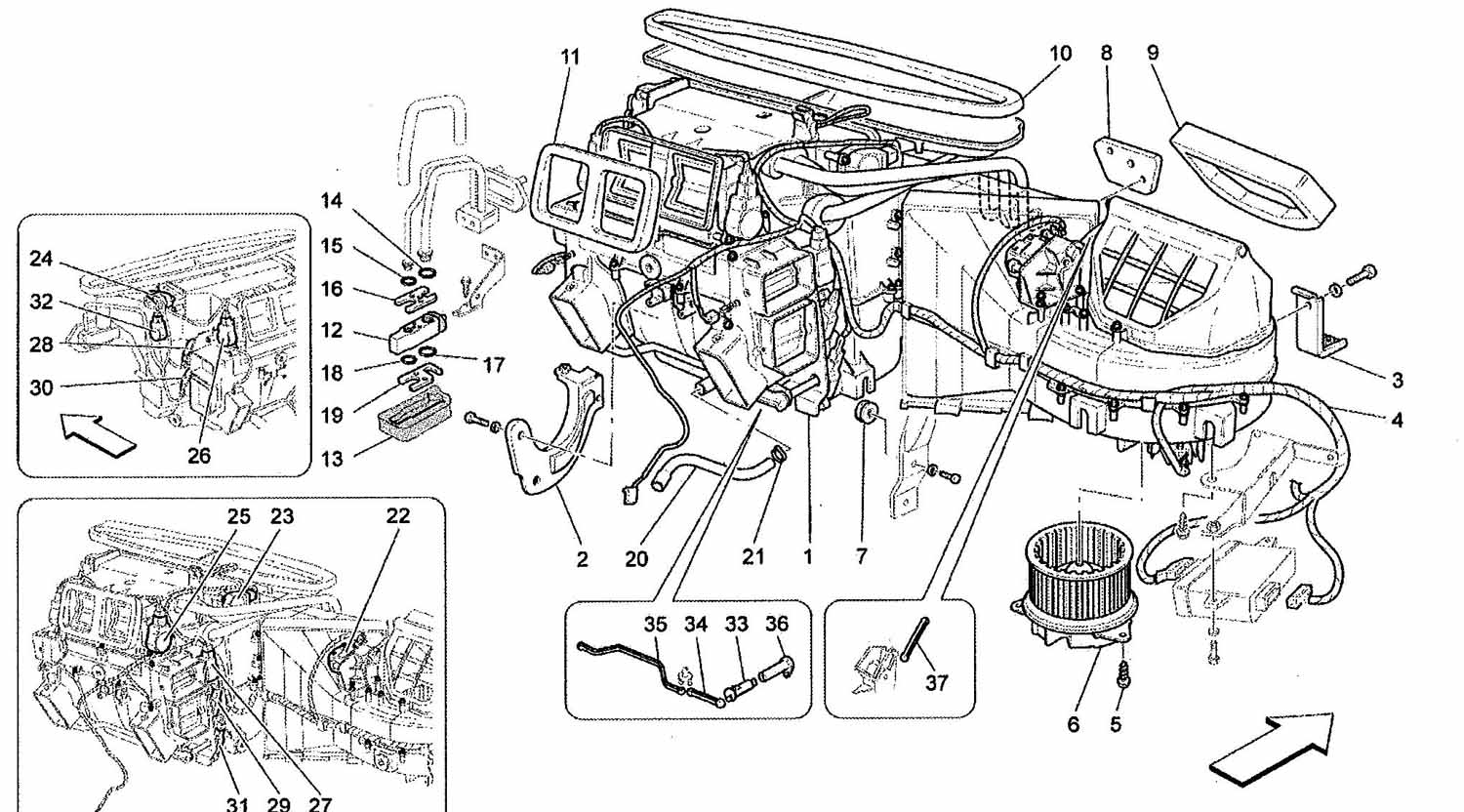

A/C – DASHBOARD DEVICES

Go to Split View

A/C – DASHBOARD DEVICES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 81048600 *Qty: 1 Complete Air Condition Set $3,374.96
Location: 1 Prev | Next Part: 85235700 *Qty: 1 Complete Air Condition Set $3,242.32
Location: 2 Prev | Next Part: 67265400 *Qty: 1 A.C. Support Bracket Not Included In The Complete Air Condition Set (Pos. 1) $21.62
Location: 3 Prev | Next Part: 67265100 *Qty: 1 Rear Bracket Not Included In The Complete Air Condition Set (Pos. 1) $18.79
Location: 4 Prev | Next Part: 68391200 *Qty: 1 Electric Wiring $700.58
Location: 4 Prev | Next Part: 83558400 *Qty: 1 Electric Wiring $541.80
Location: 5 Prev | Next Part: 68391900 *Qty: 0 Screw $0.90
Location: 6 Prev | Next Part: 68391000 *Qty: 1 Fan Call
Location: 7 Prev | Next Part: 68389800 *Qty: 5 Rubber $8.50
Location: 8 Prev | Next Part: 68392400 *Qty: 1 Water Pipe Sink Call
Location: 9 Prev | Next Part: 69394400 *Qty: 1 Inlet Sink Call
Location: 10 Prev | Next Part: 68390000 *Qty: 1 Sink For Defrost Ducting $35.06
Location: 11 Prev | Next Part: 68391800 *Qty: 1 Front Sink $5.61
Location: 12 Prev | Next Part: 68391100 *Qty: 1 Tgk Valve $124.64
Location: 13 Prev | Next Part: 68389600 *Qty: 1 Sink For Valve $5.17
Location: 14 Prev | Next Part: 68391300 *Qty: 1 O.R. Gasket $2.49
Location: 15 Prev | Next Part: 66309300 *Qty: 1 O.R. Gasket $2.14
Location: 16 Prev | Next Part: 64281500 *Qty: 1 Upper Flange $5.56
Location: 17 Prev | Next Part: 66309500 *Qty: 1 O.R. Gasket $2.57
Location: 18 Prev | Next Part: 66309400 *Qty: 1 O.R. Gasket $2.57
Location: 19 Prev | Next Part: 67588300 *Qty: 1 Lower Flange $24.18
Location: 20 Prev | Next Part: 68392500 *Qty: 1 Sleeve Call
Location: 21 Prev | Next Part: 68392600 *Qty: 1 Clamp Call
Location: 22 Prev | Next Part: 68887800 *Qty: 1 Actuator Recycle $224.84
Location: 23 Prev | Next Part: 69050000 *Qty: 1 Actuator R.H. Defroster Ducting $190.67
Location: 24 Prev | Next Part: 69050300 *Qty: 1 Actuator L.H. Defroster Ducting $190.67
Location: 25 Prev | Next Part: 69050100 *Qty: 1 Actuator R.H. Front Ventilation $190.67
Location: 26 Prev | Next Part: 69050200 *Qty: 1 Actuator L.H. Front Ventilation $190.67
Location: 27 Prev | Next Part: 68886800 *Qty: 1 Actuator R.H. Lateral Ventilation $224.84
Location: 28 Prev | Next Part: 69050500 *Qty: 1 Actuator L.H. Lateral Ventilation $224.84
Location: 29 Prev | Next Part: 68886700 *Qty: 1 Actuator R.H. Floor Air Ducting $190.67
Location: 30 Prev | Next Part: 69050600 *Qty: 1 Actuator L.H. Floor Air Ducting $190.67
Location: 31 Prev | Next Part: 68887700 *Qty: 1 Actuator Rear Air Ducting $190.67
Location: 32 Prev | Next Part: 69050400 *Qty: 1 Actuator By-Pass $190.67
Location: 33 Prev | Next Part: 81235000 *Qty: 1 Actuator Pin Rear Air Ducting $36.71
Location: 34 Prev | Next Part: 81235100 *Qty: 1 Actuator Rod Rear Air Ducting Call
Location: 35 Prev | Next Part: 81235200 *Qty: 1 Door Rod Rear Air Ducting Call
Location: 36 Prev | Next Part: 81562000 *Qty: 1 Door Flange Rear Air Ducting $44.05
Location: 37 Prev | Next Part: 81235300 *Qty: 1 Actuator Rod Recycle Call

* Quantity shown indicates the number of pieces used in the diagram.
