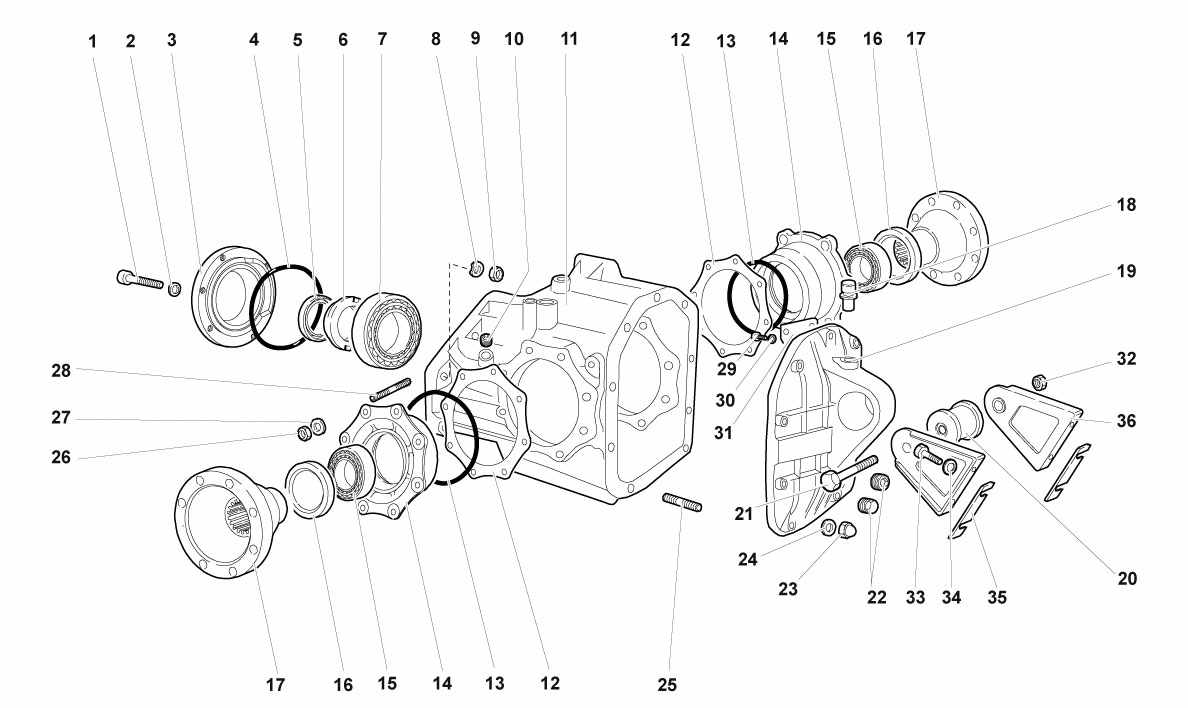

REAR DIFFERENTIAL CASE

Go to Split View

REAR DIFFERENTIAL CASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8700614 *Qty: 6 SCREW $0.90
Location: 2 Prev | Next Part: 8410614 *Qty: 6 WASHER $0.90
Location: 3 Prev | Next Part: B9525584 *Qty: 1 FLANGE $388.46
Location: 4 Prev | Next Part: WHT002222 *Qty: 1 SEAL RING $10.22
Location: 5 Prev | Next Part: B9525596 *Qty: 1 SEAL RING $49.46
Location: 6 Prev | Next Part: B9517606 *Qty: 1 RING NUT $84.44
Location: 7 Prev | Next Part: 8545503 *Qty: 1 BEARING $90.61
Location: 8 Prev | Next Part: 8411002 *Qty: 9 WASHER $0.90
Location: 9 Prev | Next Part: 8201033 *Qty: 9 NUT $0.90
Location: 10 Prev | Next Part: 8931414 *Qty: 1 PLUG $4.22
Location: 11 Prev | Next Part: B9507103C *Qty: 1 REAR DIFFERENTIAL CASE $2,890.60
Location: 12 Prev | Next Part: B9517242K *Qty: 2 0.05 mm ADJUSTMENT SHIM $15.82
Location: 12 Prev | Next Part: B9517242J *Qty: 2 0.1 mm ADJUSTMENT SHIM $16.70
Location: 12 Prev | Next Part: B9517242H *Qty: 2 0.2 mm ADJUSTMENT SHIM $13.20
Location: 12 Prev | Next Part: B9517242G *Qty: 2 0.3 mm ADJUSTMENT SHIM $24.60
Location: 12 Prev | Next Part: B9517242F *Qty: 2 0.5 MM ADJUSTMENT SHIM $47.65
Location: 13 Prev | Next Part: WHT002221 *Qty: 2 GASKET $21.96
Location: 14 Prev | Next Part: B9501312B *Qty: 2 FLANGE $577.79
Location: 15 Prev | Next Part: B9501660 *Qty: 2 BEARING $70.34
Location: 16 Prev | Next Part: B9525583 *Qty: 2 OIL SEAL $41.62
Location: 17 Prev | Next Part: B9501265 *Qty: 1 FLANGE $573.64
Location: 18 Prev | Next Part: B9507141 *Qty: 1 OIL BREATHER PIPE $54.19
Location: 19 Prev | Next Part: B9507145A *Qty: 1 COVER $520.90
Location: 20 Prev | Next Part: B9501144 *Qty: 1 SILENTBLOC $82.64
Location: 21 Prev | Next Part: 8101430 *Qty: 1 SCREW $3.39
Location: 22 Prev | Next Part: 86301141 *Qty: 2 MAGNETIC PLUG $13.56
Location: 23 Prev | Next Part: 8200801 *Qty: 10 NUT $0.90
Location: 25 Prev | Next Part: 8300809 *Qty: 10 STUD BOLT $8.18
Location: 26 Prev | Next Part: 8200801 *Qty: 16 NUT $0.90
Location: 28 Prev | Next Part: 8300825 *Qty: 16 STUD BOLT $11.06
Location: 29 Prev | Next Part: 8100613 *Qty: 3 SCREW $0.90
Location: 30 Prev | Next Part: 8410614 *Qty: 3 WASHER $0.90
Location: 31 Prev | Next Part: B9501716 *Qty: 1 SHEET $44.15
Location: 32 Prev | Next Part: 8201416 *Qty: 1 NUT $1.60
Location: 33 Prev | Next Part: 8100862 *Qty: 4 SCREW $0.90
Location: 34 Prev | Next Part: 8400816 *Qty: 4 WASHER $0.90
Location: 35 Prev | Next Part: 410813761 *Qty: 14 PLATE $10.71
Location: 36 Prev | Next Part: 410813297 *Qty: 2 SUPPORT $204.13

* Quantity shown indicates the number of pieces used in the diagram.
