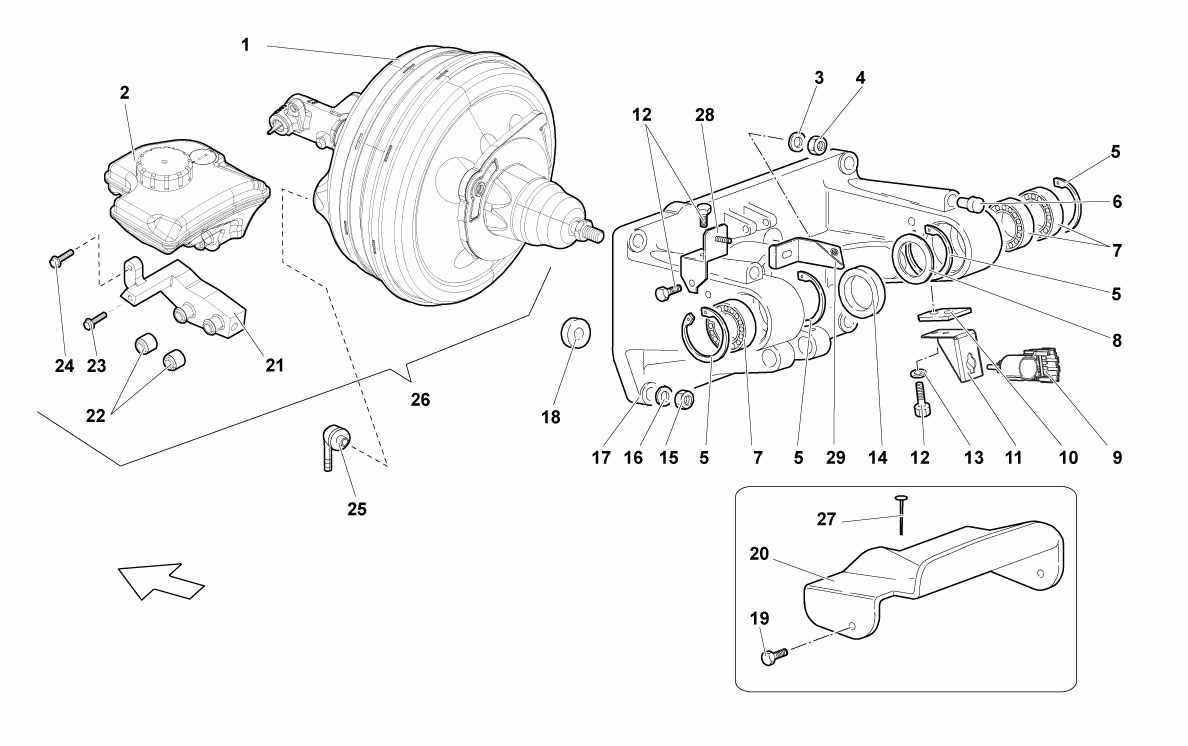

PEDAL SUPPORT

Go to Split View

PEDAL SUPPORT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: *Qty: 0 POWER BRAKE (CANNOT BE SOLD SEPARATELY - SEE REF. 26) Call
Location: 2 Prev | Next Part: 3D0611301B *Qty: 1 POWER BRAKE TANK $111.94
Location: 3 Prev | Next Part: N90179103 *Qty: 4 WASHER 18X8-4X2-5 $0.90
Location: 4 Prev | Next Part: N01118410 *Qty: 4 NUT $1.32
Location: 5 Prev | Next Part: 8573701 *Qty: 4 RETAINING RING $0.90
Location: 6 Prev | Next Part: 410721381 *Qty: 2 STOP $7.14
Location: 7 Prev | Next Part: 8502513 *Qty: 3 BEARING $36.83
Location: 8 Prev | Next Part: 8402507 *Qty: 1 WASHER $28.11
Location: 9 Prev | Next Part: 3B0945511B *Qty: 1 SWITCH $9.23
Location: 10 Prev | Next Part: 413721663 *Qty: 1 SPACER $8.96
Location: 11 Prev | Next Part: 410721633A *Qty: 1 SUPPORT $47.29
Location: 12 Prev | Next Part: 8700644 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 8400606 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 4230923 *Qty: 1 SPACER $28.80
Location: 15 Prev | Next Part: N01118410 *Qty: 4 NUT $1.32
Location: 16 Prev | Next Part: N90179103 *Qty: 4 WASHER 18X8-4X2-5 $0.90
Location: 17 Prev | Next Part: 413721117 *Qty: 1 PEDALS SUPPORT $617.34
Location: 18 Prev | Next Part: 410721134 *Qty: 4 SPACER $19.15
Location: 19 Prev | Next Part: 8700644 *Qty: 2 SCREW $0.90
Location: 20 Prev | Next Part: 413864777 *Qty: 1 COVER $49.22
Location: 21 Prev | Next Part: *Qty: 1 SUPPORT (CANNOT BE SOLD SEPARATELY - SEE REF. 26) Call
Location: 22 Prev | Next Part: 4A0611817A *Qty: 2 GASKET $9.34
Location: 23 Prev | Next Part: N90533002 *Qty: 1 SCREW $1.34
Location: 24 Prev | Next Part: N90638801 *Qty: 1 SCREW $0.90
Location: 25 Prev | Next Part: 400616807 *Qty: 1 CHECK VALVE $21.21
Location: 26 Prev | Next Part: 400612100A *Qty: 1 POWER BRAKE (COMPLETE) Call
Location: 27 Prev | Next Part: *Qty: 0 RIVET (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 28 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 29 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
