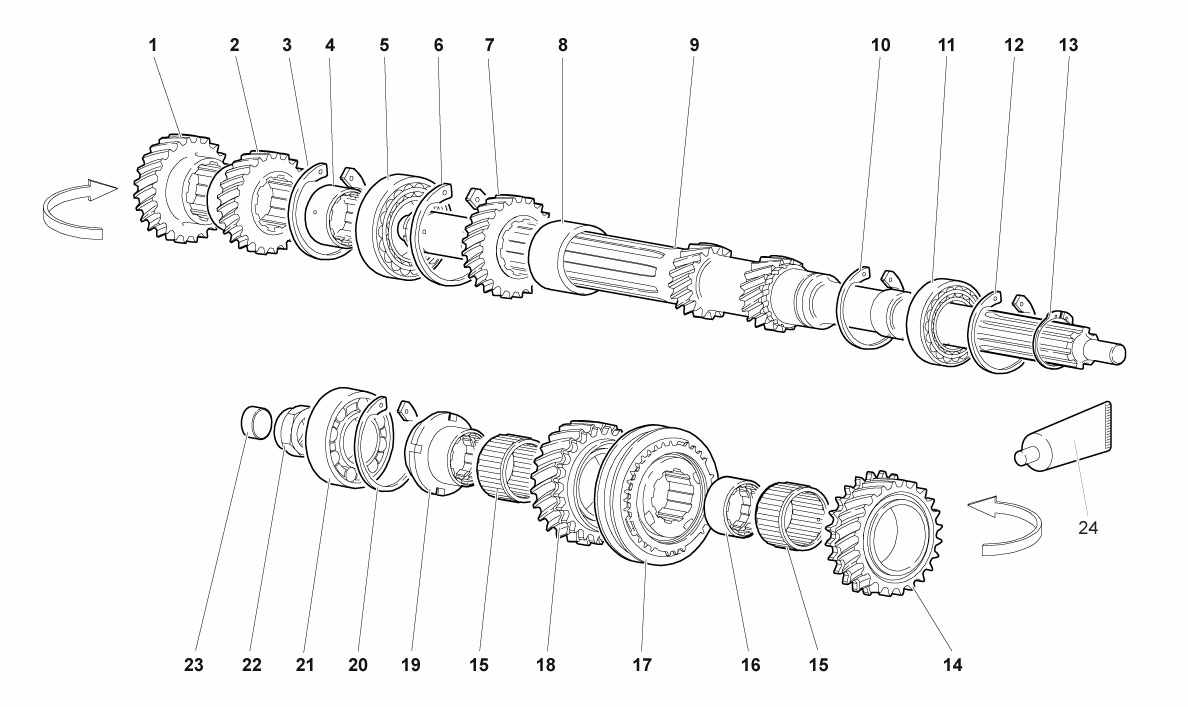

MAIN SHAFT

Go to Split View

MAIN SHAFT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86311149B *Qty: 1 FOURTH GEAR $498.48
Location: 2 Prev | Next Part: 86311131C *Qty: 1 THIRD GEAR $436.23
Location: 3 Prev | Next Part: WHT003584 *Qty: 1 SEAL RING $24.82
Location: 4 Prev | Next Part: 86311187B *Qty: 1 INNER RING $272.65
Location: 5 Prev | Next Part: 86301133 *Qty: 1 BEARING $93.26
Location: 6 Prev | Next Part: WHT003584 *Qty: 1 SEAL RING $24.82
Location: 7 Prev | Next Part: 86311261A *Qty: 1 SECOND GEAR $3,812.86
Location: 8 Prev | Next Part: 86311357A *Qty: 1 SPACER $160.46
Location: 9 Prev | Next Part: 86311105C *Qty: 1 MAIN SHAFT (To order together with the ref. 2 of the table 24.06.00) $1,729.74
Location: 10 Prev | Next Part: WHT002544 *Qty: 1 SEAL RING $22.36
Location: 11 Prev | Next Part: 86301897 *Qty: 1 BEARING $191.21
Location: 12 Prev | Next Part: WHT002544 *Qty: 1 SEAL RING $22.36
Location: 13 Prev | Next Part: 8583501 *Qty: 1 SEAL RING $0.90
Location: 14 Prev | Next Part: 86311361E *Qty: 1 FIFTH GEAR ASSEMBLY + CROWN GEAR $585.71
Location: 15 Prev | Next Part: 86311228A *Qty: 2 ROLLER CAGE $60.07
Location: 16 Prev | Next Part: 86301374A *Qty: 1 BUSHING $255.63
Location: 17 Prev | Next Part: 86311309B *Qty: 1 SYNCHRONIZING GEAR D.71/76 + CROWN GEAR $1,095.04
Location: 18 Prev | Next Part: 86311389C *Qty: 1 SIXTH GEAR ASSEMBLY WITH CROWN GEAR $598.12
Location: 19 Prev | Next Part: 24007182 *Qty: 1 INNER RING $404.86
Location: 20 Prev | Next Part: WHT003584 *Qty: 1 SEAL RING $24.82
Location: 21 Prev | Next Part: 86301845 *Qty: 1 BEARING $58.75
Location: 22 Prev | Next Part: 86301618 *Qty: 1 RING NUT $217.16
Location: 23 Prev | Next Part: 86311599 *Qty: 1 PLUG $21.18
Location: 24 Prev | Next Part: 900000130 *Qty: 1 GREASE $42.73

* Quantity shown indicates the number of pieces used in the diagram.
