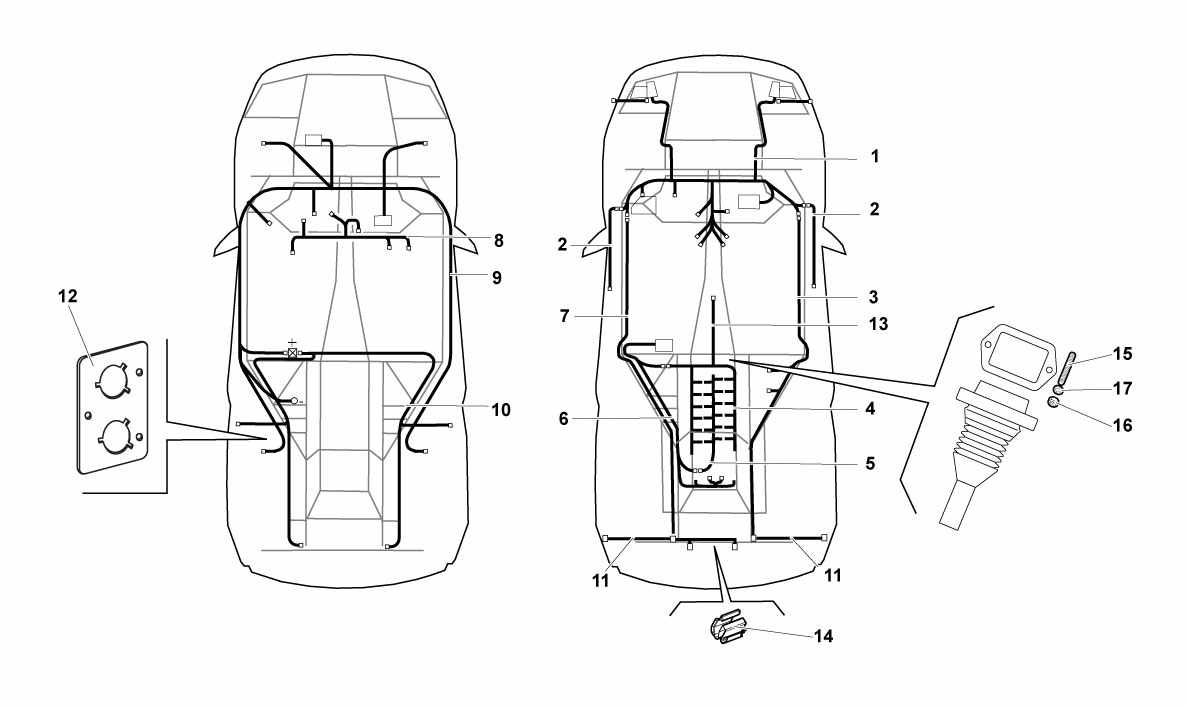

ELECTRICAL SYSTEM

Go to Split View

ELECTRICAL SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 417971135B *Qty: 1 CENTRAL WIRING HARNESS $1,905.16
Location: 2 Prev | Next Part: 417971035 *Qty: 2 DOOR WIRING HARNESS $339.22
Location: 3 Prev | Next Part: 410971174C *Qty: 1 RIGHT REAR WIRING HARNESS $207.91
Location: 4 Prev | Next Part: *Qty: 0 ENGINE-IGNITION WIRING (SEE TABLE 16.01.00 - SEE REF. 3) Call
Location: 5 Prev | Next Part: *Qty: 0 ENGINE-INJECTION WIRING (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 6 Prev | Next Part: 410907557A *Qty: 1 INJECTION WIRING HARNESS $4,148.44
Location: 7 Prev | Next Part: *Qty: 0 LEFT REAR WIRING HARNESS (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 8 Prev | Next Part: 410971581 *Qty: 1 AIRBAG WIRING HARNESS $378.34
Location: 9 Prev | Next Part: *Qty: 0 ABS WIRING HARNESS (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 10 Prev | Next Part: *Qty: 0 PMC CONTROL UNIT WIRING HARNESS (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 11 Prev | Next Part: 61007935 *Qty: 2 SIDE MARKER WIRING HARNESS (USA) $71.63
Location: 12 Prev | Next Part: 410971303 *Qty: 1 INJECTION WIRING HARNESS $25.05
Location: 13 Prev | Next Part: 410971771A *Qty: 1 E-GEAR WIRING $1,262.04
Location: 14 Prev | Next Part: 8830302 *Qty: 4 CLAMP $4.09
Location: 15 Prev | Next Part: N0443954 *Qty: 2 STUD BOLT M6X30.0 (E-GEAR) $0.90
Location: 16 Prev | Next Part: N01118312 *Qty: 2 NUT M6 (E-GEAR) $0.90
Location: 17 Prev | Next Part: WHT002961 *Qty: 2 WASHER (E-GEAR) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
