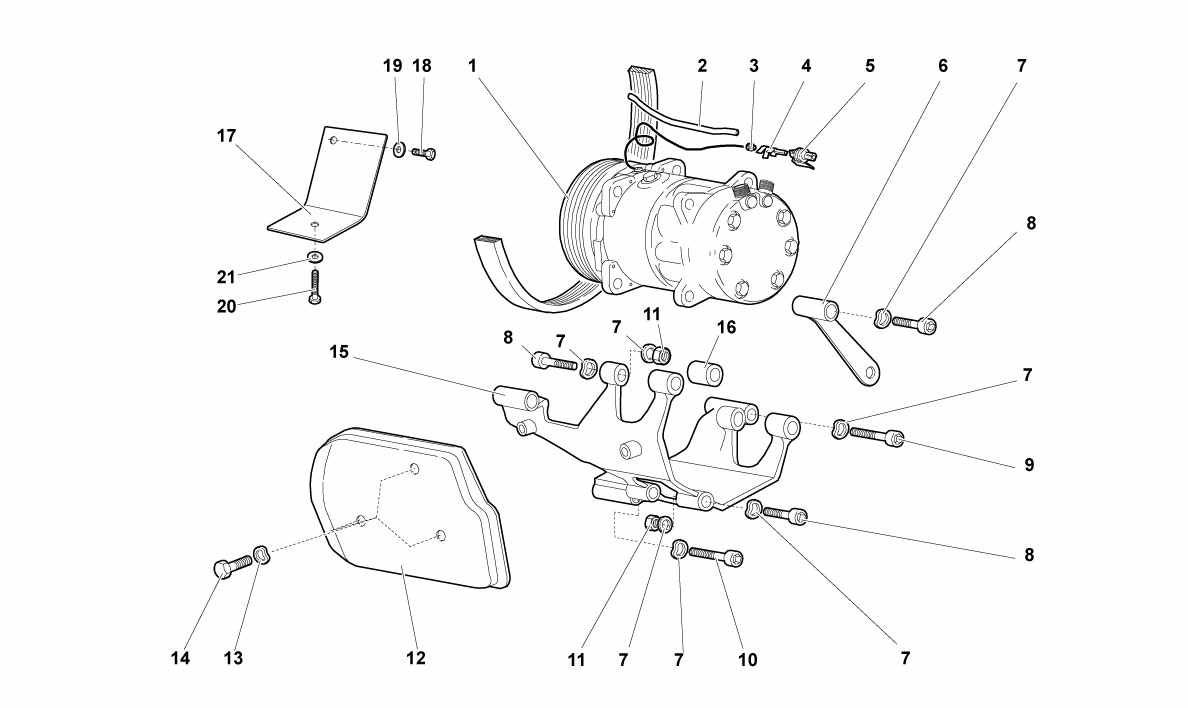

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 410260805A *Qty: 1 COMPRESSOR $2,975.89
Location: 2 Prev | Next Part: 410260193 *Qty: 1 SHEATH $3.24
Location: 3 Prev | Next Part: 410971919 *Qty: 1 RUBBER $0.90
Location: 4 Prev | Next Part: 410971996 *Qty: 1 TAB $0.90
Location: 5 Prev | Next Part: 410971833 *Qty: 1 CONNECTION $2.12
Location: 6 Prev | Next Part: *Qty: 0 STRUT (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 7 Prev | Next Part: WHT000768 *Qty: 8 WASHER $0.90
Location: 8 Prev | Next Part: 8701020 *Qty: 8 SCREW $1.17
Location: 9 Prev | Next Part: 8701026 *Qty: 2 SCREW $1.67
Location: 10 Prev | Next Part: 8701032 *Qty: 1 SCREW $6.42
Location: 11 Prev | Next Part: 8201008 *Qty: 5 NUT $0.90
Location: 12 Prev | Next Part: *Qty: 0 PROTECTION (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 13 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 14 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 15 Prev | Next Part: 7M145169A *Qty: 1 BRACKET (FROM VIN 5LA01545) $808.14
Location: 16 Prev | Next Part: 45014832 *Qty: 1 SPACER (FROM VIN 5LA01545) $26.21
Location: 17 Prev | Next Part: 410260963 *Qty: 1 PANEL (FROM VIN 5LA01545) $223.17
Location: 18 Prev | Next Part: 8100826 *Qty: 1 SCREW (FROM VIN 5LA01545) $0.90
Location: 19 Prev | Next Part: WHT000771 *Qty: 1 WASHER (FROM VIN 5LA01545) $0.91
Location: 20 Prev | Next Part: 8100876 *Qty: 1 SCREW (FROM VIN 5LA01545) $0.90
Location: 21 Prev | Next Part: WHT000771 *Qty: 1 WASHER (FROM VIN 5LA01545) $0.91

* Quantity shown indicates the number of pieces used in the diagram.
