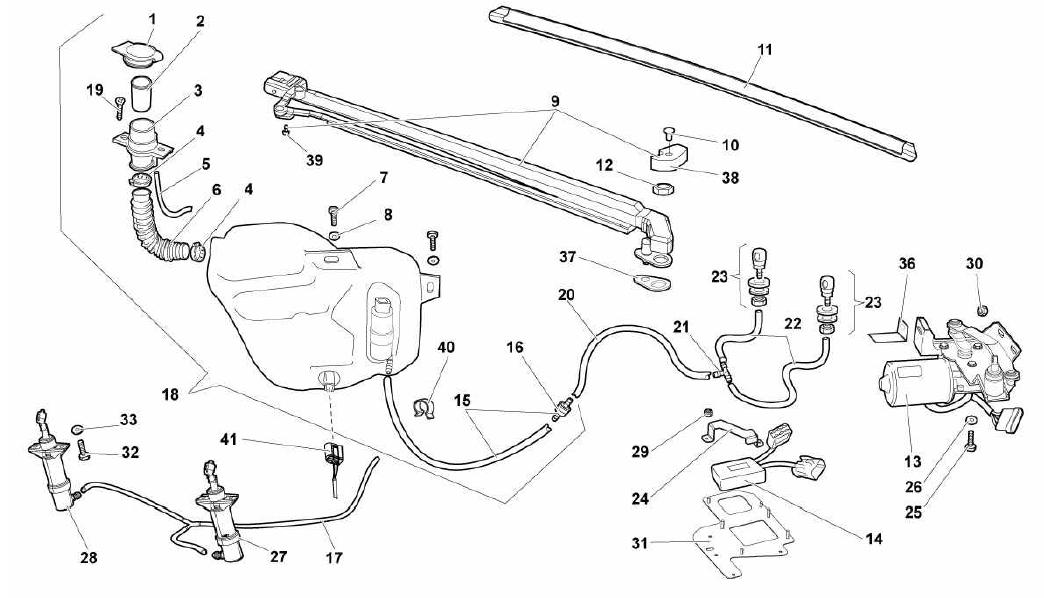

WINDSHIELD WIPER

Go to Split View

WINDSHIELD WIPER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400955277 *Qty: 1 PLUG $5.37
Location: 2 Prev | Next Part: 8N0955485 *Qty: 1 FILTER $7.11
Location: 3 Prev | Next Part: 400955459 *Qty: 1 HEADLIGHT WIPER/WASHER RESERVOIR PLUG HOLDER $17.01
Location: 4 Prev | Next Part: 400955973 *Qty: 2 CLAMP $10.22
Location: 5 Prev | Next Part: 400955197 *Qty: 1 BREATHER PIPE $2.08
Location: 6 Prev | Next Part: 400955944 *Qty: 1 PIPE $67.89
Location: 7 Prev | Next Part: N10718801 *Qty: 2 SCREW M6X16 $0.90
Location: 8 Prev | Next Part: WHT002961 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 417955703 *Qty: 1 WIPER ARM ASSEMBLY $1,371.07
Location: 10 Prev | Next Part: WHT003302 *Qty: 1 SCREW M4X8 $1.39
Location: 11 Prev | Next Part: 401955425C *Qty: 1 WINDSCREEN WIPER Call
Location: 12 Prev | Next Part: WHT003571 *Qty: 1 NUT $21.96
Location: 13 Prev | Next Part: 417955023 *Qty: 1 LINKAGE GEARMOTOR ASSEMBLY $883.47
Location: 14 Prev | Next Part: 410906015A *Qty: 1 WINDSCREEN WIPER TIMER $419.56
Location: 15 Prev | Next Part: 400955964 *Qty: 1 PIPE/CHECK VALVE $20.88
Location: 16 Prev | Next Part: 113955975C *Qty: 1 CHECK VALVE $9.76
Location: 17 Prev | Next Part: 410955175 *Qty: 1 PIPES/CONNECTORS SET FOR HEADLIGHT WASHERS $130.35
Location: 18 Prev | Next Part: 400955448 *Qty: 1 WASHER RESERVOIR ASSEMBLY $238.30
Location: 19 Prev | Next Part: WHT003563 *Qty: 2 SCREW M6X14 $2.17
Location: 20 Prev | Next Part: 410955972 *Qty: 1 PIPE $18.80
Location: 21 Prev | Next Part: 7L133579 *Qty: 1 CONNECTOR $1.11
Location: 22 Prev | Next Part: 410955963 *Qty: 2 PIPE $17.96
Location: 23 Prev | Next Part: 400955985 *Qty: 2 UGELLO $4.48
Location: 24 Prev | Next Part: 410955931A *Qty: 1 BRACKET $37.95
Location: 25 Prev | Next Part: N90319404 *Qty: 3 SCREW M6X12 $1.27
Location: 26 Prev | Next Part: WHT002961 *Qty: 3 WASHER $0.90
Location: 27 Prev | Next Part: 410955985 *Qty: 1 LH HEADLIGHT WASHER ASSEMBLY $143.72
Location: 29 Prev | Next Part: N01508213 *Qty: 2 NUT M6 $0.90
Location: 30 Prev | Next Part: N01508213 *Qty: 2 NUT M6 $0.90
Location: 31 Prev | Next Part: *Qty: 1 BRACKET (SEE TABLE 971.02.00) Call
Location: 32 Prev | Next Part: WHT003069 *Qty: 4 SCREW M6X1X20 $3.06
Location: 33 Prev | Next Part: WHT002961 *Qty: 4 WASHER 6-5X18X1-5 $0.90
Location: 36 Prev | Next Part: 7L133031 *Qty: 1 BRACKET $17.16
Location: 37 Prev | Next Part: 413819687 *Qty: 1 COVER $8.77
Location: 38 Prev | Next Part: 413955127 *Qty: 1 COVER $17.01
Location: 39 Prev | Next Part: 417955437 *Qty: 1 PUFFER $3.41
Location: 40 Prev | Next Part: 477971851 *Qty: 2 CLAMP $0.90
Location: 41 Prev | Next Part: 7M0973202 *Qty: 1 CONNECTOR (SEE TABLE 971.01.00 - SEE REF. 1) $11.00

* Quantity shown indicates the number of pieces used in the diagram.
