TPMS SYSTEM

Go to Split View

TPMS SYSTEM

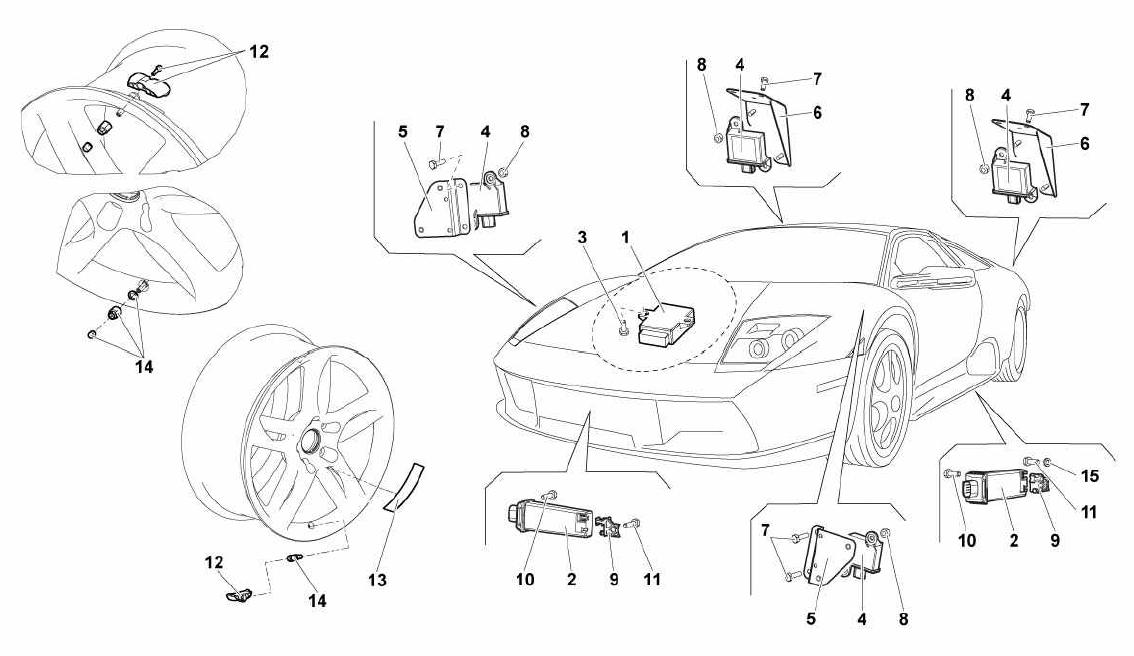

Location Part # Quantity* Description Price Add To Cart
1 410907273 1 TPMS CONTROL UNIT Unavailable
2 8E0907277 2 ANTENNA - 433 MHZ Unavailable
3 N10653201 2 SCREW M6X16 Unavailable
4 4F0907283 4 CONTROL UNIT (TRANSMITTING UNIT) Unavailable
5 410907731 2 BRACKET Unavailable
6 410907732 2 BRACKET Unavailable
7 N10653201 8 SCREW M6X16 Unavailable
8 N01508213 8 NUT M6 Unavailable
9 3W0907323 2 FASTENER Unavailable
10 N10703301 4 SCREW M5X35 Unavailable
11 N90991902 2 SCREW M6X16 Unavailable
12 4F0907275B 4 TPMS SENSOR Unavailable
13 400010502C 4 TPMS STICKER Unavailable
14 400601361B 2 VALVE 13 MM (FRONT) Unavailable
14 400601361A 2 VALVE 9 MM (REAR) Unavailable
15 N90009504 1 WASHER 8.40X17.0X4.00 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
