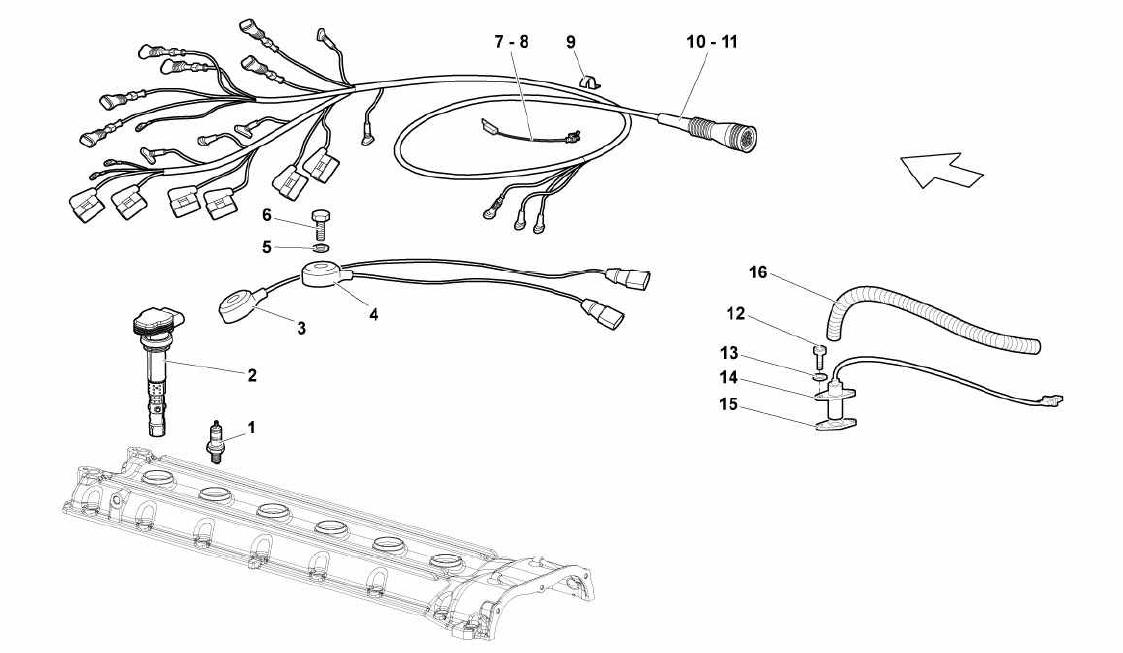

SYSTEM IGNITION

Go to Split View

SYSTEM IGNITION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 101905602 *Qty: 12 SPARK PLUG Superseded
Location: 2 Prev | Next Part: 7M905115B *Qty: 12 COIL $88.83
Location: 3 Prev | Next Part: 7M905377A *Qty: 2 SENSOR $102.24
Location: 4 Prev | Next Part: 7M905377 *Qty: 2 SENSOR $98.68
Location: 5 Prev | Next Part: WHT002962 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: N10518402 *Qty: 4 SCREW $13.39
Location: 7 Prev | Next Part: 400971164 *Qty: 1 WIRING HARNESS (WIRING HARNESS 1-6) $88.03
Location: 8 Prev | Next Part: 400971164 *Qty: 1 WIRING HARNESS (WIRING HARNESS 7-12) $88.03
Location: 9 Prev | Next Part: 410868630A *Qty: 4 SUPPORT $45.27
Location: 10 Prev | Next Part: 7M971087B *Qty: 1 WIRING HARNESS 1-6 $744.08
Location: 11 Prev | Next Part: 7M971088A *Qty: 1 WIRING HARNESS 7-12 $744.08
Location: 12 Prev | Next Part: N10648502 *Qty: 2 SCREW M5X10 $1.01
Location: 13 Prev | Next Part: N90247901 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 7M905381 *Qty: 1 FLYWHEEL TIMING SENSOR Call
Location: 15 Prev | Next Part: 7M103899A *Qty: 1 ADJUSTMENT SHIM (0-4 MM) $6.81
Location: 15 Prev | Next Part: 7M103899 *Qty: 1 ADJUSTMENT SHIM (0-2 MM) $4.25
Location: 16 Prev | Next Part: 7M905387 *Qty: 1 PROTECTION $0.90

* Quantity shown indicates the number of pieces used in the diagram.
