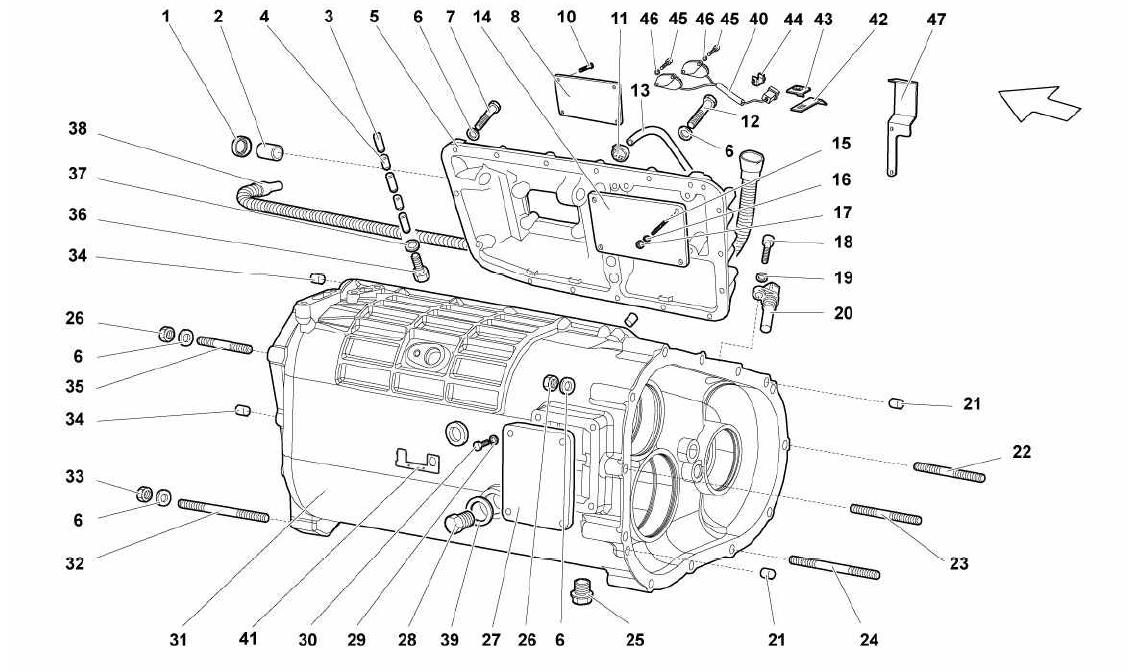

GEARBOX

Go to Split View

GEARBOX

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86311520 *Qty: 1 SEAL RING $16.17
Location: 2 Prev | Next Part: 86311621 *Qty: 1 BUSHING $21.20
Location: 3 Prev | Next Part: 86311281A *Qty: 3 PAWL $35.75
Location: 4 Prev | Next Part: 86311281B *Qty: 2 PAWL $35.75
Location: 5 Prev | Next Part: 86301201C *Qty: 1 COVER (E-GEAR) $1,057.55
Location: 5 Prev | Next Part: 86301201B *Qty: 1 COVER (MANUAL GEARBOX) $1,230.19
Location: 6 Prev | Next Part: WHT000771 *Qty: 18 WASHER $0.91
Location: 7 Prev | Next Part: N01033912 *Qty: 6 SCREW M6X40 $0.90
Location: 8 Prev | Next Part: 86301465 *Qty: 1 COVER (MANUAL GEARBOX) $82.76
Location: 8 Prev | Next Part: 86301465A *Qty: 1 COVER (E-GEAR) $48.38
Location: 10 Prev | Next Part: N10653201 *Qty: 4 SCREW M6X16 $0.90
Location: 11 Prev | Next Part: 400127217 *Qty: 1 CLAMP $0.90
Location: 12 Prev | Next Part: N01022217 *Qty: 12 SCREW $5.56
Location: 13 Prev | Next Part: 86301472 *Qty: 1 BREATHER PIPE $33.85
Location: 14 Prev | Next Part: 86301827 *Qty: 1 COVER $46.45
Location: 15 Prev | Next Part: WHT002943 *Qty: 4 STUD BOLT $11.92
Location: 16 Prev | Next Part: WHT001197A *Qty: 4 WASHER $0.90
Location: 17 Prev | Next Part: WHT002953 *Qty: 4 NUT M6 $2.70
Location: 18 Prev | Next Part: N0147035 *Qty: 2 SCREW $0.90
Location: 19 Prev | Next Part: WHT001197A *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: 86927321 *Qty: 2 TIMING SENSOR $94.65
Location: 21 Prev | Next Part: WHT003078 *Qty: 2 DOWEL $13.28
Location: 22 Prev | Next Part: WHT003166 *Qty: 1 STUD BOLT $9.67
Location: 23 Prev | Next Part: WHT002944 *Qty: 1 STUD BOLT $12.93
Location: 24 Prev | Next Part: WHT002946 *Qty: 10 STUD BOLT $8.52
Location: 25 Prev | Next Part: 86301141 *Qty: 1 MAGNETIC PLUG $13.56
Location: 26 Prev | Next Part: N01100845 *Qty: 7 NUT $0.90
Location: 27 Prev | Next Part: 86301173 *Qty: 1 COVER $82.76
Location: 28 Prev | Next Part: 86301141 *Qty: 1 MAGNETIC PLUG $13.56
Location: 29 Prev | Next Part: WHT001197A *Qty: 4 WASHER $0.90
Location: 30 Prev | Next Part: N01021626 *Qty: 4 SCREW $7.31
Location: 31 Prev | Next Part: 86301103F *Qty: 1 6-GEAR MANUAL TRANSMISSION CASE $3,499.62
Location: 32 Prev | Next Part: WHT002944 *Qty: 1 STUD BOLT $12.93
Location: 33 Prev | Next Part: N90226404 *Qty: 1 NUT $0.90
Location: 34 Prev | Next Part: WHT003078 *Qty: 2 DOWEL $13.28
Location: 35 Prev | Next Part: WHT003167 *Qty: 8 STUD BOLT $8.17
Location: 36 Prev | Next Part: N01029315 *Qty: 1 SCREW $0.90
Location: 37 Prev | Next Part: N0138302 *Qty: 1 WASHER $0.90
Location: 38 Prev | Next Part: 410971771G *Qty: 1 WIRING HARNESS (MANUAL GEARBOX) $35.91
Location: 39 Prev | Next Part: N0138271 *Qty: 1 GASKET $1.16
Location: 40 Prev | Next Part: 86927321A *Qty: 1 E-GEAR SENSOR $903.10
Location: 41 Prev | Next Part: 400326138 *Qty: 1 SUPPORT $7.51
Location: 42 Prev | Next Part: 400971890D *Qty: 1 BRACKET $20.14
Location: 43 Prev | Next Part: 1J0937510A *Qty: 1 SUPPORT $2.48
Location: 44 Prev | Next Part: 410868630A *Qty: 2 BRACKET $45.27
Location: 45 Prev | Next Part: N10662102 *Qty: 4 SCREW $9.71
Location: 46 Prev | Next Part: N0115557 *Qty: 4 WASHER $37.44
Location: 47 Prev | Next Part: 86301327A *Qty: 1 PROTECTION (E-GEAR) $28.46

* Quantity shown indicates the number of pieces used in the diagram.
