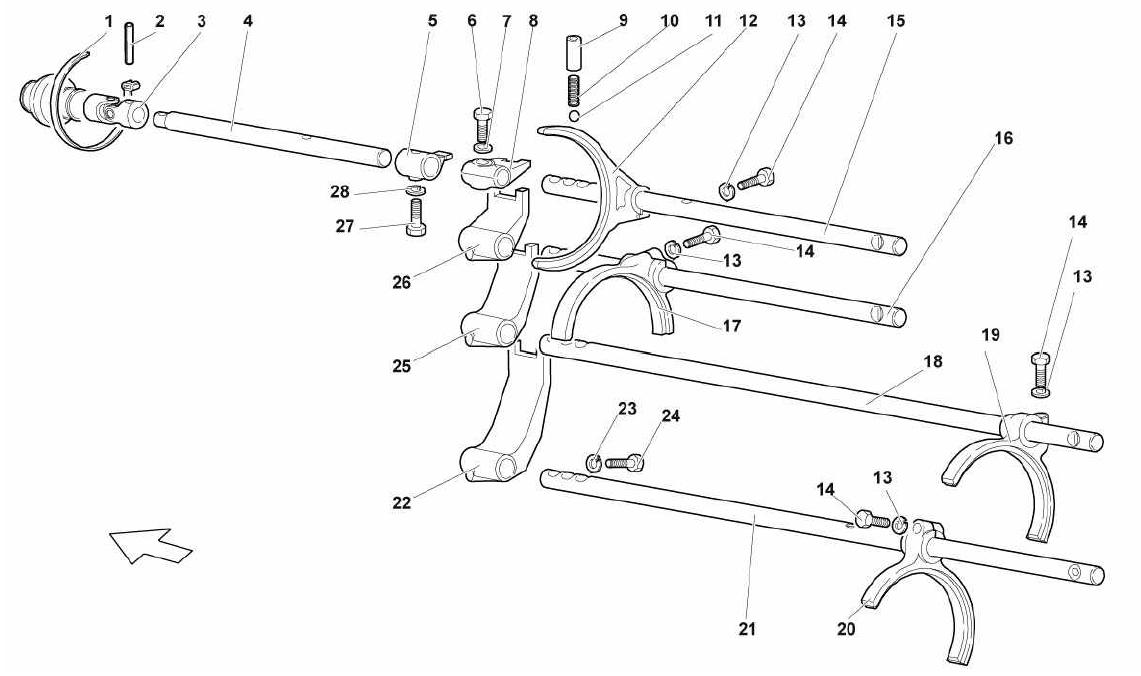

GEARBOX SHIFTING RODS AND FORKS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8830305 *Qty: 2 CLAMP $0.90
Location: 2 Prev | Next Part: N0133481 *Qty: 1 PIN $0.90
Location: 3 Prev | Next Part: 410711615 *Qty: 1 RH JOINT $361.19
Location: 4 Prev | Next Part: 86311543C *Qty: 1 GEAR LEVER (E-GEAR) $530.81
Location: 4 Prev | Next Part: 86311543B *Qty: 1 GEAR LEVER (MANUAL GEARBOX) $199.41
Location: 5 Prev | Next Part: 86311998A *Qty: 1 TOOTH (E-GEAR) $244.06
Location: 5 Prev | Next Part: 86311998 *Qty: 1 TOOTH (MANUAL GEARBOX) $176.38
Location: 6 Prev | Next Part: WHT002952 *Qty: 3 SCREW $3.80
Location: 7 Prev | Next Part: 86311519 *Qty: 3 WASHER $1.84
Location: 8 Prev | Next Part: 86311111A *Qty: 1 TOOTH (E-GEAR - 5?-6?) $233.31
Location: 8 Prev | Next Part: 86311111 *Qty: 1 TOOTH (MANUAL GEARBOX - 5?-6?) $173.35
Location: 9 Prev | Next Part: 86311511A *Qty: 4 BUSHING $22.47
Location: 10 Prev | Next Part: 86311249 *Qty: 4 SPRING $3.95
Location: 11 Prev | Next Part: N10439201 *Qty: 4 BALL $0.90
Location: 12 Prev | Next Part: 86311564B *Qty: 1 FORK (5?-6?) $586.07
Location: 13 Prev | Next Part: WHT002955 *Qty: 4 WASHER $0.90
Location: 14 Prev | Next Part: WHT002958 *Qty: 4 SCREW $10.85
Location: 15 Prev | Next Part: 86311700B *Qty: 1 FIFTH-SIXTH GEAR LEVER $313.65
Location: 16 Prev | Next Part: 86311567 *Qty: 1 THIRD-FOURTH GEAR LEVER $313.65
Location: 17 Prev | Next Part: 86311561C *Qty: 1 FORK (3?-4?) $586.07
Location: 18 Prev | Next Part: 86311557 *Qty: 1 FIRST-SECOND GEAR LEVER $313.65
Location: 19 Prev | Next Part: 86311551B *Qty: 1 FORK (1?-2?) $490.46
Location: 20 Prev | Next Part: 86311571B *Qty: 1 FORK (REVERSE GEAR) $520.08
Location: 21 Prev | Next Part: 86311823C *Qty: 1 REVERSE GEAR CONTROL ROD $313.65
Location: 22 Prev | Next Part: 86311107C *Qty: 1 TOOTH (E-GEAR - REVERSE GEAR) $319.69
Location: 22 Prev | Next Part: 86311107B *Qty: 1 TOOTH (MANUAL GEARBOX - REVERSE GEAR) $242.35
Location: 23 Prev | Next Part: 86311443 *Qty: 1 WASHER $11.67
Location: 25 Prev | Next Part: 86311785A *Qty: 1 TOOTH (E-GEAR - 1?-2?) $269.03
Location: 25 Prev | Next Part: 86311785 *Qty: 1 TOOTH (MANUAL GEARBOX - 1?-2?) $221.12
Location: 26 Prev | Next Part: 86311771A *Qty: 1 TOOTH (E-GEAR - 3?-4?) $249.48
Location: 26 Prev | Next Part: 86311771 *Qty: 1 TOOTH (MANUAL GEARBOX - 3?-4?) $201.46
Location: 27 Prev | Next Part: WHT002950 *Qty: 1 SCREW $40.86
Location: 28 Prev | Next Part: WHT001197A *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
