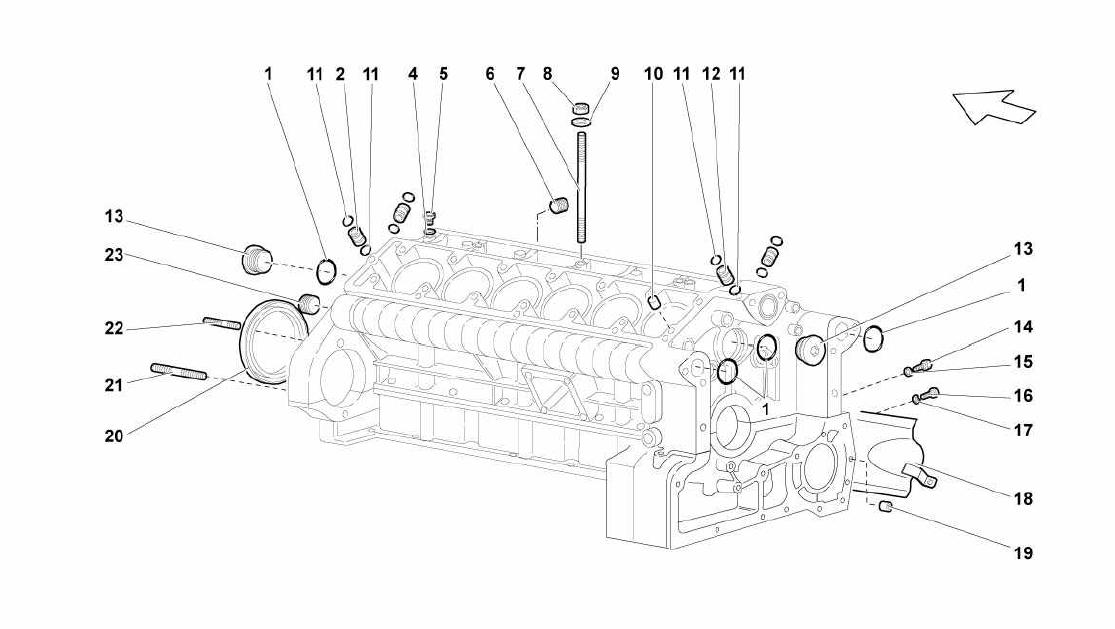

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: WHT002159 *Qty: 5 SEAL RING $3.51
Location: 2 Prev | Next Part: 7M103396 *Qty: 2 DOWEL $32.00
Location: 4 Prev | Next Part: N0138492 *Qty: 1 WASHER $0.90
Location: 5 Prev | Next Part: N0160276 *Qty: 1 PLUG $3.39
Location: 6 Prev | Next Part: 7M103545 *Qty: 1 PLUG $2.08
Location: 7 Prev | Next Part: WHT001691 *Qty: 3 STUD BOLT $12.25
Location: 8 Prev | Next Part: N01118410 *Qty: 3 NUT $1.32
Location: 9 Prev | Next Part: N90179103 *Qty: 3 WASHER 18X8-4X2-5 $0.90
Location: 10 Prev | Next Part: WHT003077 *Qty: 2 DOWEL $5.97
Location: 11 Prev | Next Part: WHT003057 *Qty: 8 SEAL RING $0.90
Location: 12 Prev | Next Part: 7M103139 *Qty: 2 DOWEL $26.56
Location: 13 Prev | Next Part: 7M103485A *Qty: 2 PLUG $38.97
Location: 14 Prev | Next Part: N10650701 *Qty: 1 SCREW $0.90
Location: 15 Prev | Next Part: WHT003041 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: N91143901 *Qty: 1 SCREW $0.90
Location: 17 Prev | Next Part: WHT000771 *Qty: 1 WASHER $0.91
Location: 18 Prev | Next Part: 7M103750 *Qty: 1 PROTECTION $417.49
Location: 19 Prev | Next Part: WHT003098 *Qty: 1 DOWEL $23.17
Location: 20 Prev | Next Part: 7M103089 *Qty: 1 SEAL RING $88.07
Location: 21 Prev | Next Part: WHT003027 *Qty: 3 STUD BOLT $7.13
Location: 22 Prev | Next Part: 8300809 *Qty: 2 STUD BOLT $8.18
Location: 23 Prev | Next Part: 7M103801B *Qty: 2 PLUG $117.35

* Quantity shown indicates the number of pieces used in the diagram.
