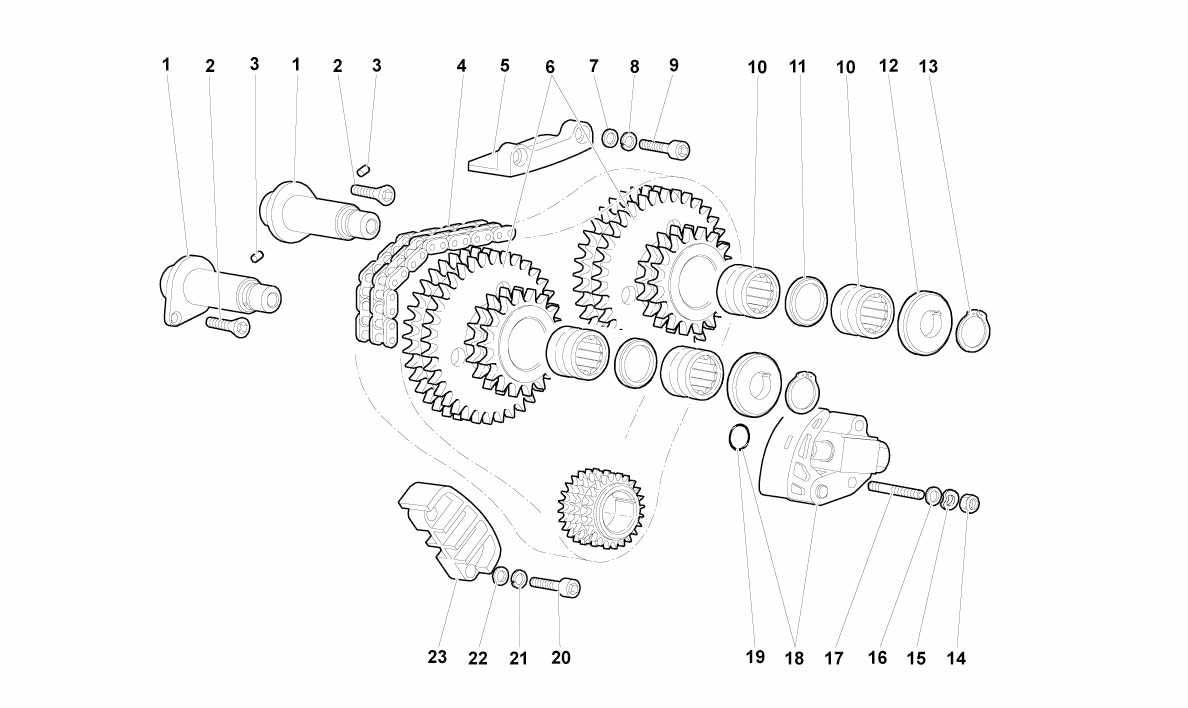

TIMING SYSTEM

Go to Split View

TIMING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7M109225 *Qty: 2 JOURNAL $190.62
Location: 2 Prev | Next Part: 8700638 *Qty: 2 SCREW $0.90
Location: 3 Prev | Next Part: WHT003082 *Qty: 2 DOWEL $0.90
Location: 4 Prev | Next Part: 7M109229 *Qty: 1 LOWER TIMING CHAIN $109.41
Location: 5 Prev | Next Part: 7M109201 *Qty: 1 GUIDE $46.30
Location: 6 Prev | Next Part: 7M109569 *Qty: 2 GEAR $1,405.48
Location: 7 Prev | Next Part: WHT003543 *Qty: 2 WASHER $9.36
Location: 8 Prev | Next Part: 8410820 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: WHT003072 *Qty: 2 SCREW $4.66
Location: 10 Prev | Next Part: 410109403 *Qty: 4 BEARING $52.85
Location: 11 Prev | Next Part: 7M109135 *Qty: 2 SPACER $168.89
Location: 12 Prev | Next Part: 7M109163 *Qty: 2 WASHER $63.94
Location: 13 Prev | Next Part: 8581801 *Qty: 2 RETAINING RING $0.90
Location: 14 Prev | Next Part: 8200604 *Qty: 2 NUT $0.90
Location: 15 Prev | Next Part: WHT001197 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 8400606 *Qty: 2 WASHER $0.90
Location: 17 Prev | Next Part: 8300660 *Qty: 2 STUD BOLT $14.10
Location: 18 Prev | Next Part: 7M109077 *Qty: 1 CHAIN TIGHTENER WITH SEAL RING $660.26
Location: 19 Prev | Next Part: WHT003060 *Qty: 1 SEAL RING $1.19
Location: 20 Prev | Next Part: WHT003071 *Qty: 2 SCREW $5.34
Location: 21 Prev | Next Part: 8410820 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 8400816 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 7M109203 *Qty: 1 GUIDE $40.30

* Quantity shown indicates the number of pieces used in the diagram.
