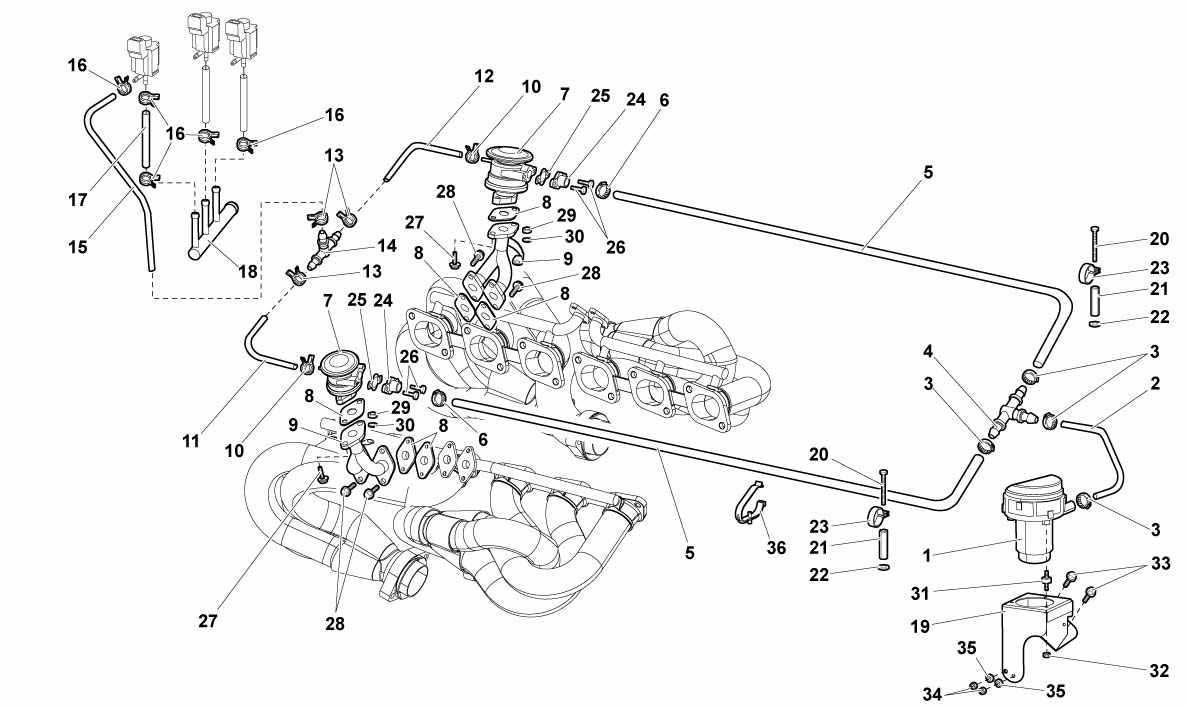

SECONDARY AIR SYSTEM

Go to Split View

SECONDARY AIR SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 78906601F *Qty: 1 PUMP $621.72
Location: 2 Prev | Next Part: 7M131371B *Qty: 1 PIPE $418.83
Location: 3 Prev | Next Part: N10255601 *Qty: 4 CLAMP $1.41
Location: 4 Prev | Next Part: 7M131598 *Qty: 1 CONNECTOR $120.64
Location: 5 Prev | Next Part: 7M131385 *Qty: 2 PIPE $382.80
Location: 6 Prev | Next Part: N10255601 *Qty: 2 CLAMP $1.41
Location: 7 Prev | Next Part: 78131102L *Qty: 2 PNEUMATIC VALVE $114.01
Location: 8 Prev | Next Part: 7L131354 *Qty: 6 GASKET $8.66
Location: 9 Prev | Next Part: 7M131381 *Qty: 2 CONNECTOR $530.08
Location: 10 Prev | Next Part: 8830122 *Qty: 2 CLAMP $0.90
Location: 11 Prev | Next Part: 7M131375 *Qty: 1 PIPE $88.89
Location: 12 Prev | Next Part: 7M131377 *Qty: 1 PIPE $79.38
Location: 13 Prev | Next Part: 8830122 *Qty: 3 CLAMP $0.90
Location: 14 Prev | Next Part: 7L133579 *Qty: 1 CONNECTOR $1.11
Location: 15 Prev | Next Part: 7M131493 *Qty: 1 PIPE $25.48
Location: 16 Prev | Next Part: 8830122 *Qty: 5 CLAMP $0.90
Location: 17 Prev | Next Part: 7M131492 *Qty: 1 PIPE $31.75
Location: 18 Prev | Next Part: 7M131585A *Qty: 1 CONNECTOR $114.60
Location: 19 Prev | Next Part: 418131035 *Qty: 1 BRACKET $165.37
Location: 20 Prev | Next Part: N10718801 *Qty: 2 SCREW M6X16 $0.90
Location: 21 Prev | Next Part: 400972895 *Qty: 2 SPACER $24.06
Location: 22 Prev | Next Part: WHT001197 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 8832005 *Qty: 2 CLAMP $7.75
Location: 24 Prev | Next Part: 7L131585 *Qty: 2 PIPE FITTING $78.48
Location: 25 Prev | Next Part: 7L131358 *Qty: 2 GASKET $8.66
Location: 26 Prev | Next Part: N10338901 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: N10338901 *Qty: 4 SCREW $0.90
Location: 28 Prev | Next Part: N10338901 *Qty: 8 SCREW $0.90
Location: 29 Prev | Next Part: N01118312 *Qty: 2 NUT M6 $0.90
Location: 30 Prev | Next Part: 8400606 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 400972081A *Qty: 3 FLEXIBLE SUPPORT $10.00
Location: 32 Prev | Next Part: 8200614 *Qty: 3 NUT $0.90
Location: 33 Prev | Next Part: 8100913 *Qty: 2 SCREW $1.32
Location: 34 Prev | Next Part: 8200614 *Qty: 2 NUT $0.90
Location: 35 Prev | Next Part: 8400607 *Qty: 2 WASHER $0.90
Location: 36 Prev | Next Part: 8834502 *Qty: 1 CLAMP $1.14

* Quantity shown indicates the number of pieces used in the diagram.
