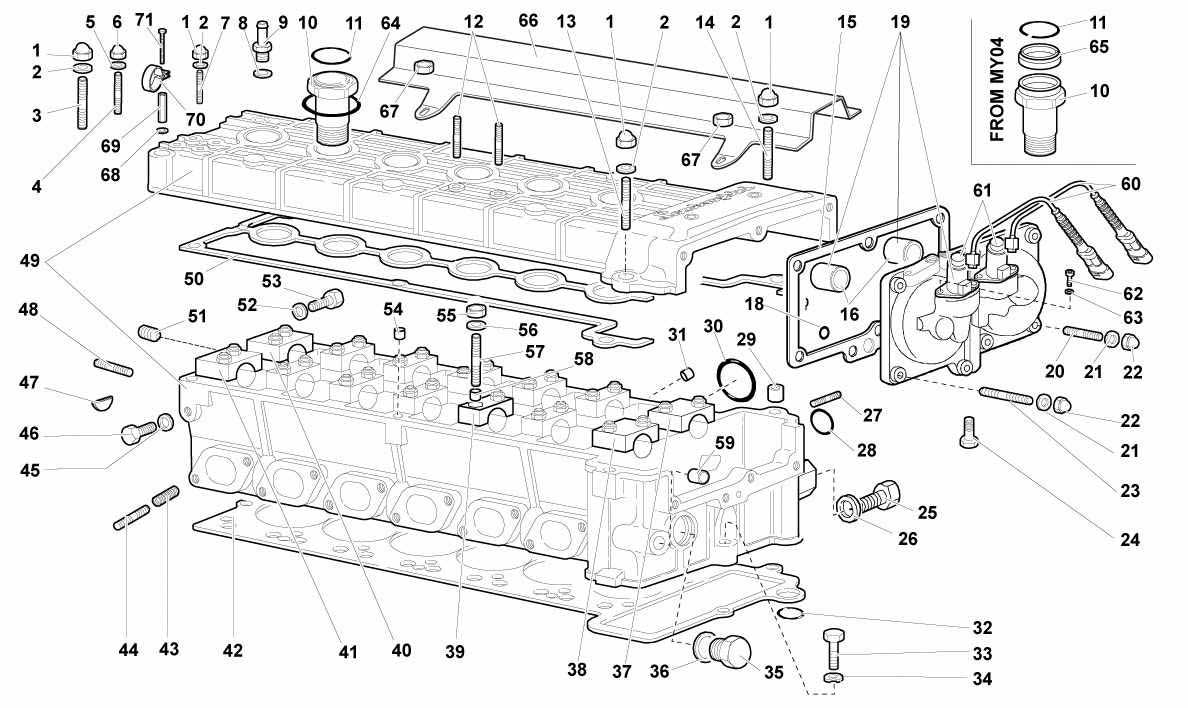

RIGHT CYLINDER HEAD

Go to Split View

RIGHT CYLINDER HEAD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8200605 *Qty: 5 NUT $0.90
Location: 2 Prev | Next Part: WHT001197 *Qty: 5 WASHER $0.90
Location: 3 Prev | Next Part: 8300649 *Qty: 2 STUD BOLT $9.37
Location: 4 Prev | Next Part: 8300613 *Qty: 4 STUD BOLT $4.71
Location: 5 Prev | Next Part: 8400606 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: N01118312 *Qty: 4 NUT M6 $0.90
Location: 7 Prev | Next Part: 8300650 *Qty: 1 STUD BOLT $11.93
Location: 8 Prev | Next Part: 8401408 *Qty: 1 WASHER $0.90
Location: 9 Prev | Next Part: 7L103606A *Qty: 1 CONNECTOR $36.01
Location: 10 Prev | Next Part: 7M103635 *Qty: 6 HEAD COVER FIXING UNION $175.37
Location: 11 Prev | Next Part: 7M103196 *Qty: 6 SEAL RING $3.41
Location: 12 Prev | Next Part: 8300613 *Qty: 2 STUD BOLT $4.71
Location: 13 Prev | Next Part: 8300651 *Qty: 1 STUD BOLT $11.75
Location: 14 Prev | Next Part: 8300637 *Qty: 1 STUD BOLT $14.31
Location: 15 Prev | Next Part: 7M109092 *Qty: 1 GASKET $28.94
Location: 16 Prev | Next Part: *Qty: 2 BUSHING (CANNOT BE SOLD SEPARATELY - SEE REF. 19) Call
Location: 18 Prev | Next Part: 8600905 *Qty: 1 SEAL RING $9.37
Location: 19 Prev | Next Part: 7M109144A *Qty: 1 RH HEAD PHASE TRANSFORMER COVER ASSEMBLY $2,585.29
Location: 20 Prev | Next Part: 8300809 *Qty: 5 STUD BOLT $8.18
Location: 21 Prev | Next Part: WHT000771 *Qty: 7 WASHER $0.91
Location: 22 Prev | Next Part: 8200816 *Qty: 7 NUT $1.01
Location: 23 Prev | Next Part: 8300826 *Qty: 2 STUD BOLT $8.93
Location: 24 Prev | Next Part: 8700852 *Qty: 1 SCREW $0.90
Location: 25 Prev | Next Part: 8100839 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: N0138302 *Qty: 2 WASHER $0.90
Location: 27 Prev | Next Part: 8300665 *Qty: 1 STUD BOLT $8.17
Location: 28 Prev | Next Part: 8603503 *Qty: 1 SEAL RING $3.57
Location: 29 Prev | Next Part: WHT003019 *Qty: 2 BUSHING $9.52
Location: 30 Prev | Next Part: 8604703 *Qty: 6 SEAL RING $8.01
Location: 31 Prev | Next Part: 1122089 *Qty: 2 DOWEL $16.87
Location: 32 Prev | Next Part: WHT003522 *Qty: 1 SEAL RING $3.24
Location: 33 Prev | Next Part: 8100834 *Qty: 2 SCREW $0.90
Location: 34 Prev | Next Part: WHT001197 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 7M103035 *Qty: 1 PLUG $49.04
Location: 36 Prev | Next Part: WHT003049 *Qty: 1 WASHER $4.50
Location: 37 Prev | Next Part: 7M103286A *Qty: 1 SUPPORT $138.13
Location: 38 Prev | Next Part: 7M103286 *Qty: 1 SUPPORT $168.89
Location: 39 Prev | Next Part: 7M103127 *Qty: 10 SUPPORT $54.25
Location: 40 Prev | Next Part: 7M103307A *Qty: 1 SUPPORT $114.60
Location: 41 Prev | Next Part: 7M103307 *Qty: 1 SUPPORT $114.60
Location: 42 Prev | Next Part: 7M103148 *Qty: 1 RH GASKET $422.24
Location: 43 Prev | Next Part: 8840802 *Qty: 12 HELI-COIL $3.04
Location: 44 Prev | Next Part: 8300809 *Qty: 12 STUD BOLT $8.18
Location: 45 Prev | Next Part: N0138302 *Qty: 2 WASHER $0.90
Location: 46 Prev | Next Part: 8100839 *Qty: 2 SCREW $0.90
Location: 47 Prev | Next Part: 7M103113 *Qty: 2 COVER $49.95
Location: 48 Prev | Next Part: 8300601 *Qty: 2 STUD BOLT $6.63
Location: 49 Prev | Next Part: 460147014 *Qty: 1 RH CYLINDER HEAD $12,954.18
Location: 50 Prev | Next Part: 7M103484A *Qty: 1 GASKET $106.16
Location: 51 Prev | Next Part: 8700852 *Qty: 7 SCREW $0.90
Location: 52 Prev | Next Part: N0138302 *Qty: 2 WASHER $0.90
Location: 53 Prev | Next Part: 8100839 *Qty: 2 SCREW $0.90
Location: 54 Prev | Next Part: WHT003082 *Qty: 2 DOWEL $0.90
Location: 55 Prev | Next Part: 8200604 *Qty: 28 NUT $0.90
Location: 56 Prev | Next Part: WHT001197 *Qty: 28 WASHER $0.90
Location: 57 Prev | Next Part: 8300666 *Qty: 28 STUD BOLT $42.58
Location: 58 Prev | Next Part: WHT003019 *Qty: 28 BUSHING $9.52
Location: 59 Prev | Next Part: 7M103143 *Qty: 1 BUSHING $16.01
Location: 60 Prev | Next Part: 61013451 *Qty: 2 WIRING HARNESS $53.23
Location: 61 Prev | Next Part: 7M109257 *Qty: 2 SOLENOID VALVE ASSEMBLY $827.42
Location: 62 Prev | Next Part: 8700644 *Qty: 4 SCREW $0.90
Location: 63 Prev | Next Part: WHT001197 *Qty: 4 WASHER $0.90
Location: 64 Prev | Next Part: 7M103677 *Qty: 6 GASKET $23.83
Location: 65 Prev | Next Part: 7M103179 *Qty: 6 PIPE UNION ADAPTER $21.31
Location: 66 Prev | Next Part: 7M103908 *Qty: 1 COIL COVER $1,526.69
Location: 67 Prev | Next Part: N01118312 *Qty: 2 NUT M6 $0.90
Location: 68 Prev | Next Part: WHT001197 *Qty: 1 WASHER $0.90
Location: 69 Prev | Next Part: 400972895 *Qty: 1 SPACER $24.06
Location: 70 Prev | Next Part: 8834401 *Qty: 1 CLAMP $13.01
Location: 71 Prev | Next Part: N10718801 *Qty: 1 SCREW M6X16 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
