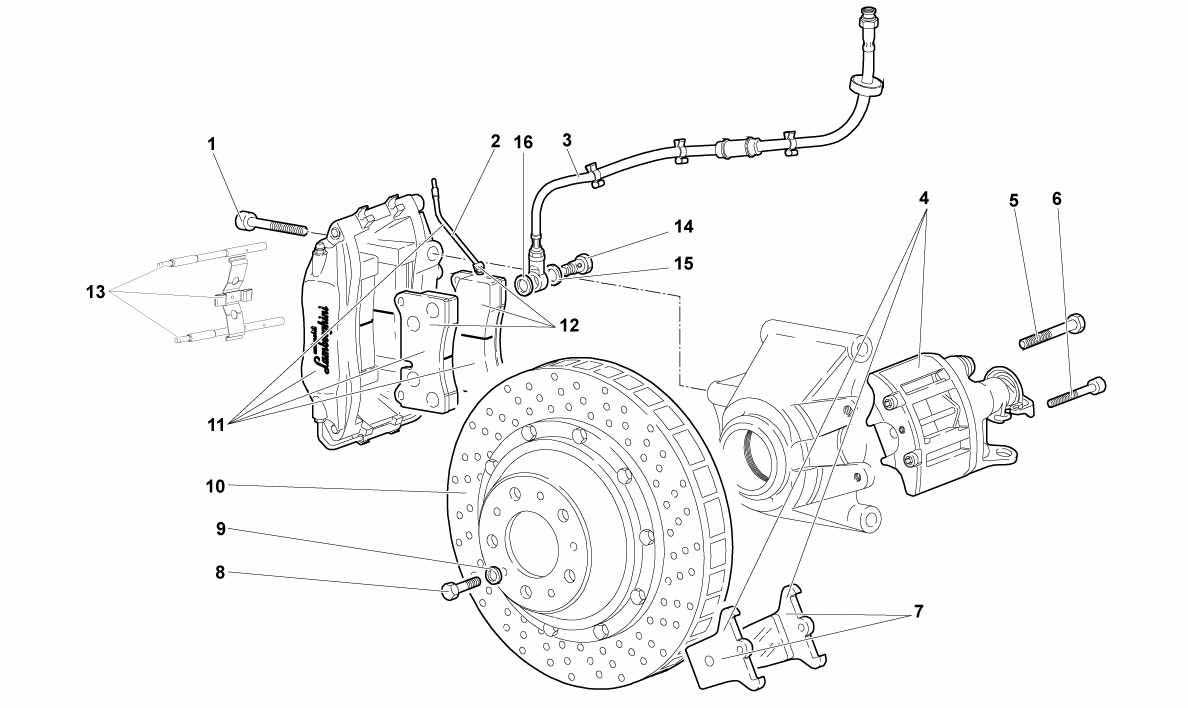

REAR BRAKES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8701224 *Qty: 4 SCREW $15.98
Location: 2 Prev | Next Part: 3135643 *Qty: 2 ELECTRIC CABLE $11.30
Location: 3 Prev | Next Part: 3229882 *Qty: 2 HOSE $167.29
Location: 4 Prev | Next Part: 410615404A *Qty: 1 RH BRAKE CALIPER $596.29
Location: 4 Prev | Next Part: 410615403A *Qty: 1 LH BRAKE CALIPER $596.29
Location: 5 Prev | Next Part: 8101073 *Qty: 2 SCREW $2.45
Location: 6 Prev | Next Part: 8700854 *Qty: 2 SCREW Call
Location: 7 Prev | Next Part: 410615115D *Qty: 4 PADS $45.81
Location: 8 Prev | Next Part: N10572401 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: WHT000771 *Qty: 6 WASHER $0.91
Location: 10 Prev | Next Part: 32016285 *Qty: 2 BRAKE DISK $1,703.41
Location: 11 Prev | Next Part: 32009002 *Qty: 1 REAR RH BRAKE CALIPER WITH LOGO $1,418.31
Location: 11 Prev | Next Part: 32009001 *Qty: 1 REAR LH BRAKE CALIPER WITH LOGO $1,418.31
Location: 12 Prev | Next Part: 32000561 *Qty: 1 BRAKE PAD SET $1,164.68
Location: 13 Prev | Next Part: 410698135 *Qty: 2 JOURNAL AND CLIP $52.48
Location: 14 Prev | Next Part: *Qty: 0 SCREW WITH HOLE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 15 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 16 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
