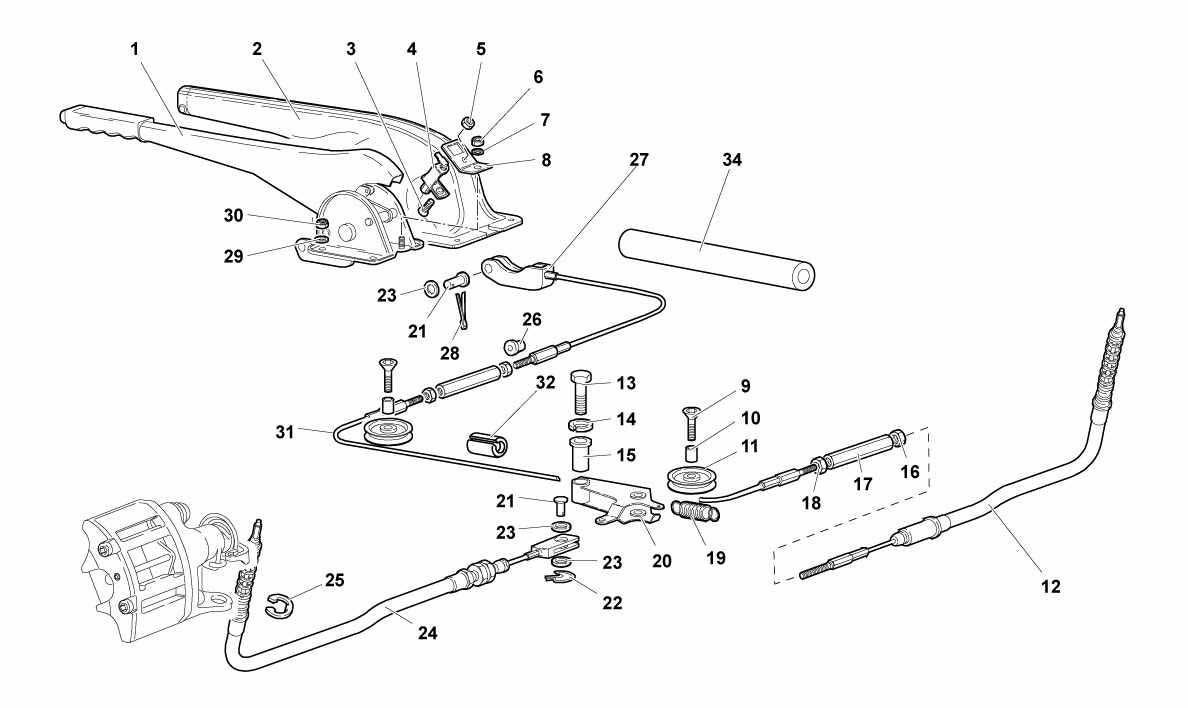

HAND BRAKE

Go to Split View

HAND BRAKE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 410711305 *Qty: 1 HAND BRAKE LEVER (STANDARD) $1,517.43
Location: 2 Prev | Next Part: 418711115 *Qty: 1 COVERING (Supply VIN) $309.67
Location: 3 Prev | Next Part: 8700404 *Qty: 1 SCREW $0.90
Location: 4 Prev | Next Part: 410711323 *Qty: 1 BUTTON $14.75
Location: 5 Prev | Next Part: 8200406 *Qty: 1 NUT $0.90
Location: 6 Prev | Next Part: 8200503 *Qty: 1 NUT $3.23
Location: 7 Prev | Next Part: WHT001187 *Qty: 1 WASHER $0.90
Location: 8 Prev | Next Part: 410711403 *Qty: 1 SUPPORT $33.53
Location: 9 Prev | Next Part: 8700851 *Qty: 3 SCREW $0.90
Location: 10 Prev | Next Part: 410711342 *Qty: 3 BUSHING $25.02
Location: 11 Prev | Next Part: 410711340 *Qty: 3 PULLEY $87.47
Location: 12 Prev | Next Part: 410609701A *Qty: 1 TIE ROD $211.60
Location: 13 Prev | Next Part: 8101407 *Qty: 1 SCREW M14X55 $5.09
Location: 14 Prev | Next Part: 8411404 *Qty: 1 WASHER $0.90
Location: 15 Prev | Next Part: 410609815 *Qty: 1 SPACER $37.27
Location: 16 Prev | Next Part: 8200607 *Qty: 1 NUT M6 $12.71
Location: 17 Prev | Next Part: 414609206 *Qty: 1 ADJUSTING SLEEVE $150.80
Location: 18 Prev | Next Part: 8200603 *Qty: 1 NUT M6 $0.90
Location: 19 Prev | Next Part: 410609707A *Qty: 1 SPRING $14.20
Location: 20 Prev | Next Part: 410711347 *Qty: 1 SUPPORT $93.49
Location: 21 Prev | Next Part: 410609789 *Qty: 2 JOURNAL $23.83
Location: 22 Prev | Next Part: 8820203 *Qty: 1 CLIP Call
Location: 23 Prev | Next Part: 8400806 *Qty: 3 WASHER $0.90
Location: 24 Prev | Next Part: 410609702A *Qty: 1 TIE ROD $274.45
Location: 25 Prev | Next Part: WHT003586 *Qty: 2 RETAINING RING $0.90
Location: 26 Prev | Next Part: 410609155 *Qty: 1 RUBBER BUSHING $13.11
Location: 27 Prev | Next Part: 413609722A *Qty: 1 TIE ROD $317.75
Location: 28 Prev | Next Part: 8820201 *Qty: 1 SPLIT PIN $0.90
Location: 29 Prev | Next Part: 8400606 *Qty: 4 WASHER $0.90
Location: 30 Prev | Next Part: N01118312 *Qty: 4 NUT M6 $0.90
Location: 31 Prev | Next Part: *Qty: 0 TIE ROD (VALID FOR A DIFFERENT MARKET) Call
Location: 32 Prev | Next Part: 410609774 *Qty: 1 BUSHING $83.72
Location: 34 Prev | Next Part: 10600150 *Qty: 1 PROTECTION (ORDER BY THE METRE) $55.49

* Quantity shown indicates the number of pieces used in the diagram.
