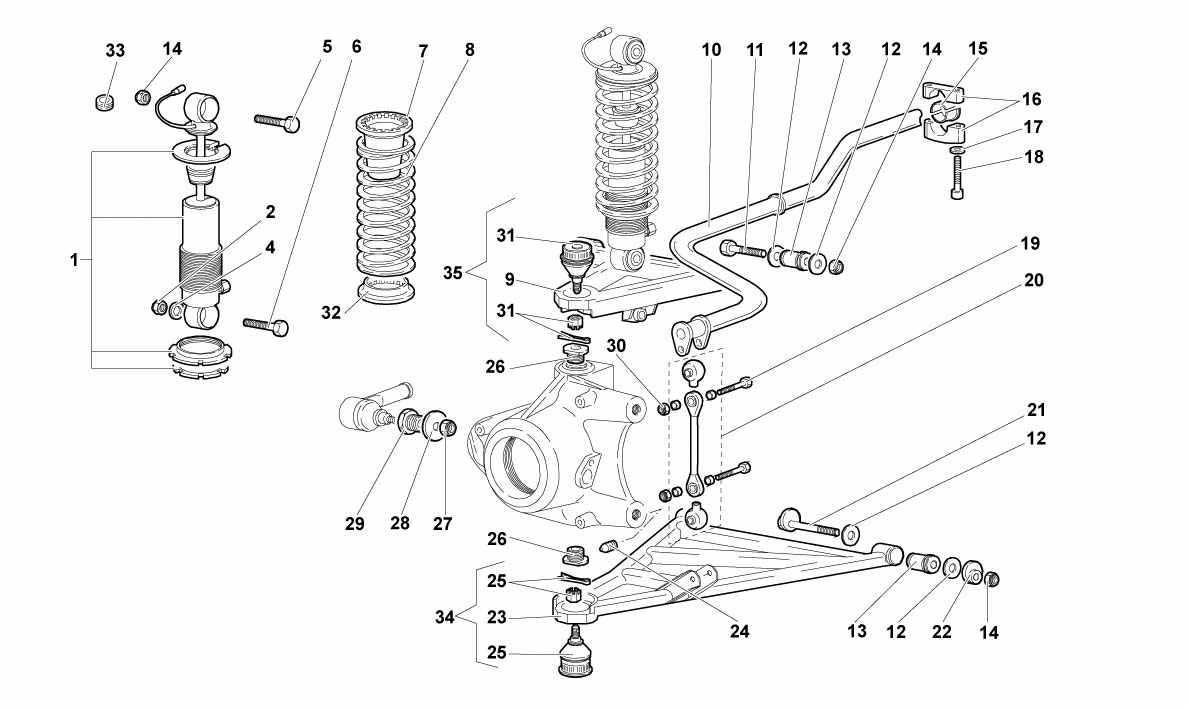

FRONT SUSPENSION

Go to Split View

FRONT SUSPENSION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 51010975 *Qty: 2 SHOCK ABSORBER (TECHNICAL CIRCULAR NR. CT.06.02) $7,301.65
Location: 1 Prev | Next Part: 51010975 *Qty: 2 SHOCK ABSORBER $7,301.65
Location: 2 Prev | Next Part: N90323704 *Qty: 2 NUT $2.15
Location: 4 Prev | Next Part: 8401234 *Qty: 4 WASHER $1.54
Location: 5 Prev | Next Part: 8101269 *Qty: 2 SCREW $4.84
Location: 6 Prev | Next Part: 5133229 *Qty: 2 SCREW $7.17
Location: 7 Prev | Next Part: 410512108 *Qty: 2 PANEL $34.72
Location: 8 Prev | Next Part: 51009206 *Qty: 2 SPRING $347.80
Location: 9 Prev | Next Part: *Qty: 0 UPPER ARM (CANNOT BE SOLD SEPARATELY - SEE REF. 35) Call
Location: 10 Prev | Next Part: 51003973 *Qty: 1 STABILIZER BAR $1,785.52
Location: 11 Prev | Next Part: 8101269 *Qty: 4 SCREW $4.84
Location: 12 Prev | Next Part: 410407295 *Qty: 4 SPACER $3.49
Location: 12 Prev | Next Part: 410407295A *Qty: 4 SPACER $5.27
Location: 12 Prev | Next Part: 410407295B *Qty: 4 SPACER $5.16
Location: 12 Prev | Next Part: 410407295C *Qty: 4 SPACER $5.67
Location: 12 Prev | Next Part: 410407295D *Qty: 4 WASHER $5.27
Location: 13 Prev | Next Part: *Qty: 0 FLEXIBLE BUSHING (CANNOT BE SOLD SEPARATELY - SEE REF. 34 - 35) Call
Location: 14 Prev | Next Part: N10725301 *Qty: 2 NUT 12X1,25X14,8 $0.90
Location: 14 Prev | Next Part: N10725301 *Qty: 4 NUT 12X1,25X14,8 $0.90
Location: 15 Prev | Next Part: 400511324C *Qty: 2 BUSHING $39.19
Location: 16 Prev | Next Part: 400411031D *Qty: 2 U-BOLT $154.64
Location: 17 Prev | Next Part: WHT001197 *Qty: 4 WASHER $0.90
Location: 18 Prev | Next Part: WHT000923 *Qty: 4 SCREW $6.13
Location: 20 Prev | Next Part: 410411317 *Qty: 2 CONNECTING ROD $268.91
Location: 21 Prev | Next Part: 410407127A *Qty: 4 SCREW $253.33
Location: 22 Prev | Next Part: 410407135 *Qty: 4 CAM $32.86
Location: 23 Prev | Next Part: *Qty: 0 LOWER ARM (CANNOT BE SOLD SEPARATELY - SEE REF. 34) Call
Location: 24 Prev | Next Part: 8700606 *Qty: 2 SCREW $0.90
Location: 25 Prev | Next Part: *Qty: 0 BALL JOINT COUPLING (CANNOT BE SOLD SEPARATELY - SEE REF. 34 Call
Location: 26 Prev | Next Part: 410407171 *Qty: 2 BUSH $78.41
Location: 27 Prev | Next Part: WHT000915 *Qty: 2 NUT $14.82
Location: 28 Prev | Next Part: WHT000919 *Qty: 2 WASHER $11.66
Location: 29 Prev | Next Part: 410419121 *Qty: 1 BUSH $79.62
Location: 30 Prev | Next Part: 8200804 *Qty: 4 NUT $0.90
Location: 31 Prev | Next Part: *Qty: 0 BALL JOINT COUPLING (CANNOT BE SOLD SEPARATELY - SEE REF. 35 Call
Location: 32 Prev | Next Part: 410512385 *Qty: 2 RUBBER RING $44.21
Location: 33 Prev | Next Part: 61005393 *Qty: 2 FAIRLEAD $4.33
Location: 34 Prev | Next Part: 410407151 *Qty: 1 LH LOWER ARM $3,058.99
Location: 34 Prev | Next Part: 410407152 *Qty: 1 RH LOWER ARM $3,058.99
Location: 35 Prev | Next Part: 51007869 *Qty: 1 RH UPPER ARM $2,641.10
Location: 35 Prev | Next Part: 51007870 *Qty: 1 LH UPPER ARM $2,641.10

* Quantity shown indicates the number of pieces used in the diagram.
