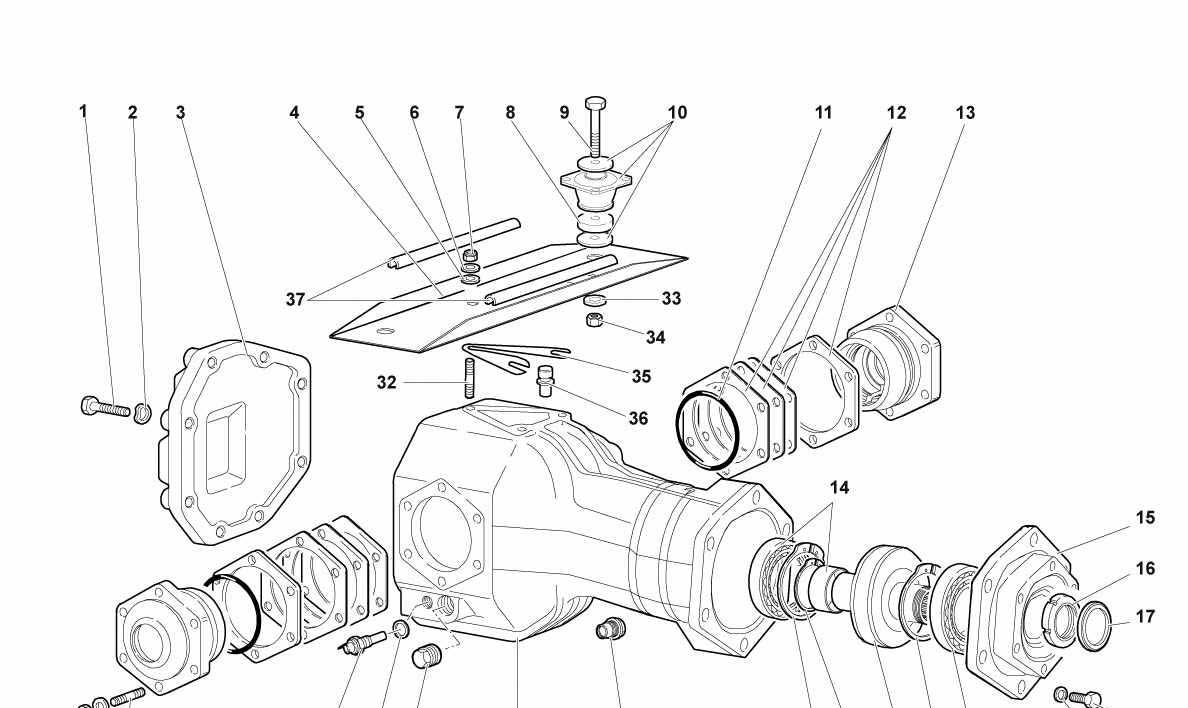

FRONT DIFFERENTIAL CASE

Go to Split View

FRONT DIFFERENTIAL CASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8100827 *Qty: 8 SCREW $0.90
Location: 2 Prev | Next Part: 8410805 *Qty: 8 WASHER $0.90
Location: 3 Prev | Next Part: 1S409410A *Qty: 1 COVER $277.46
Location: 4 Prev | Next Part: 410805153 *Qty: 1 SUPPORT $41.73
Location: 5 Prev | Next Part: N90179103 *Qty: 3 WASHER 18X8,4X2,5 $0.90
Location: 6 Prev | Next Part: 8410820 *Qty: 3 WASHER $0.90
Location: 7 Prev | Next Part: 8200804 *Qty: 3 NUT $0.90
Location: 8 Prev | Next Part: 410801499 *Qty: 2 SPACER $55.86
Location: 9 Prev | Next Part: 8101276 *Qty: 2 SCREW $1.72
Location: 10 Prev | Next Part: 410805991 *Qty: 2 SUPPORT $132.96
Location: 11 Prev | Next Part: WHT002158 *Qty: 2 SEAL RING $16.39
Location: 12 Prev | Next Part: 1S409448A *Qty: 1 1.0 MM ADJUSTMENT SHIM $31.95
Location: 12 Prev | Next Part: 1S409448D *Qty: 3 0.050 MM ADJUSTMENT SHIM $18.04
Location: 12 Prev | Next Part: 1S409448C *Qty: 3 0.075 MM ADJUSTMENT SHIM $27.48
Location: 12 Prev | Next Part: 1S409448E *Qty: 6 ADJUSTMENT SHIM $68.98
Location: 12 Prev | Next Part: 1S409448B *Qty: 2 2.0 MM ADJUSTMENT SHIM $59.49
Location: 12 Prev | Next Part: 1S409448 *Qty: 2 2.0 MM ADJUSTMENT SHIM $38.66
Location: 13 Prev | Next Part: 1S409828A *Qty: 2 FLANGE $686.49
Location: 14 Prev | Next Part: 1S409770 *Qty: 1 BEARING $276.12
Location: 15 Prev | Next Part: 1S409129A *Qty: 1 FLANGE $930.79
Location: 16 Prev | Next Part: 1S409761 *Qty: 1 RING NUT $168.66
Location: 17 Prev | Next Part: 1S409887 *Qty: 1 SEAL RING $38.86
Location: 18 Prev | Next Part: 8100803 *Qty: 6 SCREW $0.90
Location: 19 Prev | Next Part: 8410805 *Qty: 6 WASHER $0.90
Location: 20 Prev | Next Part: 1S409561 *Qty: 1 BEARING $44.36
Location: 21 Prev | Next Part: N0123501 *Qty: 2 RETAINING RING $5.62
Location: 21 Prev | Next Part: N0123191 *Qty: 2 RETAINING RING $4.30
Location: 22 Prev | Next Part: 1S409435B *Qty: 1 VISCOUS COUPLING $4,960.53
Location: 23 Prev | Next Part: 1S409297 *Qty: 1 SEAL RING $14.78
Location: 24 Prev | Next Part: 8931802 *Qty: 1 MAGNETIC PLUG $4.07
Location: 25 Prev | Next Part: 1S409149A *Qty: 1 FRONT DIFFERENTIAL CASE $2,379.51
Location: 26 Prev | Next Part: 86301141A *Qty: 1 PLUG $32.64
Location: 27 Prev | Next Part: N0138492 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 1S919529 *Qty: 1 SENSOR $219.42
Location: 29 Prev | Next Part: 8300923 *Qty: 12 STUD BOLT $6.53
Location: 30 Prev | Next Part: 8410805 *Qty: 12 WASHER $0.90
Location: 31 Prev | Next Part: 8200801 *Qty: 12 NUT $0.90
Location: 32 Prev | Next Part: 8300923 *Qty: 3 STUD BOLT $6.53
Location: 34 Prev | Next Part: 8201219 *Qty: 2 NUT $3.70
Location: 35 Prev | Next Part: 1S409267B *Qty: 4 SPACER $33.15
Location: 36 Prev | Next Part: B9507141 *Qty: 1 OIL BREATHER PIPE $54.28
Location: 37 Prev | Next Part: 400133338 *Qty: 2 GASKET $36.24

* Quantity shown indicates the number of pieces used in the diagram.
