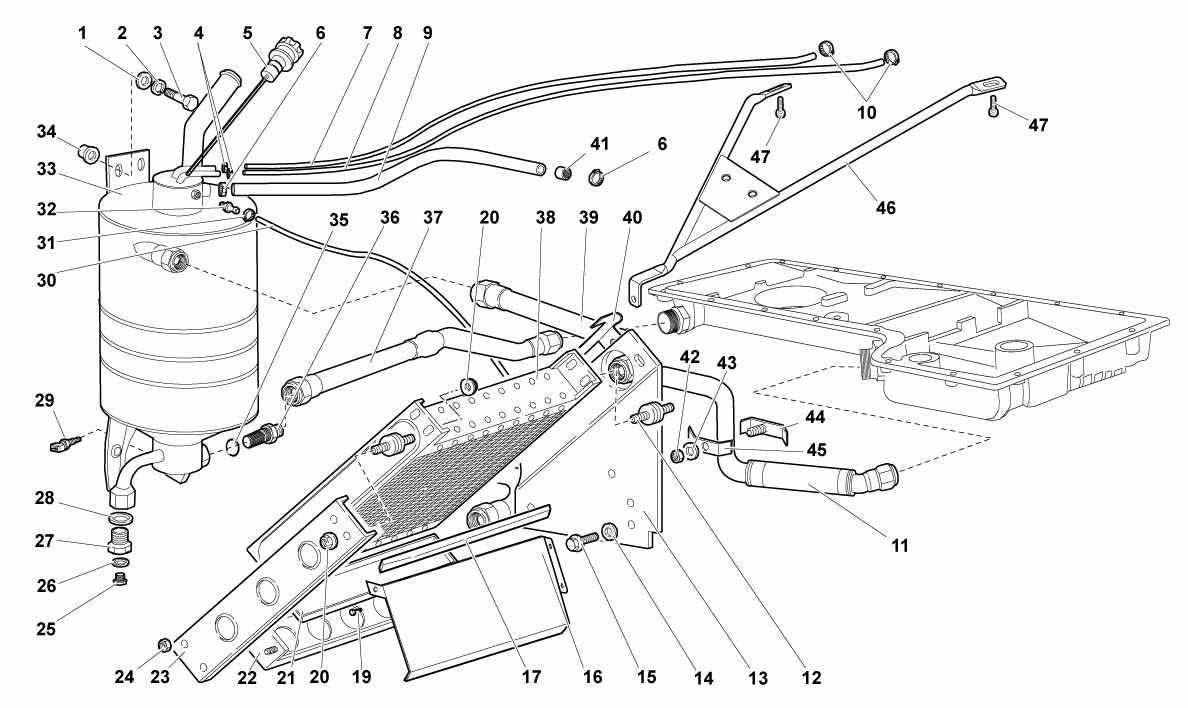

ENGINE OIL SYSTEM

Go to Split View

ENGINE OIL SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8400814 *Qty: 3 WASHER $0.90
Location: 2 Prev | Next Part: N0152785 *Qty: 3 WASHER $0.90
Location: 3 Prev | Next Part: 8100827 *Qty: 3 SCREW $0.90
Location: 4 Prev | Next Part: 8830901 *Qty: 2 CLAMP $6.33
Location: 5 Prev | Next Part: 7M115311B *Qty: 1 PLUG $992.11
Location: 6 Prev | Next Part: 8830128 *Qty: 2 CLAMP $0.90
Location: 7 Prev | Next Part: 7M115278A *Qty: 1 PIPE $96.58
Location: 8 Prev | Next Part: 7M115278 *Qty: 1 PIPE $96.58
Location: 9 Prev | Next Part: 7M115657 *Qty: 1 PIPE $61.84
Location: 10 Prev | Next Part: 400251189E *Qty: 2 CLAMP $6.55
Location: 11 Prev | Next Part: 7M117413 *Qty: 1 PIPE $1,318.54
Location: 12 Prev | Next Part: 8920602 *Qty: 3 FLEXIBLE SUPPORT $11.51
Location: 13 Prev | Next Part: 410813404 *Qty: 1 SHEET $75.28
Location: 14 Prev | Next Part: 8400607 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 8700663 *Qty: 4 SCREW $0.90
Location: 16 Prev | Next Part: 7M119275 *Qty: 1 PANEL $315.72
Location: 17 Prev | Next Part: 7M119467 *Qty: 1 GASKET $85.01
Location: 19 Prev | Next Part: 8700463 *Qty: 1 SCREW $1.23
Location: 20 Prev | Next Part: 8200614 *Qty: 6 NUT $0.90
Location: 21 Prev | Next Part: 410117079 *Qty: 1 OIL RADIATOR RUBBER SUPPORT $8.38
Location: 22 Prev | Next Part: 410117095 *Qty: 1 SHEET $425.00
Location: 23 Prev | Next Part: 410117141 *Qty: 1 BRACKET $60.12
Location: 24 Prev | Next Part: 8200513 *Qty: 2 NUT $0.90
Location: 25 Prev | Next Part: 400131737 *Qty: 1 PLUG $7.97
Location: 26 Prev | Next Part: 8401819 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 7M115707A *Qty: 1 CONNECTOR $58.60
Location: 28 Prev | Next Part: WHT003050 *Qty: 1 WASHER $1.82
Location: 29 Prev | Next Part: 7L919501A *Qty: 1 CA.0005430.C TEMPERATURE SENSOR $144.19
Location: 30 Prev | Next Part: 15009927 *Qty: 1 PIPE $98.47
Location: 31 Prev | Next Part: 8832204 *Qty: 2 CLAMP $16.70
Location: 32 Prev | Next Part: 7M115458 *Qty: 1 CONNECTOR $40.79
Location: 33 Prev | Next Part: 15009704 *Qty: 1 OIL TANK $1,199.47
Location: 34 Prev | Next Part: 410814939 *Qty: 3 BUSHING $6.53
Location: 35 Prev | Next Part: 8403901 *Qty: 1 WASHER $15.97
Location: 36 Prev | Next Part: 7M115157 *Qty: 1 CONNECTOR $542.17
Location: 37 Prev | Next Part: 7M115688 *Qty: 1 PIPE $337.58
Location: 38 Prev | Next Part: 7M117021 *Qty: 1 OIL RADIATOR $3,401.61
Location: 39 Prev | Next Part: 7M115689 *Qty: 1 PIPE $347.22
Location: 40 Prev | Next Part: 410813271 *Qty: 1 OIL RADIATOR AIR CONVEYOR FIXING ROD $133.57
Location: 41 Prev | Next Part: 7L129793 *Qty: 1 FLAME TRAP $46.17
Location: 42 Prev | Next Part: N01118312 *Qty: 1 NUT M6 $0.90
Location: 43 Prev | Next Part: 8400631 *Qty: 1 WASHER $0.90
Location: 44 Prev | Next Part: 7M115633 *Qty: 1 BRACKET $22.87
Location: 45 Prev | Next Part: 7M115634A *Qty: 1 BRACKET $19.84
Location: 46 Prev | Next Part: 410117073 *Qty: 1 BRACKET $354.79
Location: 47 Prev | Next Part: N10718801 *Qty: 2 SCREW M6X16 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
