ELECTRICAL SYSTEM

Go to Split View

ELECTRICAL SYSTEM

in cart

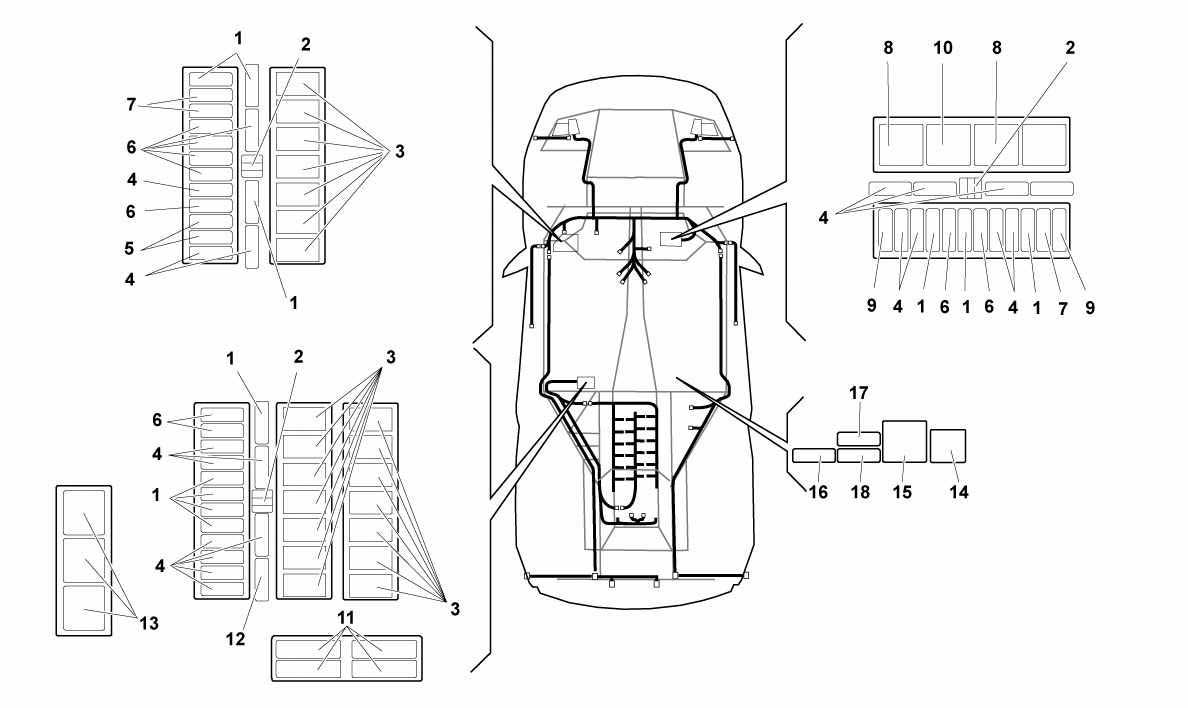

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N01713112 *Qty: 11 15A FUSE $0.90
Location: 2 Prev | Next Part: 410012231 *Qty: 3 PLIERS FOR FUSE REMOVAL $0.90
Location: 3 Prev | Next Part: 8Z0951253 *Qty: 21 RELAY $6.60
Location: 4 Prev | Next Part: N01713111 *Qty: 18 10A FUSE $0.90
Location: 5 Prev | Next Part: N01713117 *Qty: 2 3A FUSE $0.90
Location: 6 Prev | Next Part: N01713116 *Qty: 10 5A FUSE $0.90
Location: 7 Prev | Next Part: N01713113 *Qty: 3 20A FUSE $0.90
Location: 8 Prev | Next Part: 61010037 *Qty: 2 MINI-RELAY BITRON 23102 $36.76
Location: 9 Prev | Next Part: N01713115 *Qty: 2 30A FUSE $0.90
Location: 10 Prev | Next Part: 431951253D *Qty: 1 MINI-RELAY VW/AUDI $50.66
Location: 11 Prev | Next Part: 6038331 *Qty: 4 MAXI FUSE 299040 40AMP. $6.82
Location: 12 Prev | Next Part: N01713118 *Qty: 1 7.5A FUSE $0.90
Location: 13 Prev | Next Part: 7M0951253A *Qty: 3 RELAY $67.23
Location: 14 Prev | Next Part: 7L905107 *Qty: 1 RELAY (E-GEAR) $130.26
Location: 15 Prev | Next Part: 8Z0951253 *Qty: 1 MINI-RELAY VW/AUDI $6.60
Location: 16 Prev | Next Part: N01713115 *Qty: 1 30A FUSE (E-GEAR) $0.90
Location: 17 Prev | Next Part: N01713112 *Qty: 1 15A FUSE (E-GEAR) $0.90
Location: 18 Prev | Next Part: N01713118 *Qty: 1 7.5A FUSE (E-GEAR) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
