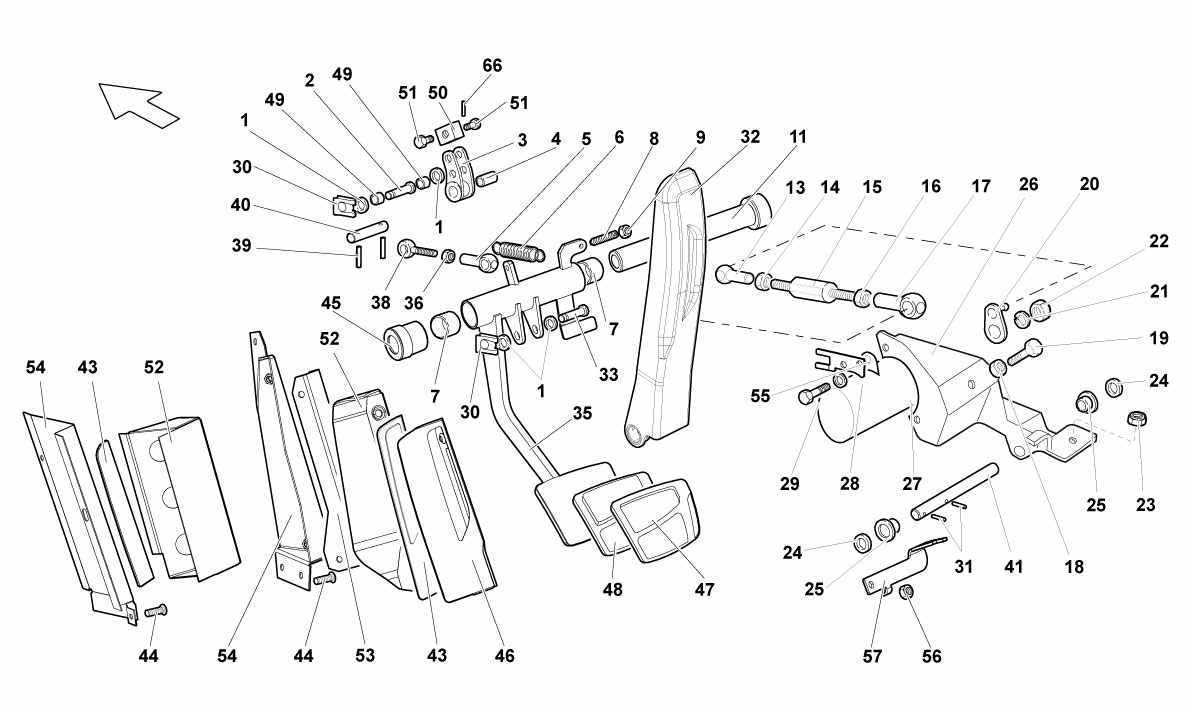

E-GEAR CONTROL PEDAL

Go to Split View

E-GEAR CONTROL PEDAL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N01152714 *Qty: 4 WASHER 10,5X21X2 $0.90
Location: 2 Prev | Next Part: 4232621 *Qty: 1 JOURNAL $37.82
Location: 3 Prev | Next Part: 4225060 *Qty: 1 LEVER $75.84
Location: 4 Prev | Next Part: 8801209 *Qty: 1 BUSHING $9.39
Location: 5 Prev | Next Part: 4225061 *Qty: 1 BALL JOINT COUPLING $68.96
Location: 6 Prev | Next Part: 410721363 *Qty: 1 SPRING $50.68
Location: 7 Prev | Next Part: 8802501 *Qty: 2 BUSHING $22.01
Location: 8 Prev | Next Part: 4210834 *Qty: 1 ADJUSTING SLEEVE $4.43
Location: 9 Prev | Next Part: 8200604 *Qty: 1 NUT M6 $0.90
Location: 11 Prev | Next Part: 413721325A *Qty: 1 JOURNAL $216.74
Location: 13 Prev | Next Part: 400721214E *Qty: 1 BALL JOINT HEAD (LEFT HAND THREAD) $42.00
Location: 14 Prev | Next Part: 8200504 *Qty: 1 NUT (LEFT HAND THREAD) $15.27
Location: 15 Prev | Next Part: 400721743 *Qty: 1 SHAFT $37.63
Location: 16 Prev | Next Part: 8200501 *Qty: 1 NUT $0.90
Location: 17 Prev | Next Part: 400721214A *Qty: 1 BALL JOINT HEAD $42.64
Location: 18 Prev | Next Part: 8200801 *Qty: 1 NUT M8X1,25X6,5 $0.90
Location: 19 Prev | Next Part: 8100834 *Qty: 1 SCREW M8X35 $0.90
Location: 20 Prev | Next Part: 400721728 *Qty: 1 LEVER $32.09
Location: 21 Prev | Next Part: 8400628 *Qty: 1 WASHER 6X12X1 $0.90
Location: 22 Prev | Next Part: 8200612 *Qty: 1 NUT M6X1X6 $0.90
Location: 24 Prev | Next Part: WHT000697 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 400721543 *Qty: 2 BUSHING $21.56
Location: 26 Prev | Next Part: 400721651A *Qty: 1 SUPPORT $123.14
Location: 27 Prev | Next Part: 400907475 *Qty: 1 POTENTIOMETER Superseded
Location: 28 Prev | Next Part: 8400628 *Qty: 2 WASHER 6X12X1 $0.90
Location: 29 Prev | Next Part: 8700614 *Qty: 2 SCREW M6X16 $0.90
Location: 30 Prev | Next Part: 8581004 *Qty: 2 CLIP $9.20
Location: 31 Prev | Next Part: 8900204 *Qty: 2 PIN $0.90
Location: 32 Prev | Next Part: 400721507A *Qty: 1 ACCELERATOR PEDAL $130.15
Location: 33 Prev | Next Part: 410721147 *Qty: 1 JOURNAL $40.36
Location: 35 Prev | Next Part: 42014400 *Qty: 1 BRAKE PEDAL $479.78
Location: 36 Prev | Next Part: 8201001 *Qty: 1 NUT M10 $0.90
Location: 38 Prev | Next Part: 4225062 *Qty: 1 TIE ROD $66.18
Location: 39 Prev | Next Part: N0133481 *Qty: 2 PIN $0.90
Location: 40 Prev | Next Part: 410721965 *Qty: 1 JOURNAL $23.38
Location: 41 Prev | Next Part: 400721157 *Qty: 1 JOURNAL $25.79
Location: 43 Prev | Next Part: 401864431 *Qty: 1 RUBBER FOOT MAT $17.15
Location: 44 Prev | Next Part: N90780901 *Qty: 3 SCREW M6X16.0 $0.90
Location: 45 Prev | Next Part: 410723167 *Qty: 1 SPACER $55.38
Location: 46 Prev | Next Part: 401864419B *Qty: 1 FOOTREST DRIVER SIDE $28.18
Location: 47 Prev | Next Part: 400721780A *Qty: 1 COVER $121.85
Location: 48 Prev | Next Part: 400721174A *Qty: 1 COVER $34.33
Location: 52 Prev | Next Part: 401864431B *Qty: 1 COVER $66.82
Location: 53 Prev | Next Part: 401864523A *Qty: 1 SUPPORT $42.99
Location: 54 Prev | Next Part: 42014833 *Qty: 1 BRACKET $88.88
Location: 55 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 56 Prev | Next Part: *Qty: 0 NUT M6 (VALID FOR A DIFFERENT MARKET) Call
Location: 57 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MARKET) Call
Location: 66 Prev | Next Part: N0133311 *Qty: 2 PIN 2.0X12.0 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
