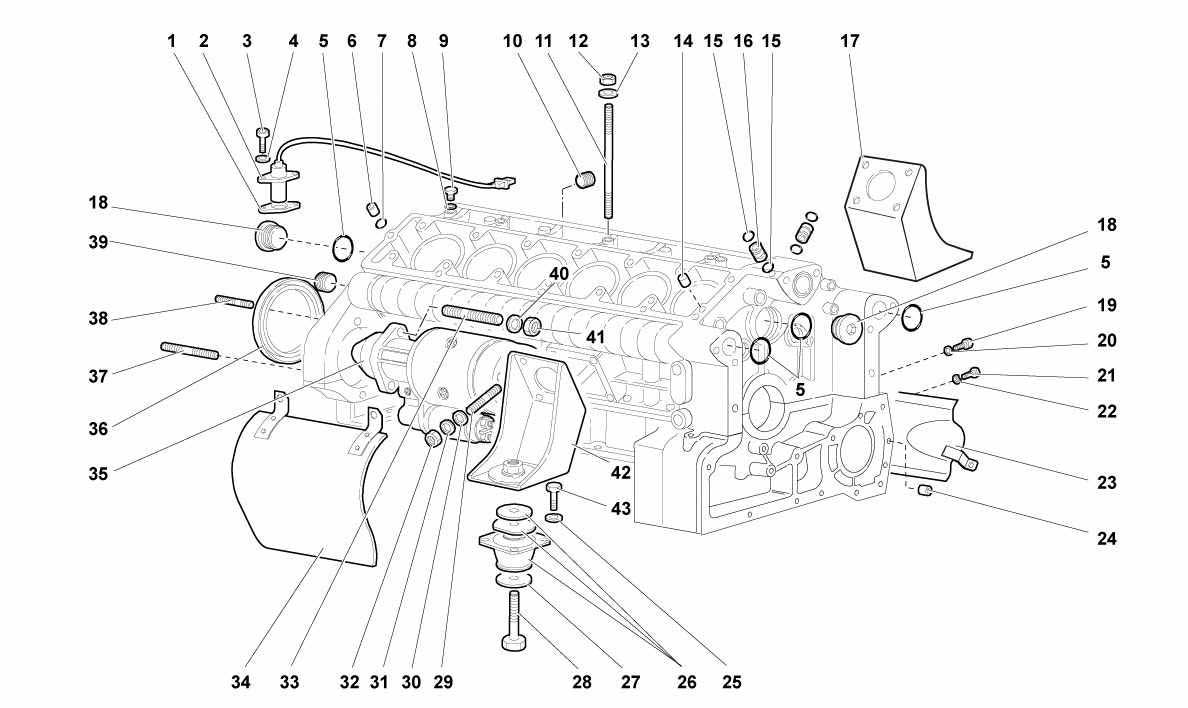

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7M103899 *Qty: 1 0.2 mm ADJUSTMENT SHIM $4.25
Location: 1 Prev | Next Part: 7M103899A *Qty: 1 0.4 mm ADJUSTMENT SHIM $6.81
Location: 2 Prev | Next Part: 7M905381 *Qty: 1 FLYWHEEL TIMING SENSOR Call
Location: 3 Prev | Next Part: 8700512 *Qty: 2 SCREW $0.90
Location: 4 Prev | Next Part: 8410503 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 8603503 *Qty: 3 SEAL RING $3.57
Location: 6 Prev | Next Part: 1832161 *Qty: 2 DOWEL $11.07
Location: 7 Prev | Next Part: WHT003059 *Qty: 2 SEAL RING $1.70
Location: 8 Prev | Next Part: N0138492 *Qty: 1 WASHER $0.90
Location: 9 Prev | Next Part: 8101402 *Qty: 1 PLUG $29.13
Location: 10 Prev | Next Part: 7M103545 *Qty: 1 PLUG $2.08
Location: 11 Prev | Next Part: 8300921 *Qty: 3 STUD BOLT $12.42
Location: 12 Prev | Next Part: 8200809 *Qty: 3 NUT $1.81
Location: 13 Prev | Next Part: N90179103 *Qty: 3 WASHER 18X8,4X2,5 $0.90
Location: 14 Prev | Next Part: WHT003077 *Qty: 2 DOWEL $5.97
Location: 15 Prev | Next Part: WHT003057 *Qty: 4 SEAL RING $0.90
Location: 16 Prev | Next Part: 1833995 *Qty: 2 DOWEL $32.91
Location: 17 Prev | Next Part: 410813209 *Qty: 1 SUPPORT $103.74
Location: 18 Prev | Next Part: 7M103485 *Qty: 2 PLUG $47.14
Location: 19 Prev | Next Part: 8700644 *Qty: 1 SCREW $0.90
Location: 20 Prev | Next Part: WHT003041 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: 8700819 *Qty: 1 SCREW $0.90
Location: 22 Prev | Next Part: WHT000771 *Qty: 1 WASHER $0.91
Location: 23 Prev | Next Part: 7M103750 *Qty: 1 PROTECTION $417.49
Location: 24 Prev | Next Part: WHT003098 *Qty: 1 DOWEL $23.17
Location: 25 Prev | Next Part: 8411014 *Qty: 8 WASHER $0.90
Location: 26 Prev | Next Part: 400199703 *Qty: 2 FLEXIBLE SUPPORT $151.03
Location: 27 Prev | Next Part: 41010690 *Qty: 2 WASHER $21.45
Location: 28 Prev | Next Part: 41010185 *Qty: 2 SCREW $23.89
Location: 29 Prev | Next Part: 8300814 *Qty: 8 STUD BOLT $6.48
Location: 30 Prev | Next Part: N90179103 *Qty: 8 WASHER 18X8,4X2,5 $0.90
Location: 31 Prev | Next Part: WHT000771 *Qty: 8 WASHER $0.91
Location: 32 Prev | Next Part: 8200808 *Qty: 8 NUT $0.90
Location: 33 Prev | Next Part: 8301249 *Qty: 2 STUD BOLT $15.17
Location: 34 Prev | Next Part: 7M911295 *Qty: 1 PROTECTION $487.49
Location: 35 Prev | Next Part: 1630672 *Qty: 1 STARTER (E-GEAR - UNTIL THE VIN 1647) Call
Location: 35 Prev | Next Part: 7M911023 *Qty: 1 STARTER (MANUAL GEARBOX) $1,562.33
Location: 36 Prev | Next Part: 7M103089 *Qty: 1 SEAL RING $88.07
Location: 37 Prev | Next Part: 8300808 *Qty: 3 STUD BOLT $5.67
Location: 38 Prev | Next Part: 8300809 *Qty: 2 STUD BOLT $8.18
Location: 39 Prev | Next Part: 7M103801 *Qty: 2 PLUG $18.90
Location: 40 Prev | Next Part: WHT003055 *Qty: 2 WASHER $0.90
Location: 41 Prev | Next Part: 7M911094 *Qty: 2 NUT $5.57
Location: 42 Prev | Next Part: 410813210 *Qty: 1 SUPPORT $103.74
Location: 43 Prev | Next Part: 8101031 *Qty: 8 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
