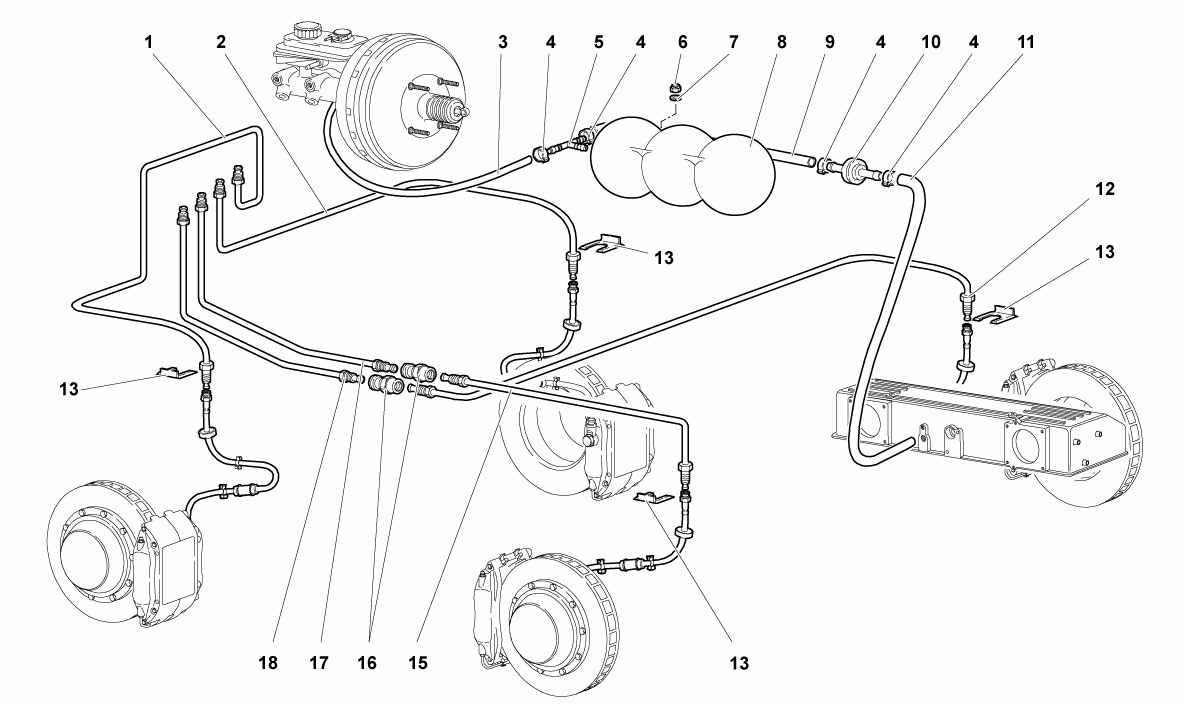

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 410611723 *Qty: 1 LEFT PIPE $49.61
Location: 2 Prev | Next Part: 410611724 *Qty: 1 RIGHT PIPE $146.22
Location: 3 Prev | Next Part: 3226068 *Qty: 1 BRAKE BOOSTER/VACUUM FLEXIBLE HOSE $187.47
Location: 4 Prev | Next Part: 8831117 *Qty: 4 CLAMP $8.02
Location: 5 Prev | Next Part: 400611921 *Qty: 1 CONNECTOR $1.57
Location: 6 Prev | Next Part: WHT000760 *Qty: 2 NUT $0.90
Location: 7 Prev | Next Part: WHT003040 *Qty: 2 WASHER 5.3X1.5X15 $5.84
Location: 8 Prev | Next Part: 443131541 *Qty: 1 VACUUM TANK $24.47
Location: 9 Prev | Next Part: 410611936 *Qty: 1 PIPE FROM VALVE TO VACUUM TANK $30.49
Location: 10 Prev | Next Part: 410616807 *Qty: 1 VALVE $16.88
Location: 11 Prev | Next Part: 410611937 *Qty: 1 VACUUM MANIFOLD BRANCH PIPE $67.48
Location: 12 Prev | Next Part: 410611748 *Qty: 1 RIGHT CALIPER FLEXIBLE/CONNECTION HOSE $83.55
Location: 13 Prev | Next Part: 400611949 *Qty: 4 PLATE $22.85
Location: 15 Prev | Next Part: 410611747 *Qty: 1 LEFT CALIPER FLEXIBLE/CONNECTION HOSE $73.12
Location: 16 Prev | Next Part: 410611809 *Qty: 2 CONNECTOR $40.51
Location: 17 Prev | Next Part: 410611746 *Qty: 1 LEFT CENTRAL/CONNECTION PIPE $73.12
Location: 18 Prev | Next Part: 410611745 *Qty: 1 RIGHT CENTRAL/CONNECTION PIPE $73.12

* Quantity shown indicates the number of pieces used in the diagram.
