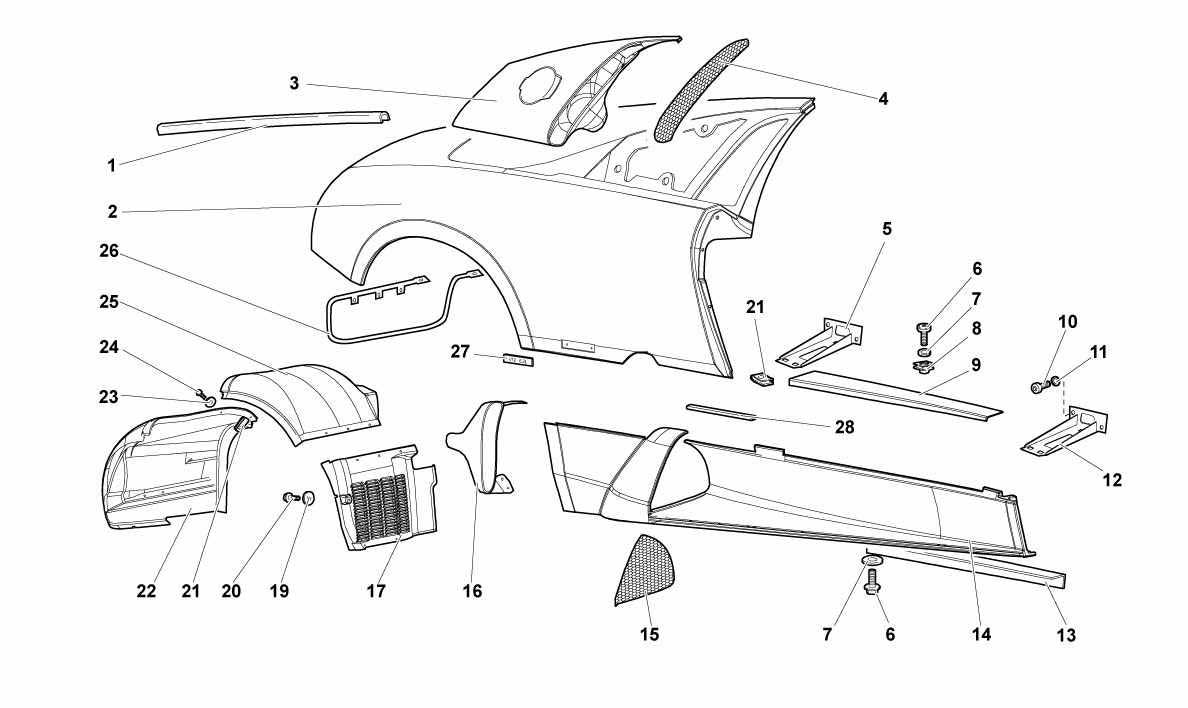

BODY ELEMENTS - RIGHT SIDE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 418821243 *Qty: 1 CHANNEL $687.64
Location: 2 Prev | Next Part: 418821018B *Qty: 1 RIGHT REAR FENDER ASSEMBLY $16,635.81
Location: 3 Prev | Next Part: 418809954 *Qty: 1 FENDER RH COVER AND FUEL LID $7,034.44
Location: 4 Prev | Next Part: 66005882 *Qty: 1 NET $107.72
Location: 5 Prev | Next Part: 410813549 *Qty: 1 BRACKET $33.45
Location: 6 Prev | Next Part: N10718801 *Qty: 18 SCREW M6X16 $0.90
Location: 7 Prev | Next Part: 8400607 *Qty: 18 WASHER $0.90
Location: 8 Prev | Next Part: WHT003673 *Qty: 6 CLIP $0.90
Location: 9 Prev | Next Part: 410853492 *Qty: 1 SCUFF PLATE $1,214.39
Location: 10 Prev | Next Part: 8700627 *Qty: 4 SCREW $0.90
Location: 11 Prev | Next Part: 8400606 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 410813550 *Qty: 1 BRACKET $35.20
Location: 13 Prev | Next Part: 410857470 *Qty: 1 AERODYNAMIC RIGHT STRAP IRON $168.38
Location: 14 Prev | Next Part: 410809036 *Qty: 1 RIGHT SIDE MEMBER ASSEMBLY $10,404.08
Location: 15 Prev | Next Part: 410864444 *Qty: 1 NET $164.67
Location: 16 Prev | Next Part: 410119017 *Qty: 1 ALTERNATOR AIR CONVEYOR $1,268.75
Location: 17 Prev | Next Part: 68006020 *Qty: 1 RIGHT REAR WHEELARCH, FRONT PART $496.05
Location: 19 Prev | Next Part: 8400614 *Qty: 32 WASHER $0.90
Location: 20 Prev | Next Part: N90319404 *Qty: 19 SCREW $1.27
Location: 21 Prev | Next Part: N90834301 *Qty: 4 CLIP $0.90
Location: 22 Prev | Next Part: 410810986 *Qty: 1 RIGHT REAR WHEELARCH, REAR PART $463.03
Location: 23 Prev | Next Part: N91109201 *Qty: 18 WASHER $5.44
Location: 24 Prev | Next Part: 8700454 *Qty: 4 SCREW $2.73
Location: 25 Prev | Next Part: 410810982 *Qty: 1 RIGHT REAR WHEELARCH, CENTRAL PART $1,483.33
Location: 26 Prev | Next Part: *Qty: 0 RIGHT FRAMEWORK (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 27 Prev | Next Part: 94013594 *Qty: 1 V12 6.2L PLATE $337.56
Location: 28 Prev | Next Part: 400853893 *Qty: 1 GASKET $6.70

* Quantity shown indicates the number of pieces used in the diagram.
