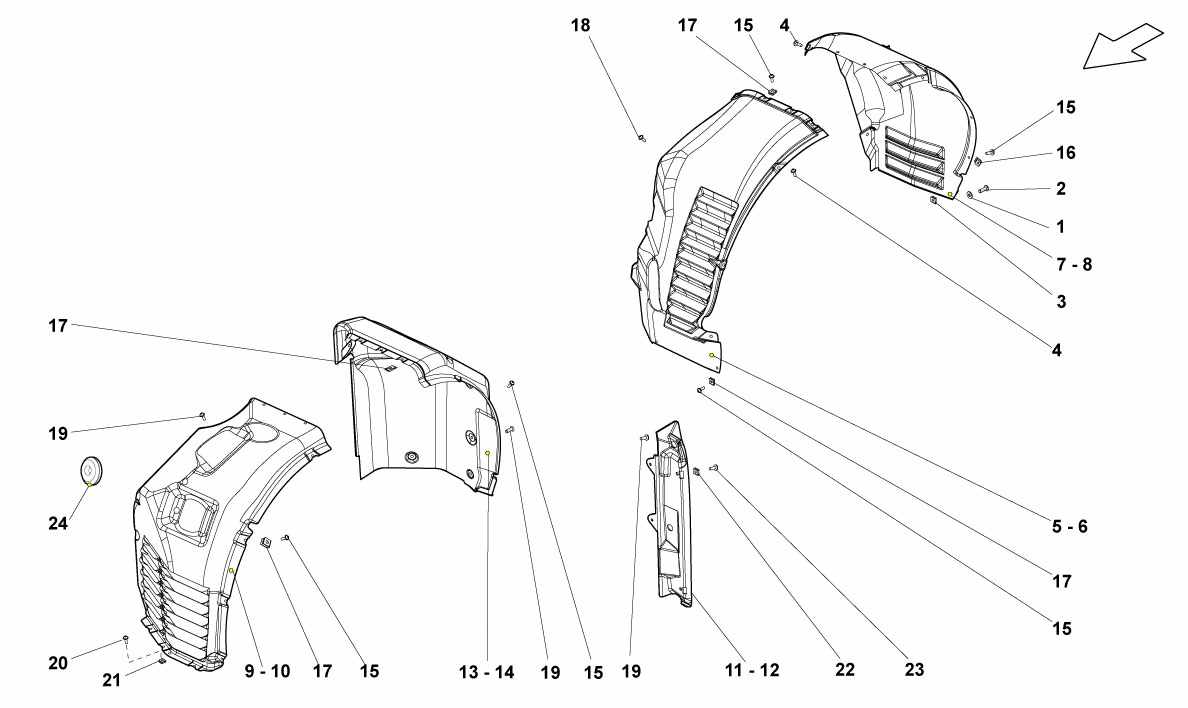

WHEELHOUSE

Go to Split View

WHEELHOUSE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: WHT000778 *Qty: 8 WASHER $0.90
Location: 2 Prev | Next Part: N90455205 *Qty: 4 SCREW M4X10 $0.90
Location: 3 Prev | Next Part: N90526602 *Qty: 4 CLIP $0.90
Location: 4 Prev | Next Part: N90944603 *Qty: 10 SCREW M5X12 $0.90
Location: 5 Prev | Next Part: 400810981A *Qty: 1 REAR LH WHEELHOUSE APRON CENTER PORTION $527.95
Location: 6 Prev | Next Part: 400810982A *Qty: 1 REAR RH WHEELHOUSE APRON CENTER PORTION $527.95
Location: 7 Prev | Next Part: 400810985 *Qty: 1 REAR LH WHEELHOUSE APRON REAR PORTION $1,728.74
Location: 8 Prev | Next Part: 400810986 *Qty: 1 REAR RH WHEELHOUSE APRON REAR PORTION $1,728.74
Location: 9 Prev | Next Part: 400821171A *Qty: 1 FRONT LH WHEELHOUSE APRON FRONT PORTION $520.21
Location: 10 Prev | Next Part: 400821172B *Qty: 1 FRONT RH WHEELHOUSE APRON FRONT PORTION Call
Location: 11 Prev | Next Part: 400821179A *Qty: 1 LINER REAR LH $41.35
Location: 12 Prev | Next Part: 400821180A *Qty: 1 LINER REAR RH $41.35
Location: 13 Prev | Next Part: 400821191A *Qty: 1 FRONT LH WHEELHOUSE APRON REAR PORTION $135.16
Location: 14 Prev | Next Part: 400821192A *Qty: 1 FRONT RH WHEELHOUSE APRON REAR PORTION $135.32
Location: 15 Prev | Next Part: N90698605 *Qty: 12 SCREW ST4.2X16 $0.90
Location: 16 Prev | Next Part: N0154487 *Qty: 6 CLIP $0.90
Location: 17 Prev | Next Part: N90170803 *Qty: 8 CLIP $0.90
Location: 18 Prev | Next Part: N90944603 *Qty: 6 SCREW M5X12 $0.90
Location: 19 Prev | Next Part: N90807405 *Qty: 12 SCREW M5X18 $0.90
Location: 20 Prev | Next Part: N90900401 *Qty: 8 SCREW M6X20 $0.90
Location: 21 Prev | Next Part: N90327506 *Qty: 8 CLIP $0.90
Location: 22 Prev | Next Part: N90327506 *Qty: 4 CLIP $0.90
Location: 23 Prev | Next Part: WHT000757 *Qty: 4 SCREW M6X16 $3.90
Location: 24 Prev | Next Part: 400821189 *Qty: 4 FAIRLEAD $2.07

* Quantity shown indicates the number of pieces used in the diagram.
