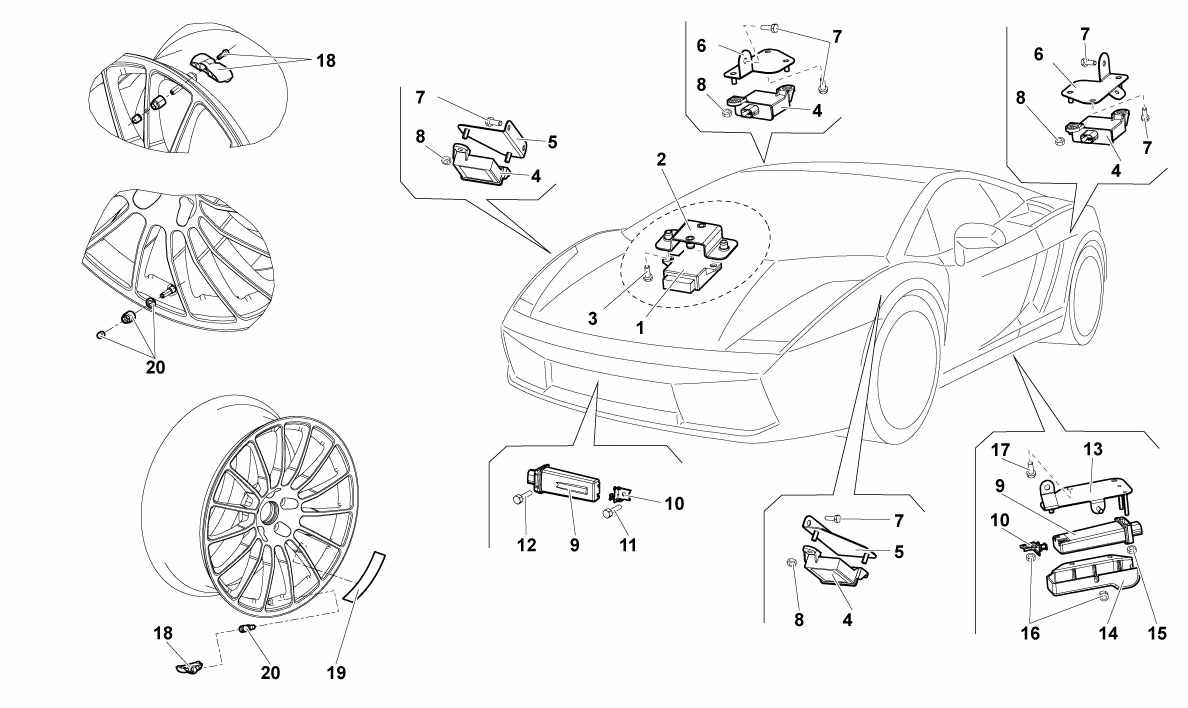

TPMS SYSTEM

Go to Split View

TPMS SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400907273A *Qty: 1 TPMS CONTROL UNIT $886.94
Location: 2 Prev | Next Part: 400907372 *Qty: 1 BRACKET $29.86
Location: 3 Prev | Next Part: N10653201 *Qty: 4 SCREW M6X16 $0.90
Location: 4 Prev | Next Part: 4F0907283 *Qty: 4 CONTROL UNIT (TRANSMITTING UNIT) $80.61
Location: 5 Prev | Next Part: 400907731 *Qty: 2 BRACKET $21.74
Location: 6 Prev | Next Part: 400907732 *Qty: 2 BRACKET $23.20
Location: 7 Prev | Next Part: N10653201 *Qty: 8 SCREW M6X16 $0.90
Location: 8 Prev | Next Part: N01508213 *Qty: 8 NUT M6 $0.90
Location: 9 Prev | Next Part: 8E0907277 *Qty: 2 ANTENNA - 433 MHZ $133.77
Location: 10 Prev | Next Part: 3W0907323 *Qty: 2 FASTENER $6.12
Location: 11 Prev | Next Part: N90991902 *Qty: 1 SCREW M6X16 $0.90
Location: 12 Prev | Next Part: N10703301 *Qty: 2 SCREW M5X35 $0.90
Location: 13 Prev | Next Part: 400907525 *Qty: 1 BRACKET $48.28
Location: 14 Prev | Next Part: 400907299 *Qty: 1 COVER $46.60
Location: 15 Prev | Next Part: N10017304 *Qty: 2 NUT M5 $0.90
Location: 16 Prev | Next Part: N01508213 *Qty: 2 NUT M6 $0.90
Location: 17 Prev | Next Part: N10653201 *Qty: 3 SCREW M6X16 $0.90
Location: 18 Prev | Next Part: 4F0907275B *Qty: 4 TPMS SENSOR $131.40
Location: 19 Prev | Next Part: 400010502C *Qty: 4 TPMS STICKER $4.48
Location: 20 Prev | Next Part: 400601361A *Qty: 4 VALVE 9 MM (FOR SCORPIUS/CASSIOPEA) $108.80
Location: 20 Prev | Next Part: 400601361C *Qty: 4 VALVE 21 MM (FOR CALLISTO) $108.80

* Quantity shown indicates the number of pieces used in the diagram.
