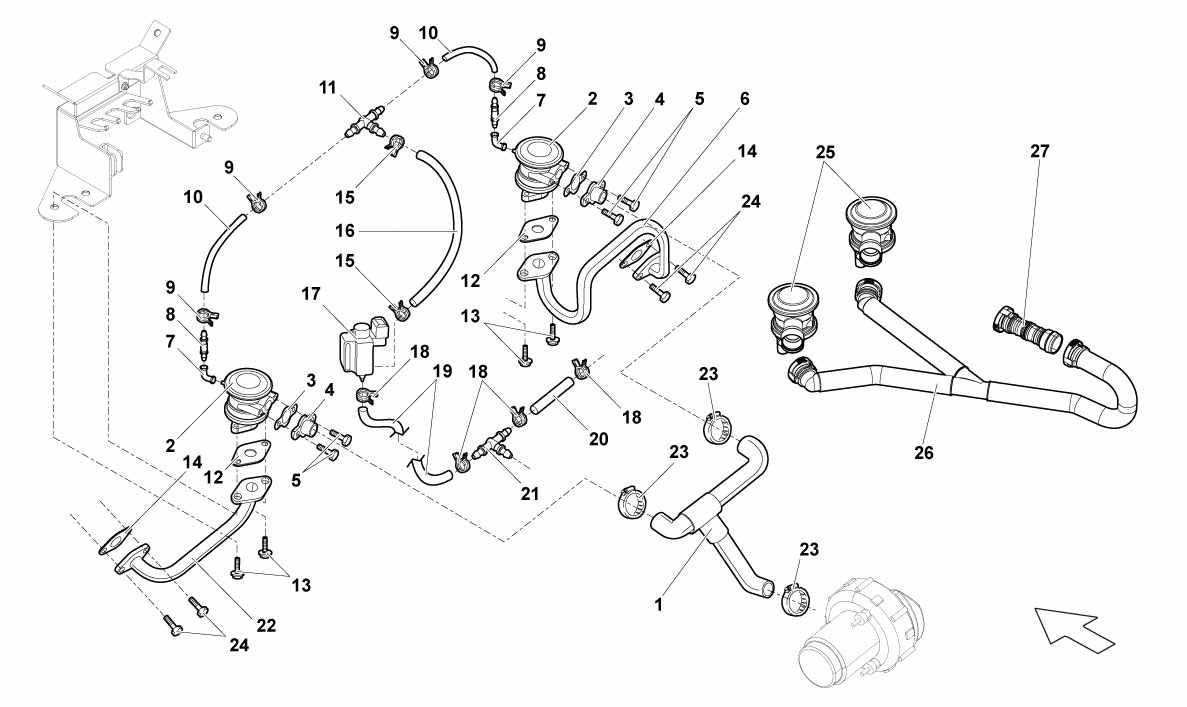

SECONDARY AIR SYSTEM

Go to Split View

SECONDARY AIR SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 2 Prev | Next Part: *Qty: 0 VALVE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 3 Prev | Next Part: *Qty: 0 GASKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 4 Prev | Next Part: *Qty: 0 PIPE FITTING (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 5 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 6 Prev | Next Part: 7L131626B *Qty: 1 PIPE $108.21
Location: 7 Prev | Next Part: 7L131756 *Qty: 4 CONNECTOR $13.15
Location: 8 Prev | Next Part: 400131791 *Qty: 2 CONNECTOR $0.90
Location: 9 Prev | Next Part: 400133348 *Qty: 4 CLIP $0.90
Location: 10 Prev | Next Part: 7L131845 *Qty: 2 PIPE $18.34
Location: 11 Prev | Next Part: 7L133579 *Qty: 1 CONNECTOR $1.11
Location: 12 Prev | Next Part: 7L131354 *Qty: 2 GASKET $8.66
Location: 13 Prev | Next Part: N10338903 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 7L131357 *Qty: 2 GASKET $8.66
Location: 15 Prev | Next Part: 400127217 *Qty: 2 CLIP $0.90
Location: 16 Prev | Next Part: 7L133264 *Qty: 1 PIPE $27.51
Location: 17 Prev | Next Part: 77906283 *Qty: 1 SOLENOID VALVE $40.43
Location: 18 Prev | Next Part: 400133348 *Qty: 4 CLIP $0.90
Location: 19 Prev | Next Part: 7L131058 *Qty: 1 PIPE $86.30
Location: 20 Prev | Next Part: 7L131385 *Qty: 1 PIPE $20.17
Location: 21 Prev | Next Part: 7L133579 *Qty: 1 CONNECTOR $1.11
Location: 22 Prev | Next Part: 7L131625B *Qty: 1 PIPE $105.46
Location: 23 Prev | Next Part: *Qty: 0 CLAMP (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 24 Prev | Next Part: N10338903 *Qty: 4 SCREW $0.90
Location: 25 Prev | Next Part: 79131101F *Qty: 2 VALVE $114.31
Location: 26 Prev | Next Part: 7L133580 *Qty: 1 PIPE (UNTIL THE VIN 8LA05810) $1,623.08
Location: 26 Prev | Next Part: 7L133580A *Qty: 1 PIPE (FROM VIN 8LA05811) $89.12
Location: 27 Prev | Next Part: 7L133383 *Qty: 1 PIPE (FROM VIN 8LA05811) $20.54

* Quantity shown indicates the number of pieces used in the diagram.
