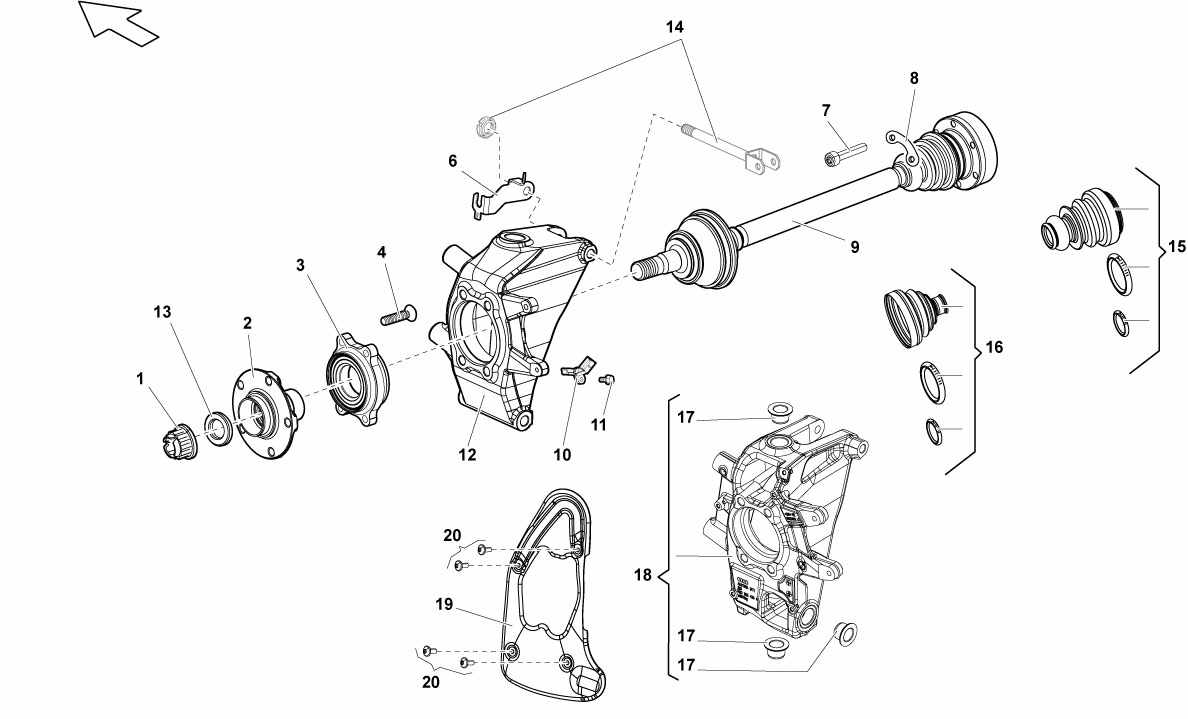

REAR DRIVE SHAFT

Go to Split View

REAR DRIVE SHAFT

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: R1400150 *Qty: 1 REAR DRIVE SHAFTS SCREWS KIT (ORDERABLE FOR CAMPAIGN NR L140-A.03.07/L715-A.03.07 ONLY) $165.35
Location: 1 Prev | Next Part: 7L0407396 *Qty: 2 NUT M24 $12.00
Location: 2 Prev | Next Part: 400407613 *Qty: 2 HUB $126.31
Location: 3 Prev | Next Part: 4E0407625D *Qty: 2 BEARING $163.22
Location: 4 Prev | Next Part: WHT000237 *Qty: 8 SCREW M12X45 $4.80
Location: 6 Prev | Next Part: 400615381 *Qty: 1 LH BRACKET $9.39
Location: 6 Prev | Next Part: 400615382 *Qty: 1 RH BRACKET $9.39
Location: 7 Prev | Next Part: WHT001331A *Qty: 12 SCREW $29.88
Location: 8 Prev | Next Part: 7L0407357B *Qty: 6 PLATE $1.24
Location: 9 Prev | Next Part: 400501211E *Qty: 1 LH REAR OMOKINETIC DRIVE SHAFT $701.17
Location: 9 Prev | Next Part: 400501212E *Qty: 1 RH REAR OMOKINETIC DRIVE SHAFT $701.17
Location: 10 Prev | Next Part: 4E0927803A *Qty: 1 LH ABS SENSOR $35.07
Location: 10 Prev | Next Part: 4E0927803D *Qty: 1 LH ABS SENSOR Call
Location: 10 Prev | Next Part: 4E0927804A *Qty: 1 RH ABS SENSOR $33.63
Location: 10 Prev | Next Part: 4E0927804D *Qty: 1 RH ABS SENSOR $23.05
Location: 11 Prev | Next Part: N01474011 *Qty: 2 SCREW M6X16 $0.90
Location: 12 Prev | Next Part: 400505433B *Qty: 1 REAR LEFT HUB CARRIER (CARBOCERAMIC BRAKE) $1,377.97
Location: 12 Prev | Next Part: 400505433 *Qty: 1 REAR LEFT HUB CARRIER $2,041.14
Location: 12 Prev | Next Part: 400505434B *Qty: 1 REAR RIGHT HUB CARRIER (CARBOCERAMIC BRAKE) $1,377.97
Location: 12 Prev | Next Part: 400505434 *Qty: 1 REAR RIGHT HUB CARRIER $2,041.14
Location: 13 Prev | Next Part: 400501226 *Qty: 2 WASHER $38.11
Location: 14 Prev | Next Part: *Qty: 0 SCREW - NUT (SEE TABLE 505.05.00) Call
Location: 15 Prev | Next Part: 400498099C *Qty: 2 KIT AXELSHAFT REAR INNER $116.51
Location: 16 Prev | Next Part: 400498099B *Qty: 2 KIT AXELSHAFT REAR OUTER $63.02
Location: 17 Prev | Next Part: *Qty: 0 BUSHING (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 18 Prev | Next Part: *Qty: 0 REAR HUB CARRIER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 19 Prev | Next Part: *Qty: 1 PROTECTION (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 20 Prev | Next Part: *Qty: 6 SCREW M5X12 (VALID FOR A DIFFERENT MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
