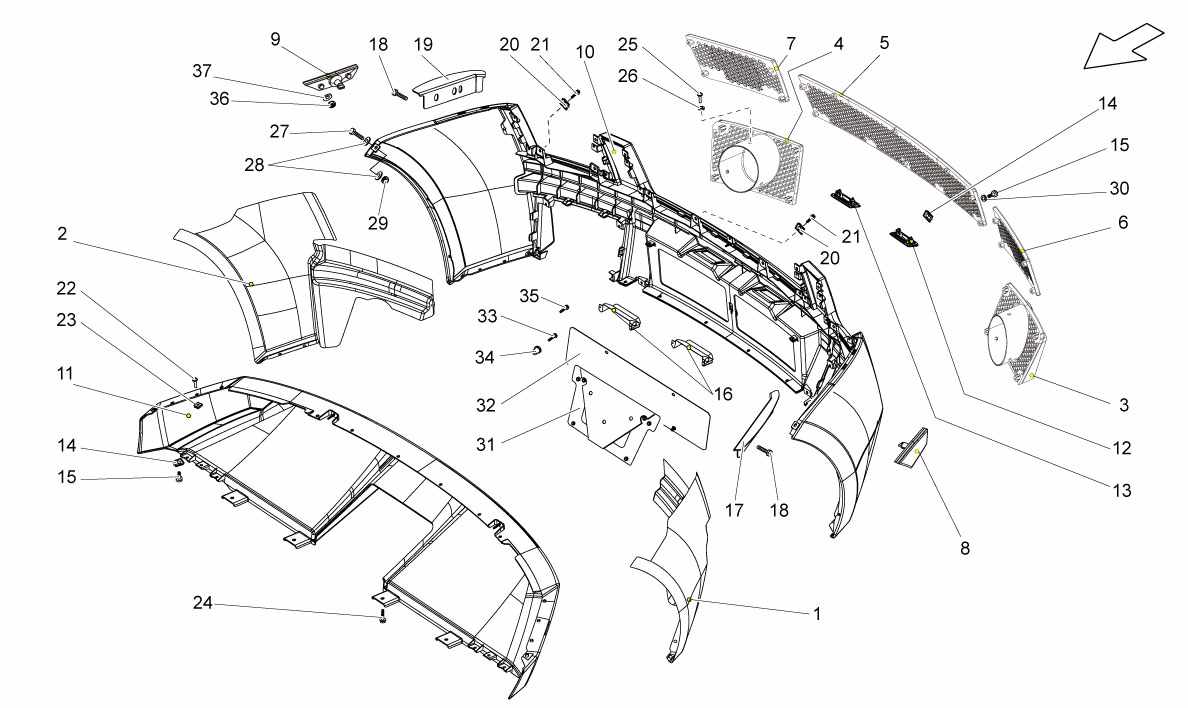

REAR BUMPERS

Go to Split View

REAR BUMPERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400807869 *Qty: 1 LH PROTECTION $664.51
Location: 2 Prev | Next Part: 400807870 *Qty: 1 RH PROTECTION $821.05
Location: 3 Prev | Next Part: 403807675 *Qty: 1 LEFT REAR GRID $1,084.33
Location: 4 Prev | Next Part: 403807676 *Qty: 1 RIGHT REAR GRID $2,385.52
Location: 5 Prev | Next Part: 400807684 *Qty: 1 GRID $501.20
Location: 6 Prev | Next Part: 400807697 *Qty: 1 LEFT GRID $391.20
Location: 7 Prev | Next Part: 400807698 *Qty: 1 RIGHT GRID $391.20
Location: 8 Prev | Next Part: 400945127A *Qty: 1 REAR LEFT SIDE MARKER (DARK SIDE INDICATOR LIGHTS) $106.29
Location: 9 Prev | Next Part: 400945128A *Qty: 1 REAR RIGHT SIDE MARKER (DARK SIDE INDICATOR LIGHTS) $74.39
Location: 10 Prev | Next Part: 400807497B *Qty: 1 REAR BUMPER ASSEMBLY $3,199.22
Location: 11 Prev | Next Part: 403807527 *Qty: 1 COVERING $19,986.09
Location: 12 Prev | Next Part: 8N0943021A *Qty: 1 LH LICENCE-PLATE LAMP $14.80
Location: 13 Prev | Next Part: 8N0943022A *Qty: 1 RH LICENCE-PLATE LAMP $14.80
Location: 14 Prev | Next Part: N90526602 *Qty: 20 CLIP $0.90
Location: 15 Prev | Next Part: N10404501 *Qty: 20 SCREW $1.14
Location: 16 Prev | Next Part: 400943137 *Qty: 2 PROTECTION $200.16
Location: 17 Prev | Next Part: 400807131A *Qty: 1 LH BRACKET $63.54
Location: 18 Prev | Next Part: N90847903 *Qty: 4 SCREW $0.90
Location: 19 Prev | Next Part: 400807132A *Qty: 1 RH BRACKET $127.09
Location: 20 Prev | Next Part: N0154487 *Qty: 14 CLIP $0.90
Location: 21 Prev | Next Part: N10584201 *Qty: 14 SCREW $0.90
Location: 22 Prev | Next Part: N10584201 *Qty: 23 SCREW $0.90
Location: 23 Prev | Next Part: N0154487 *Qty: 23 CLIP $0.90
Location: 24 Prev | Next Part: N90807403 *Qty: 4 SCREW Call
Location: 25 Prev | Next Part: *Qty: 6 SCREW (NOT FOR SUPERLEGGERA MODEL) Call
Location: 26 Prev | Next Part: *Qty: 6 WASHER (NOT FOR SUPERLEGGERA MODEL) Call
Location: 27 Prev | Next Part: N10718801 *Qty: 2 SCREW $0.90
Location: 28 Prev | Next Part: 8400623 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 8200614 *Qty: 2 NUT $0.90
Location: 30 Prev | Next Part: N10663401 *Qty: 22 WASHER $0.90
Location: 31 Prev | Next Part: 400827120 *Qty: 1 LICENSE PLATE HOLDER $82.68
Location: 32 Prev | Next Part: *Qty: 0 LICENSE PLATE HOLDER (VALID FOR A DIFFERENT MARKET) Call
Location: 33 Prev | Next Part: N10637302 *Qty: 2 SCREW (M5X20) $1.04
Location: 34 Prev | Next Part: 400807995 *Qty: 2 RUBBER BUSHING $2.70
Location: 35 Prev | Next Part: *Qty: 2 SCREW (VALID FOR A DIFFERENT MARKET) Call
Location: 36 Prev | Next Part: N0211963 *Qty: 4 NUT M5 $0.90
Location: 37 Prev | Next Part: WHT000778 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
