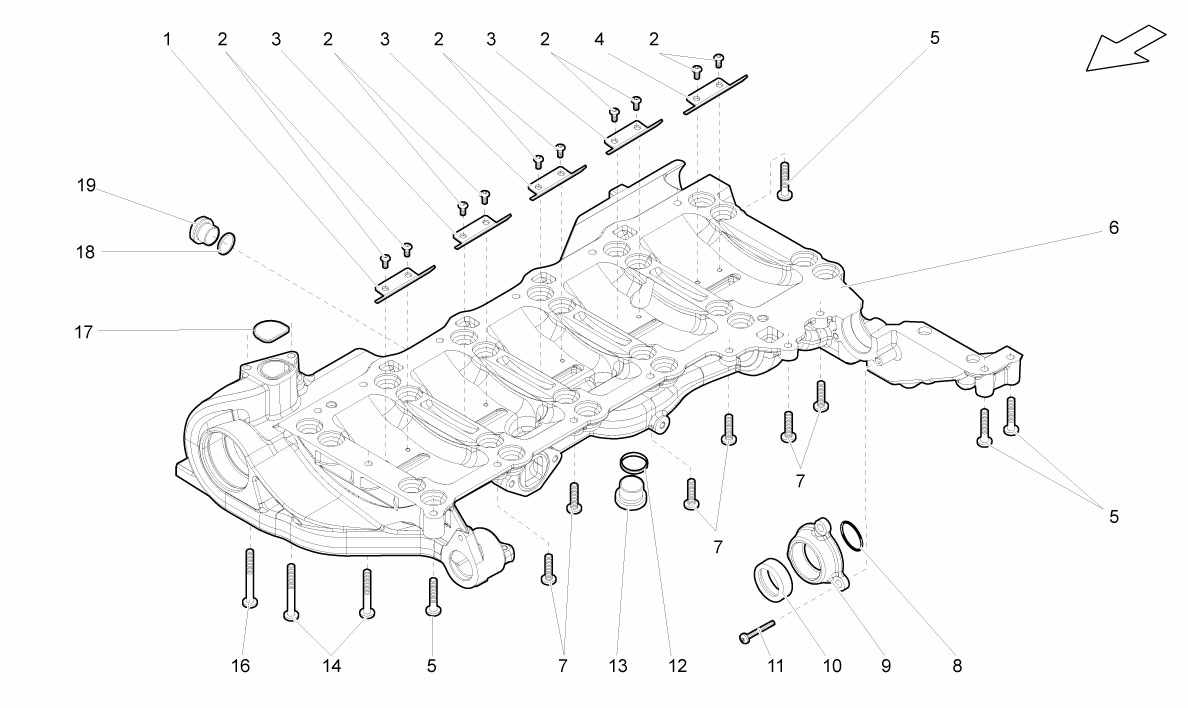

OIL SUMP

Go to Split View

OIL SUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L107327A *Qty: 1 OIL RING $7.62
Location: 2 Prev | Next Part: N91030701 *Qty: 10 SCREW M4X8.0 $6.28
Location: 3 Prev | Next Part: 7L107332A *Qty: 3 OIL RING $47.65
Location: 4 Prev | Next Part: 7L107331A *Qty: 1 OIL RING $7.62
Location: 5 Prev | Next Part: N10156206 *Qty: 9 SCREW M6X30.0 $0.90
Location: 6 Prev | Next Part: 7L103603H *Qty: 1 ENGINE OIL PAN $2,652.10
Location: 7 Prev | Next Part: N10124308 *Qty: 6 SCREW M6X20 $0.90
Location: 8 Prev | Next Part: WHT002797 *Qty: 1 O-RING 36.2X2.62-N $3.44
Location: 9 Prev | Next Part: 7L103525A *Qty: 1 COVER $116.51
Location: 10 Prev | Next Part: 7L103051 *Qty: 1 OIL SEAL $18.39
Location: 11 Prev | Next Part: N10451405 *Qty: 3 SCREW M6X16.0 $0.90
Location: 12 Prev | Next Part: N0138322 *Qty: 1 SEAL RING A18X22 $0.90
Location: 13 Prev | Next Part: N0160293 *Qty: 1 SCREW M18X15 $6.53
Location: 14 Prev | Next Part: N10582103 *Qty: 2 SCREW M6X40 $0.90
Location: 16 Prev | Next Part: N10470703 *Qty: 1 SCREW M6X50 $1.19
Location: 17 Prev | Next Part: WHT001023 *Qty: 1 O-RING $1.60
Location: 18 Prev | Next Part: N0138481 *Qty: 1 WASHER 16X22 $0.90
Location: 19 Prev | Next Part: N91155901 *Qty: 1 PLUG $9.01

* Quantity shown indicates the number of pieces used in the diagram.
