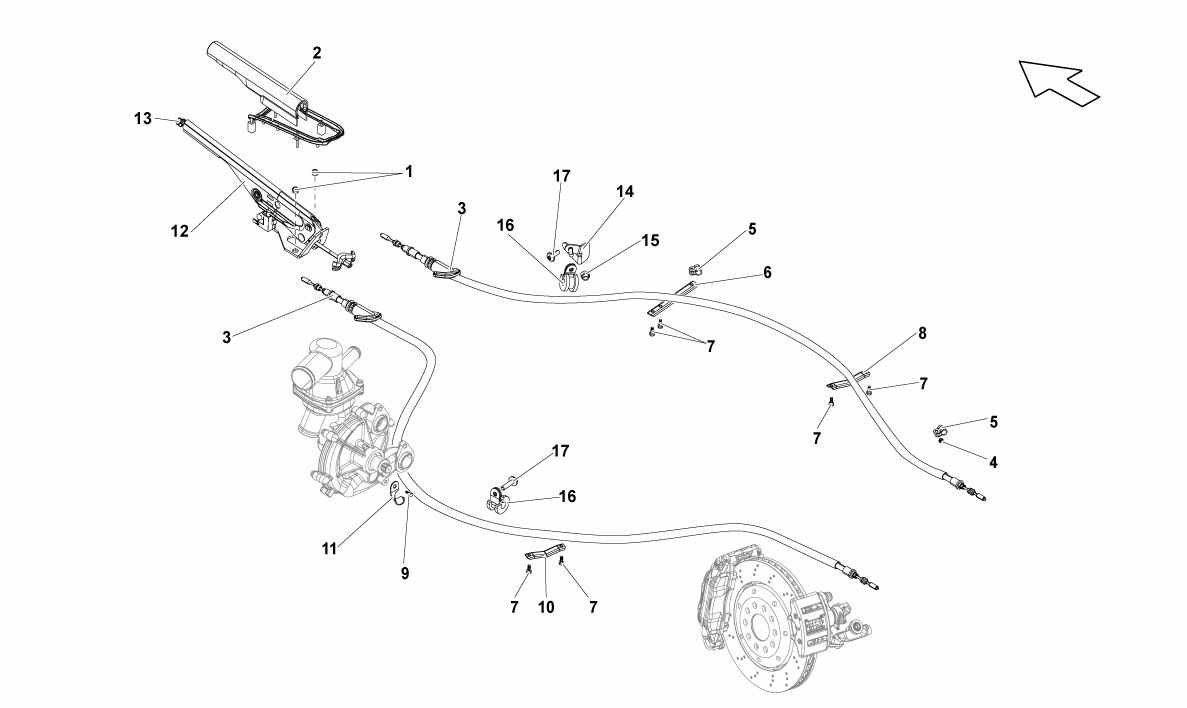

HAND BRAKE

Go to Split View

HAND BRAKE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 2 Prev | Next Part: 400711327A *Qty: 1 HANDLE (CARBON INTERIOR) $1,934.61
Location: 2 Prev | Next Part: 400711327 *Qty: 1 HANDLE (STANDARD) $124.81
Location: 3 Prev | Next Part: 400609721E *Qty: 2 HAND BRAKE CABLE ASSEMBLY $150.27
Location: 4 Prev | Next Part: N10082911 *Qty: 2 SCREW M6X15 $0.90
Location: 5 Prev | Next Part: N0206026 *Qty: 2 CLIP $1.34
Location: 6 Prev | Next Part: 400609645 *Qty: 1 BRACKET $13.15
Location: 7 Prev | Next Part: N10459202 *Qty: 6 SCREW M5X12 $0.90
Location: 8 Prev | Next Part: 400609644 *Qty: 1 RH BRACKET $9.33
Location: 9 Prev | Next Part: N90833102 *Qty: 1 SCREW M6X10 $0.90
Location: 10 Prev | Next Part: 400609643 *Qty: 1 LH BRACKET $9.33
Location: 11 Prev | Next Part: 400609651 *Qty: 1 BRACKET $16.44
Location: 12 Prev | Next Part: 400711303 *Qty: 1 HAND BRAKE LEVER $498.73
Location: 13 Prev | Next Part: 8N0711332A *Qty: 1 AUTOMATIC BUTTON $21.66
Location: 14 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 15 Prev | Next Part: *Qty: 0 NUT M6 (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 16 Prev | Next Part: *Qty: 0 CLAMP (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 17 Prev | Next Part: *Qty: 0 SCREW M6X16 (VALID FOR A DIFFERENT MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
