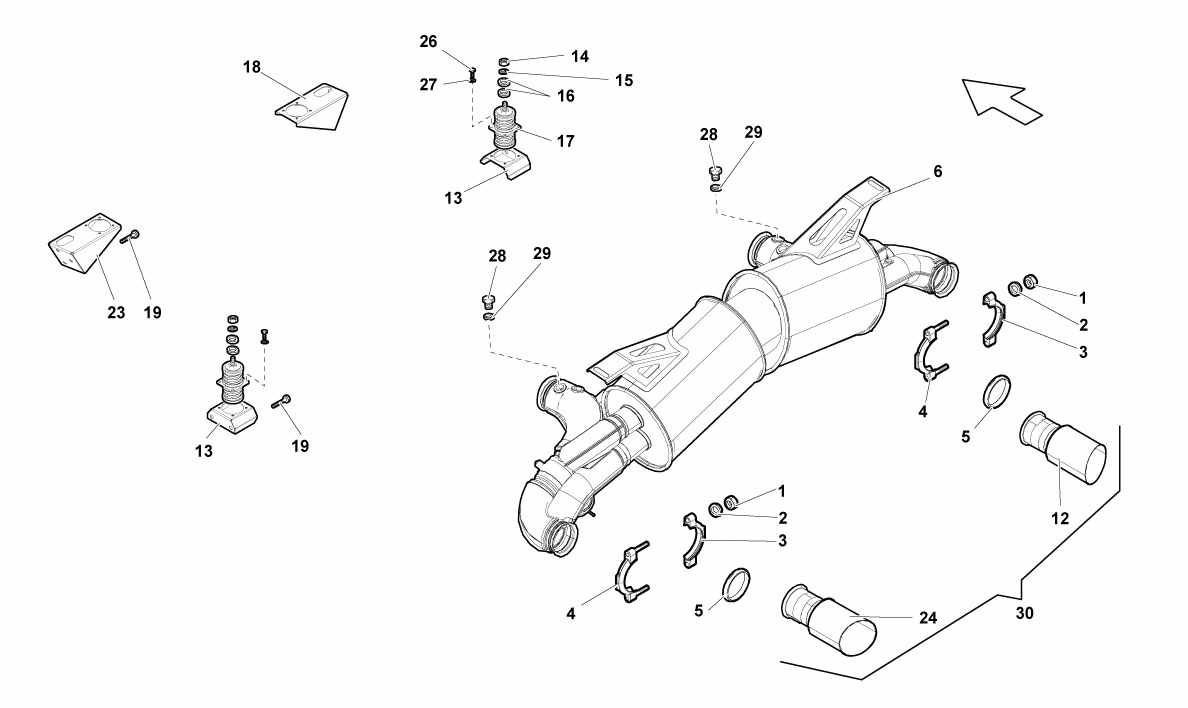

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N02214621 *Qty: 2 NUT $0.90
Location: 2 Prev | Next Part: WHT001185 *Qty: 2 WASHER $0.90
Location: 3 Prev | Next Part: 400251143 *Qty: 2 COLLAR $81.55
Location: 4 Prev | Next Part: 400251143B *Qty: 2 COLLAR $84.73
Location: 5 Prev | Next Part: 400131797 *Qty: 2 DUAL CONE $31.78
Location: 6 Prev | Next Part: 400251052B *Qty: 1 SILENCER ASSEMBLY $5,787.28
Location: 12 Prev | Next Part: *Qty: 1 RH TERMINAL (CANNOT BE SOLD SEPARATELY - SEE REF. 30) Call
Location: 13 Prev | Next Part: 400253379B *Qty: 1 LH BRACKET $21.53
Location: 14 Prev | Next Part: N10155210 *Qty: 4 NUT $0.90
Location: 15 Prev | Next Part: WHT000770 *Qty: 4 WASHER $0.90
Location: 16 Prev | Next Part: N0122115 *Qty: 8 WASHER $0.90
Location: 17 Prev | Next Part: 400251393 *Qty: 4 SUPPORT $154.85
Location: 18 Prev | Next Part: 400253324A *Qty: 1 BRACKET $275.38
Location: 19 Prev | Next Part: N10049303 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 400253323A *Qty: 1 BRACKET $243.59
Location: 24 Prev | Next Part: *Qty: 1 TERMINAL (CANNOT BE SOLD SEPARATELY - SEE REF. 30) Call
Location: 26 Prev | Next Part: N10595002 *Qty: 16 SCREW $1.22
Location: 27 Prev | Next Part: N01152318 *Qty: 16 WASHER $0.90
Location: 28 Prev | Next Part: N0297042 *Qty: 2 PLUG $8.68
Location: 29 Prev | Next Part: N91122801 *Qty: 2 WASHER $1.01
Location: 30 Prev | Next Part: R1400213 *Qty: 1 TAIL PIPE KIT $2,294.49

* Quantity shown indicates the number of pieces used in the diagram.
