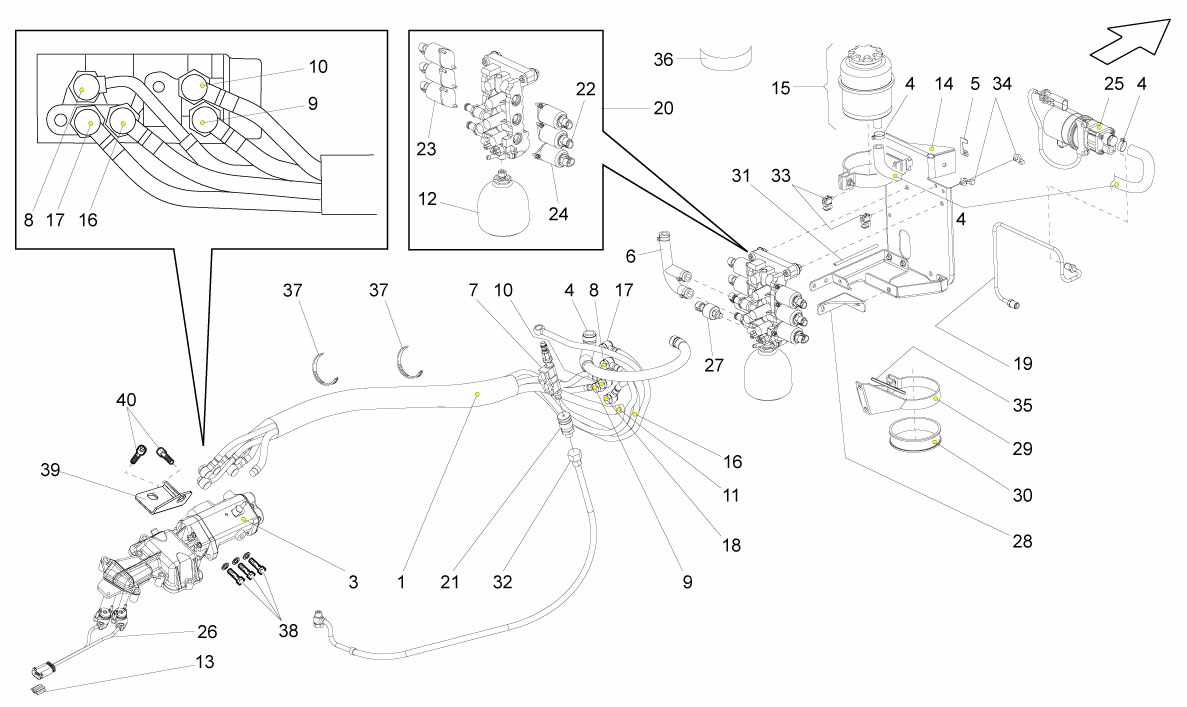

E-GEAR VALVES GROUP

Go to Split View

E-GEAR VALVES GROUP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86317831 *Qty: 1 SHEATH $421.23
Location: 3 Prev | Next Part: 86325059 *Qty: 1 ACTUATOR GROUP $6,018.77
Location: 4 Prev | Next Part: 86325083 *Qty: 1 TUBE KIT $768.98
Location: 5 Prev | Next Part: 86325085 *Qty: 1 ANCHORAGE CONNECTOR KIT $37.63
Location: 6 Prev | Next Part: 86325087 *Qty: 1 THREE-WAY PIPE KIT $470.85
Location: 7 Prev | Next Part: 86325089 *Qty: 1 KIT QUICK DISCONNECT (UNTIL THE VIN 6LA04009) $1,718.64
Location: 7 Prev | Next Part: 86325089A *Qty: 1 KIT QUICK DISCONNECT (FROM VIN 6LA04010) $1,733.01
Location: 8 Prev | Next Part: 86325095 *Qty: 1 TUBE EV2 $468.55
Location: 9 Prev | Next Part: 86325097 *Qty: 1 TUBE EV3 $418.02
Location: 10 Prev | Next Part: 86325107 *Qty: 1 TUBE EV1 $445.59
Location: 11 Prev | Next Part: 86325111 *Qty: 1 TUBE I RECIRCULATE KIT $395.06
Location: 12 Prev | Next Part: 86325141A *Qty: 1 STORAGE BATTERY $266.84
Location: 13 Prev | Next Part: 86325147 *Qty: 1 CLIP Call
Location: 14 Prev | Next Part: 86325153 *Qty: 1 BRACKETS $612.06
Location: 15 Prev | Next Part: 86325161 *Qty: 1 OIL TANK KIT $173.62
Location: 16 Prev | Next Part: 86325163 *Qty: 1 TUBE EV4 $440.99
Location: 17 Prev | Next Part: 86325165 *Qty: 1 TUBE EV5 $445.59
Location: 18 Prev | Next Part: 86325171 *Qty: 1 TUBE EVF $303.19
Location: 19 Prev | Next Part: 86325179 *Qty: 1 HIGH PRESSURE TUBE $54.20
Location: 20 Prev | Next Part: 86325181C *Qty: 1 VALVES GROUP $7,224.08
Location: 21 Prev | Next Part: 86325273 *Qty: 1 FEMALE CONNECTION (UNTIL THE VIN 6LA04009) $259.49
Location: 21 Prev | Next Part: 86325273A *Qty: 1 CONNECTION (FROM VIN 6LA04010) $279.10
Location: 22 Prev | Next Part: 86325293 *Qty: 1 ACTUATOR - VALVE PPV02 (PACKING + LIVES) $730.78
Location: 23 Prev | Next Part: 86325295 *Qty: 1 ACTUATOR - VALVE QPV02 (PACKING + LIVES) $808.15
Location: 24 Prev | Next Part: 86325297 *Qty: 1 ACTUATOR - VALVE QPV02 (PACKING + LIVES) $808.24
Location: 25 Prev | Next Part: 86901137 *Qty: 1 ELECTRIC PUMP KIT Call
Location: 26 Prev | Next Part: 86907811 *Qty: 1 POSITION SENSORS KIT $719.94
Location: 27 Prev | Next Part: 86919331 *Qty: 1 PRESSURE SENSOR $346.49
Location: 28 Prev | Next Part: 408326125 *Qty: 1 BRACKET $19.99
Location: 29 Prev | Next Part: 408326127 *Qty: 1 CLAMP $147.54
Location: 30 Prev | Next Part: 408326129 *Qty: 1 RUBBER COLLAR $22.62
Location: 31 Prev | Next Part: 408326131 *Qty: 1 RUBBER GASKET $20.97
Location: 32 Prev | Next Part: 7L115673 *Qty: 1 TUBE $661.40
Location: 33 Prev | Next Part: 86325831A *Qty: 2 CLAMP $4.53
Location: 34 Prev | Next Part: 86325831B *Qty: 2 CLAMP Call
Location: 35 Prev | Next Part: 408326131A *Qty: 1 RUBBER GASKET $20.35
Location: 36 Prev | Next Part: 86010530 *Qty: 1 NAMEPLATE $7.10
Location: 37 Prev | Next Part: 400971850B *Qty: 2 CLAMP $1.49
Location: 38 Prev | Next Part: 86398199A *Qty: 3 BLEEDER $53.72
Location: 39 Prev | Next Part: 86325191 *Qty: 1 BRACKET $7.03
Location: 40 Prev | Next Part: N91065401 *Qty: 2 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
