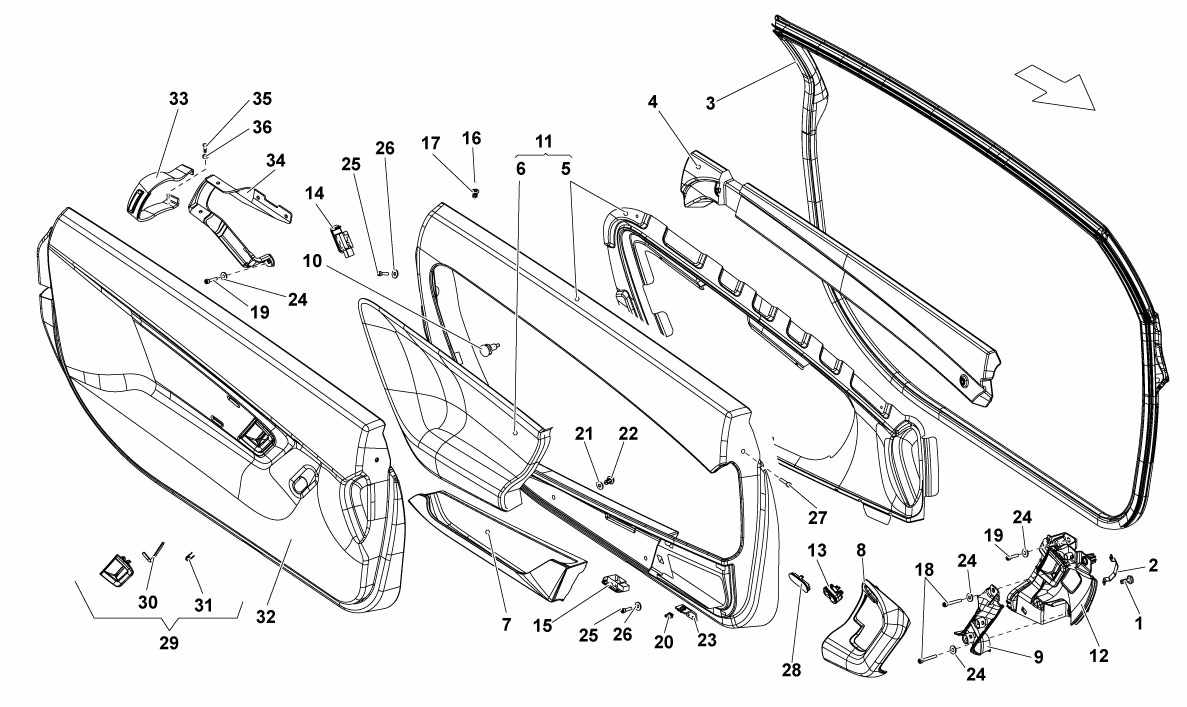

Location Part # *Qty Description Price Add To Cart
Location: 3 Prev | Next Part: 400831708 *Qty: 1 DOOR WEATHERSTRIP INNER $214.48
Location: 3 Prev | Next Part: 400831707 *Qty: 1 DOOR WEATHERSTRIP INNER $214.48
Location: 4 Prev | Next Part: 400837968C *Qty: 1 DOOR CRASH PAD $52.96
Location: 4 Prev | Next Part: 400837967C *Qty: 1 DOOR CRASH PAD $52.96
Location: 5 Prev | Next Part: *Qty: 1 ASSEMBLY DOOR PANEL (VALID FOR A DIFFERENT MODEL) Call
Location: 6 Prev | Next Part: *Qty: 1 UPHOLSTERY ASSEMBLY FOR DOOR INTERIOR (VALID FOR A DIFFERENT MODEL) Call
Location: 7 Prev | Next Part: *Qty: 0 POCKET (VALID FOR A DIFFERENT MODEL) Call
Location: 8 Prev | Next Part: *Qty: 0 HANDLE UPPER PORTION (VALID FOR A DIFFERENT MODEL) Call
Location: 9 Prev | Next Part: *Qty: 0 HANDLE CENTER PORTION (VALID FOR A DIFFERENT MODEL) Call
Location: 11 Prev | Next Part: *Qty: 0 RH DOOR PANEL ASSEMBLY (VALID FOR A DIFFERENT MODEL) Call
Location: 12 Prev | Next Part: *Qty: 0 INNER HANDLE WITH GRID (VALID FOR A DIFFERENT MODEL) Call
Location: 13 Prev | Next Part: 400962107B *Qty: 2 DOOR LOCK/UNLOCK SWITCH (WITHOUT SERIGRAPHY) $29.13
Location: 13 Prev | Next Part: 400962107A *Qty: 2 DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY) $29.33
Location: 14 Prev | Next Part: 400947411A *Qty: 2 DOOR CLEARANCE LIGHT $6.51
Location: 15 Prev | Next Part: 4B0947415A *Qty: 2 DOOR COURTESY LIGHT $16.37
Location: 16 Prev | Next Part: 8N0919238 *Qty: 1 ANTITHEFT LED $34.72
Location: 17 Prev | Next Part: 8Z0919242 *Qty: 2 ANTITHEFT LED BUSHING $1.54
Location: 18 Prev | Next Part: *Qty: 0 SCREW M 5X55.0 (VALID FOR A DIFFERENT MODEL) Call
Location: 19 Prev | Next Part: N10544301 *Qty: 2 SCREW M 5X25 $0.90
Location: 20 Prev | Next Part: *Qty: 2 CLIP (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 23 Prev | Next Part: *Qty: 1 LH BRACKET (VALID FOR A DIFFERENT MODEL) Call
Location: 24 Prev | Next Part: *Qty: 6 WASHER (VALID FOR A DIFFERENT MODEL) Call
Location: 25 Prev | Next Part: WHT000756 *Qty: 2 SCREW M 5X16 $0.90
Location: 26 Prev | Next Part: WHT000778 *Qty: 2 WASHER $0.90
Location: 27 Prev | Next Part: N10621601 *Qty: 2 SCREW M 4X12 $0.90
Location: 29 Prev | Next Part: 400837116B *Qty: 1 RH HANDLE KIT (DECORLACK PAINTED) $660.61
Location: 29 Prev | Next Part: 400837116A *Qty: 1 RH HANDLE KIT (CARBON INTERIOR) $1,406.89
Location: 29 Prev | Next Part: 400837115B *Qty: 1 LH HANDLE KIT (DECORLACK PAINTED) $660.61
Location: 29 Prev | Next Part: 400837115A *Qty: 1 LH HANDLE KIT (CARBON INTERIOR) $1,406.89
Location: 30 Prev | Next Part: *Qty: 2 JOURNAL (CANNOT BE SOLD SEPARATELY - SEE REF. 29) Call
Location: 31 Prev | Next Part: *Qty: 0 SPRING (CANNOT BE SOLD SEPARATELY - SEE REF. 29) Call
Location: 32 Prev | Next Part: 403867105E *Qty: 1 LH DOOR PANEL ASSEMBLY (WITH PREDISPOSITION FOR LOUDSPEAKER) $12,413.72
Location: 32 Prev | Next Part: 403867105D *Qty: 1 LH DOOR PANEL ASSEMBLY (WITHAUT PREDISPOSITION FOR LOUDSPEAKER) $11,663.60
Location: 32 Prev | Next Part: 403867106D *Qty: 1 RH DOOR PANEL ASSEMBLY (WITHAUT PREDISPOSITION FOR LOUDSPEAKER) $11,663.60
Location: 32 Prev | Next Part: 403867106E *Qty: 1 RH DOOR PANEL ASSEMBLY (WITH PREDISPOSITION FOR LOUDSPEAKER) $12,413.72
Location: 33 Prev | Next Part: 403837221 *Qty: 1 LH HANDLE $713.45
Location: 33 Prev | Next Part: 403837222 *Qty: 1 RH HANDLE $713.45
Location: 34 Prev | Next Part: 403837896 *Qty: 1 RH BRACKET $671.90
Location: 34 Prev | Next Part: 403837895 *Qty: 1 LH BRACKET $671.90
Location: 35 Prev | Next Part: *Qty: 4 SCREW Call
Location: 36 Prev | Next Part: *Qty: 4 NUT Call

* Quantity shown indicates the number of pieces used in the diagram.
