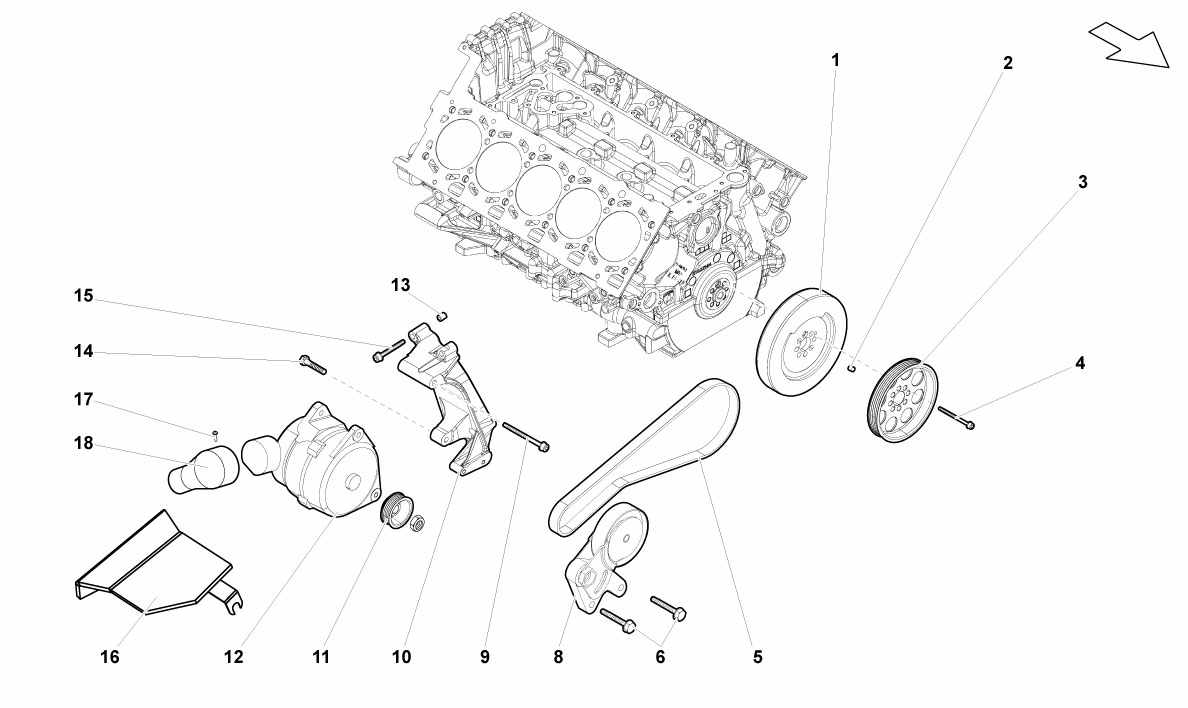

ALTERNATOR AND STRAPS

Go to Split View

ALTERNATOR AND STRAPS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L105251L *Qty: 1 DAMPER $416.80
Location: 2 Prev | Next Part: 78260817 *Qty: 3 BUSHING $1.21
Location: 3 Prev | Next Part: 7L105253B *Qty: 1 PULLEY $214.69
Location: 4 Prev | Next Part: N10572203 *Qty: 8 SCREW $11.92
Location: 5 Prev | Next Part: 7L903137C *Qty: 1 BELT $39.27
Location: 6 Prev | Next Part: N0903168 *Qty: 2 SCREW $0.99
Location: 8 Prev | Next Part: 79903133E *Qty: 1 CHAIN TIGHTENER $150.29
Location: 9 Prev | Next Part: N10207602 *Qty: 1 SCREW $5.70
Location: 10 Prev | Next Part: 7L903805Q *Qty: 1 SUPPORT $211.83
Location: 11 Prev | Next Part: 7L903165E *Qty: 1 PULLEY $117.04
Location: 12 Prev | Next Part: 77903015P *Qty: 1 ALTERNATOR (150 A) $2,775.94
Location: 13 Prev | Next Part: 77115143 *Qty: 2 BUSHING $3.34
Location: 14 Prev | Next Part: N90941703 *Qty: 2 SCREW $1.64
Location: 15 Prev | Next Part: N91025301 *Qty: 2 SCREW M10X52 $1.46
Location: 16 Prev | Next Part: 7L145325 *Qty: 1 HEAT SHIELD $222.41
Location: 17 Prev | Next Part: N90986803 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 7L903791 *Qty: 1 CONNECTOR $16.20

* Quantity shown indicates the number of pieces used in the diagram.
