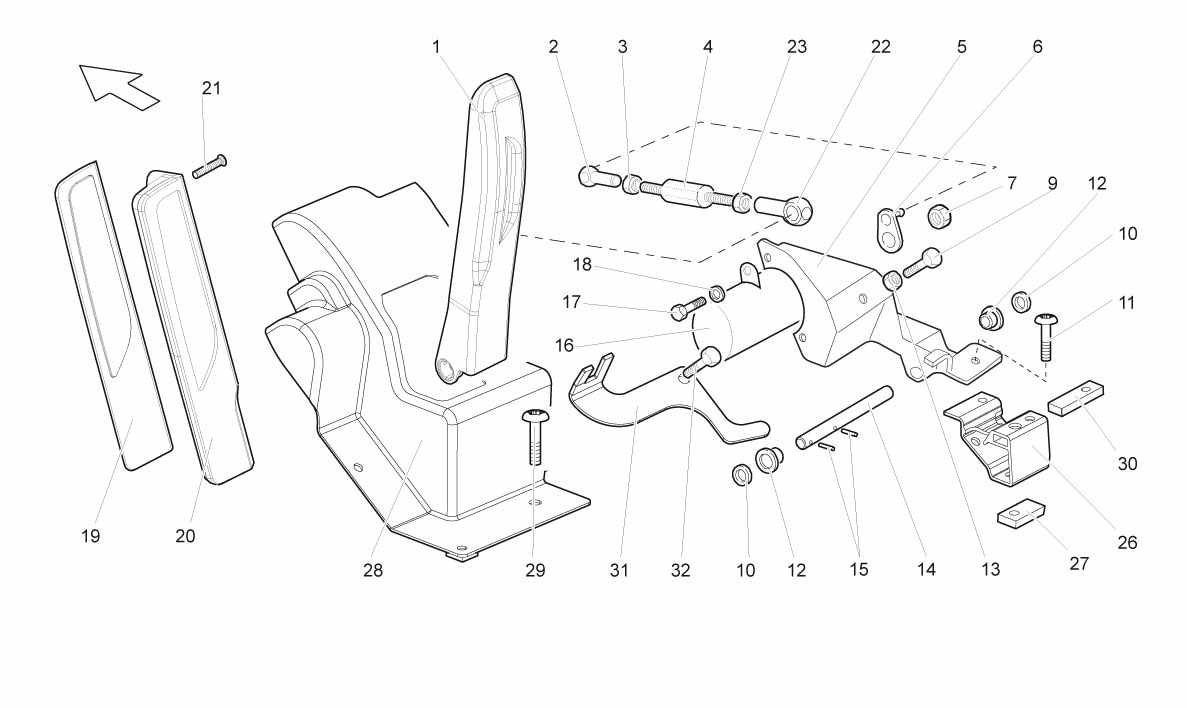

ACCELERATOR PEDAL (MANUAL)

Go to Split View

ACCELERATOR PEDAL (MANUAL)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400721507A *Qty: 1 ACCELERATOR PEDAL $129.21
Location: 2 Prev | Next Part: 400721214E *Qty: 1 BALL JOINT COUPLING (LEFT HAND THREAD) $41.73
Location: 3 Prev | Next Part: 8200504 *Qty: 2 NUT (LEFT HAND THREAD) $15.13
Location: 4 Prev | Next Part: 400721743A *Qty: 1 SHAFT $31.05
Location: 5 Prev | Next Part: 400721651A *Qty: 1 ACCELERATOR PEDAL $122.33
Location: 6 Prev | Next Part: 400721728B *Qty: 1 LEVER $49.04
Location: 7 Prev | Next Part: N01508213 *Qty: 1 NUT $0.90
Location: 9 Prev | Next Part: N01024718 *Qty: 1 SCREW M8X35 $1.26
Location: 10 Prev | Next Part: WHT000697 *Qty: 2 WASHER 13X22X03 $0.90
Location: 11 Prev | Next Part: N91000203 *Qty: 6 SCREW M8X25 $4.03
Location: 12 Prev | Next Part: 400721543 *Qty: 2 BUSHING $21.36
Location: 13 Prev | Next Part: N01100845 *Qty: 1 NUT $0.90
Location: 14 Prev | Next Part: 400721157 *Qty: 1 JOURNAL $25.55
Location: 15 Prev | Next Part: N10206801 *Qty: 2 PIN $0.90
Location: 16 Prev | Next Part: 400907475A *Qty: 1 POTENTIOMETER $1,544.69
Location: 17 Prev | Next Part: N10546402 *Qty: 2 SCREW M6X16 $0.90
Location: 18 Prev | Next Part: 8400628 *Qty: 2 WASHER 6X12X1 $0.90
Location: 19 Prev | Next Part: 401864431A *Qty: 1 RUBBER $33.78
Location: 20 Prev | Next Part: 401864419C *Qty: 1 FOOTREST PEDAL COVER $29.81
Location: 21 Prev | Next Part: N10555901 *Qty: 2 SCREW M6X40 $0.90
Location: 22 Prev | Next Part: 400721214D *Qty: 1 BALL JOINT COUPLING $33.90
Location: 23 Prev | Next Part: N01100520 *Qty: 2 NUT M5X08X4 $0.90
Location: 26 Prev | Next Part: 400803427A *Qty: 1 U-BOLT $54.96
Location: 27 Prev | Next Part: 401803016A *Qty: 1 PLATE $63.54
Location: 28 Prev | Next Part: 401721585A *Qty: 1 ACCELERATOR COVER BOX $106.59
Location: 29 Prev | Next Part: N91000203 *Qty: 1 SCREW M8X25 $4.03
Location: 29 Prev | Next Part: N91032702 *Qty: 2 SCREW M6X20 $0.90
Location: 30 Prev | Next Part: 400723325B *Qty: 1 PLATE $25.84
Location: 31 Prev | Next Part: 402971890A *Qty: 1 BRACKET $29.13
Location: 32 Prev | Next Part: N90847903 *Qty: 1 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
