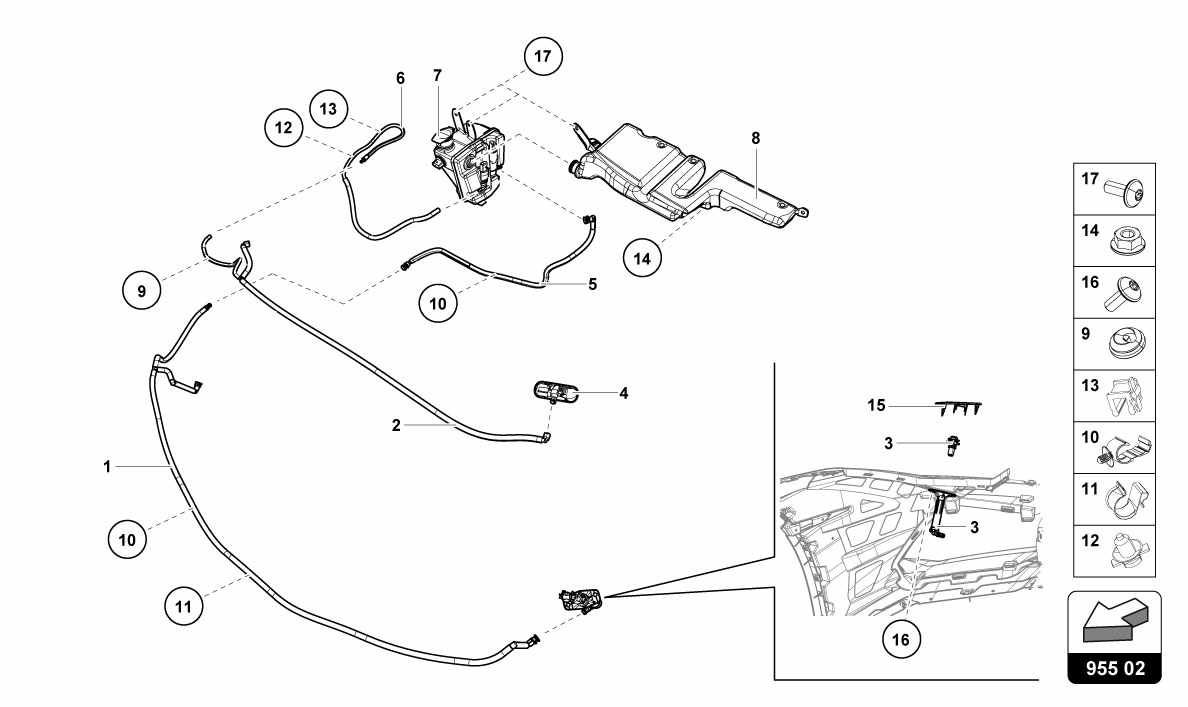

WINDSCREEN - HEADLIGHT WASHER SYSTEM

Go to Split View

WINDSCREEN - HEADLIGHT WASHER SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T0955970 *Qty: 1 PIPES/CONNECTORS SET FOR HEADLIGHT WASHERS $51.57
Location: 2 Prev | Next Part: 4T0955964A *Qty: 1 PIPE $65.76
Location: 3 Prev | Next Part: *Qty: 1 PUMP FOR HEADLIGHT WASHERS (TEMPORARILY NOT AVAILABLE) Call
Location: 4 Prev | Next Part: 5M0955985C *Qty: 2 WATER JET $11.99
Location: 4 Prev | Next Part: 5M0955986C *Qty: 2 WATER JET $32.33
Location: 5 Prev | Next Part: 4T0955962 *Qty: 1 PIPE $16.93
Location: 6 Prev | Next Part: 4T0955972A *Qty: 1 CORRUGATED PIPE WINDSCREEN WASHER SYSTEM $32.90
Location: 7 Prev | Next Part: 4T1955449A *Qty: 1 WASHER RESERVOIR ASSEMBLY Call
Location: 8 Prev | Next Part: 4T1955945A *Qty: 1 WASHER RESERVOIR $45.57
Location: 9 Prev | Next Part: 420955997 *Qty: 1 FAIRLEAD $7.61
Location: 10 Prev | Next Part: N90681601 *Qty: 2 CLAMP $0.90
Location: 11 Prev | Next Part: 1J0955846 *Qty: 2 CLAMP $0.90
Location: 12 Prev | Next Part: 3D0971838K *Qty: 2 CLAMP $0.90
Location: 13 Prev | Next Part: 7L5971847B *Qty: 2 CLAMP $1.90
Location: 14 Prev | Next Part: N91173301 *Qty: 2 NUT M6 $0.90
Location: 15 Prev | Next Part: 4T0955259 *Qty: 1 GASKET $122.16
Location: 15 Prev | Next Part: 4T0955260 *Qty: 1 GASKET $122.16
Location: 16 Prev | Next Part: N90698605 *Qty: 2 SCREW M8X20 $0.90
Location: 17 Prev | Next Part: N91042302 *Qty: 2 SCREW TP4.2X16 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
