WATER OIL PUMP

Go to Split View

WATER OIL PUMP

in cart

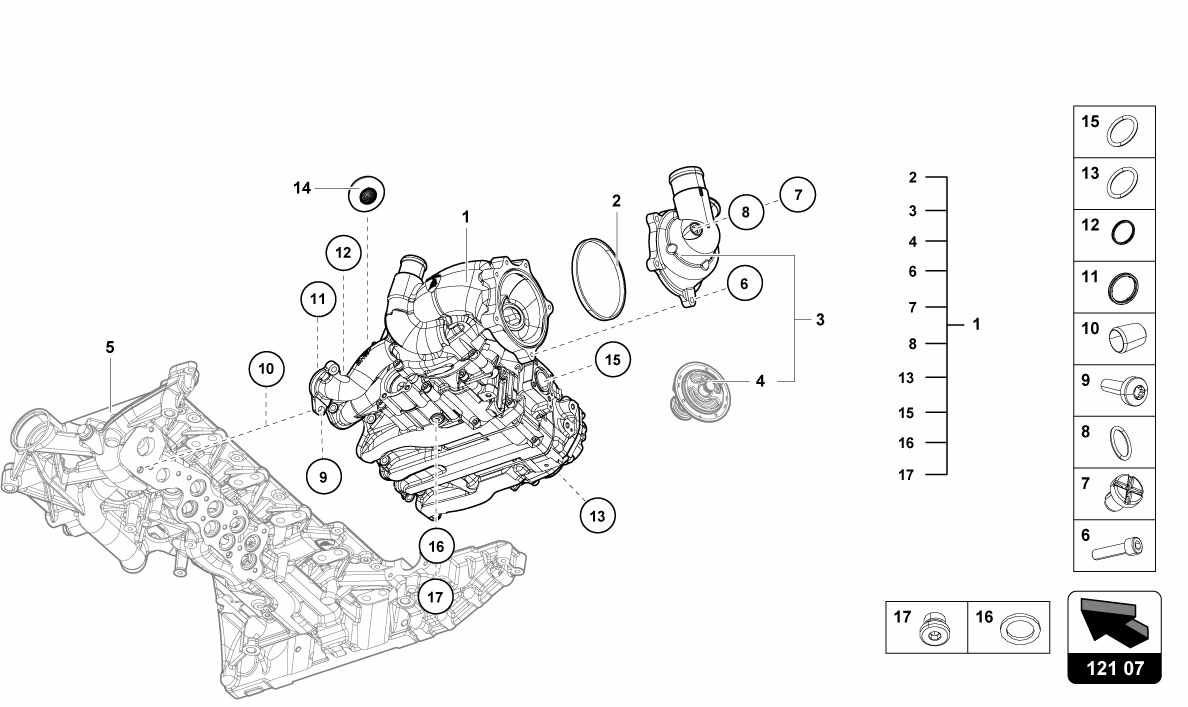

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L115009A *Qty: 1 PUMP ASSEMBLY Call
Location: 2 Prev | Next Part: 79121119C *Qty: 1 O-RING $9.18
Location: 3 Prev | Next Part: 79121115A *Qty: 1 Call
Location: 4 Prev | Next Part: *Qty: 1 THERMOSTAT (CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 3) Call
Location: 5 Prev | Next Part: *Qty: 1 ENGINE OIL PAN (SEE TABLE 103.01.00) Call
Location: 6 Prev | Next Part: WHT003868 *Qty: 1 SCREW (M6x25) $6.28
Location: 7 Prev | Next Part: WHT003874 *Qty: 1 PLUG (M10X1) $4.30
Location: 8 Prev | Next Part: *Qty: 1 GASKET (CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 7) Call
Location: 9 Prev | Next Part: N10700201 *Qty: 1 SCREW (M6x22) $0.90
Location: 10 Prev | Next Part: N91020803 *Qty: 1 CENTRE SLEEVE (8M7x10) Call
Location: 11 Prev | Next Part: 7L121119B *Qty: 1 GASKET $16.29
Location: 12 Prev | Next Part: 7L115446A *Qty: 1 GASKET $15.63
Location: 13 Prev | Next Part: WHT003731 *Qty: 1 O-RING (27X3.5) $10.83
Location: 14 Prev | Next Part: 7L103081 *Qty: 1 FILTER $22.07
Location: 15 Prev | Next Part: WHT003732 *Qty: 1 O-RING (24X3.5) $10.83
Location: 16 Prev | Next Part: N0138115 *Qty: 1 GASKET (10x13.5) $0.90
Location: 17 Prev | Next Part: N0160243 *Qty: 1 PLUG (M10x1) Call

* Quantity shown indicates the number of pieces used in the diagram.
