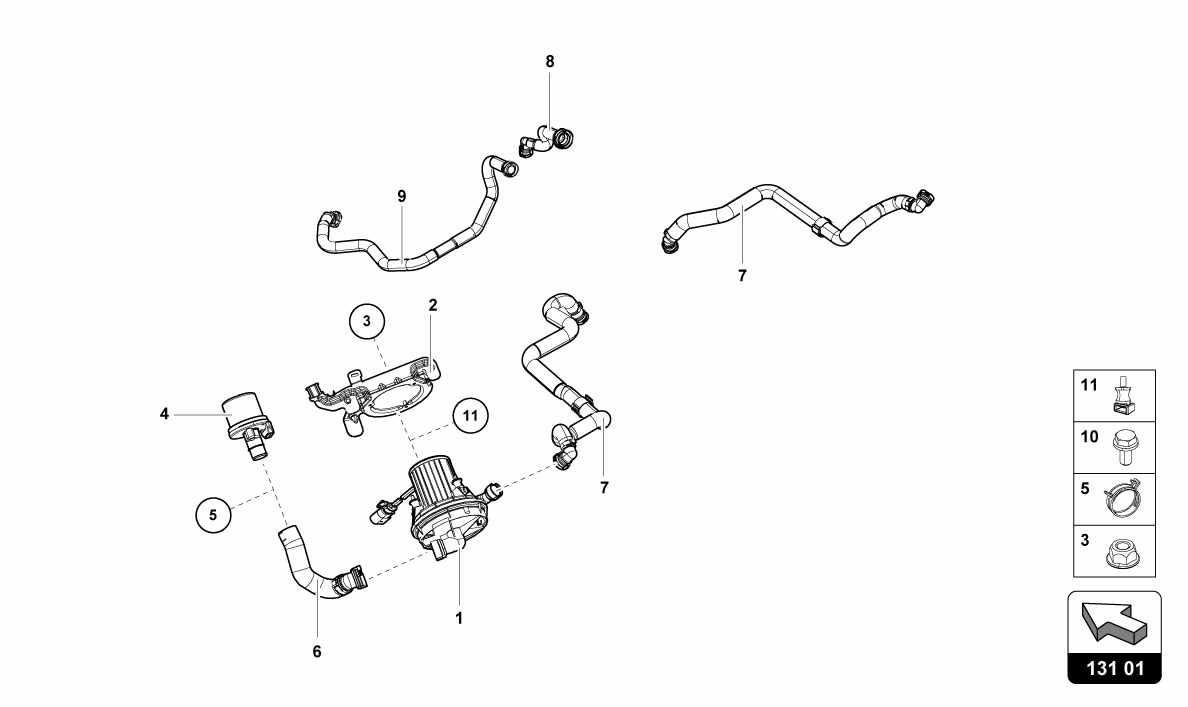

SECONDARY AIR SYSTEM

Go to Split View

SECONDARY AIR SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4S0906601 *Qty: 2 PUMP $381.13
Location: 2 Prev | Next Part: 4S0906407D *Qty: 1 LH SUPPORT Call
Location: 2 Prev | Next Part: 4S0906408D *Qty: 1 RH SUPPORT $34.57
Location: 3 Prev | Next Part: N90488004 *Qty: 6 NUT (M6) $0.90
Location: 4 Prev | Next Part: 420906321 *Qty: 2 FILTER $36.46
Location: 5 Prev | Next Part: 6A145917 *Qty: 1 CLAMP $1.41
Location: 6 Prev | Next Part: 4S0131461 *Qty: 1 LH PIPE $24.64
Location: 6 Prev | Next Part: 4S0131461 *Qty: 1 RH PIPE $24.64
Location: 7 Prev | Next Part: 4S0131605A *Qty: 1 RH PIPE $59.36
Location: 7 Prev | Next Part: 4S0131605B *Qty: 1 LH PIPE $59.36
Location: 8 Prev | Next Part: 4S0103211 *Qty: 1 PIPE $19.76
Location: 9 Prev | Next Part: 4S0103218B *Qty: 1 PIPE $27.03
Location: 10 Prev | Next Part: N10124304 *Qty: 14 SCREW M6X20 $0.90
Location: 11 Prev | Next Part: 6A133567F *Qty: 6 BUFFER Call

* Quantity shown indicates the number of pieces used in the diagram.
