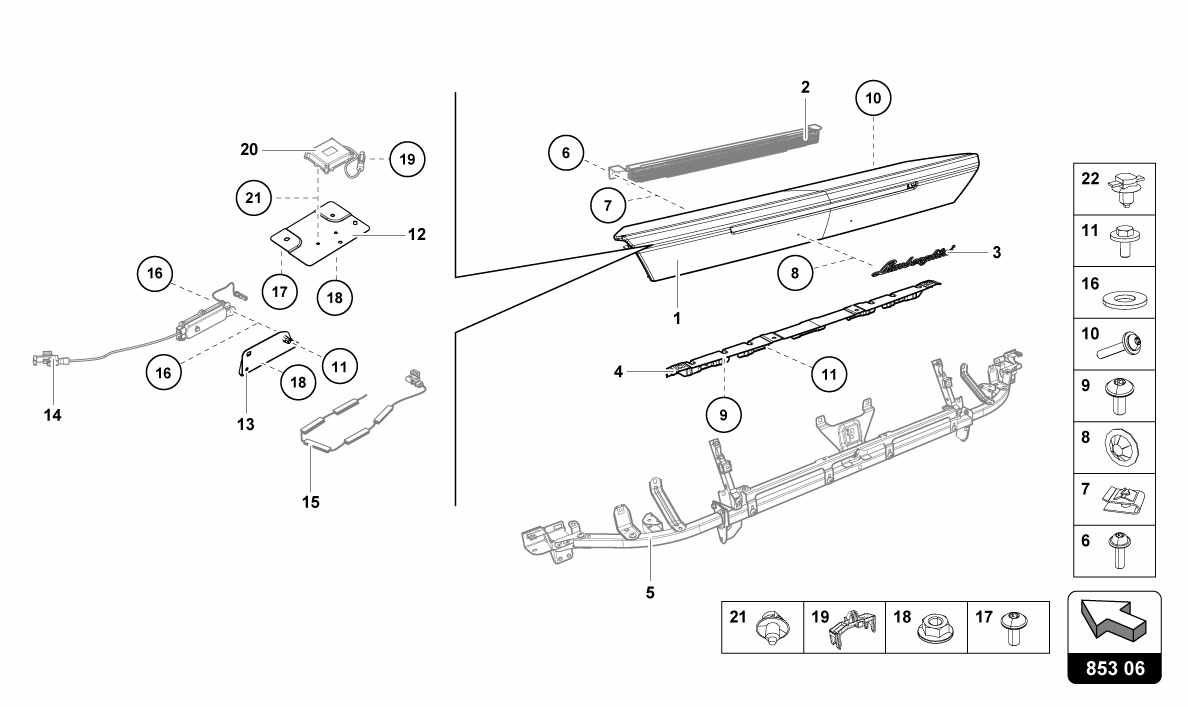

REAR PANEL UPPER

Go to Split View

REAR PANEL UPPER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T0864487B *Qty: 1 REAR PANEL UPPER $4,096.64
Location: 2 Prev | Next Part: *Qty: 0 STOP LAMP (SEE TABLE 945.01.00) Call
Location: 3 Prev | Next Part: 4T0853742 *Qty: 2 LOGO LAMBORGHINI (STD) $45.93
Location: 4 Prev | Next Part: 4T0807498B *Qty: 1 SUPPORT $104.68
Location: 5 Prev | Next Part: *Qty: 0 REAR BUMPERS CROSSMEMBER (SEE TABLE 807.02.00) Call
Location: 6 Prev | Next Part: N91085101 *Qty: 4 SCREW (M5X16) $0.90
Location: 7 Prev | Next Part: N90777702 *Qty: 4 CLAMP (M5X13.6X11.5) $0.90
Location: 8 Prev | Next Part: 400853139 *Qty: 4 STARLOCK $0.90
Location: 9 Prev | Next Part: N91042301 *Qty: 4 SCREW (M6X16) $0.90
Location: 10 Prev | Next Part: N10442204 *Qty: 4 SCREW (M6X40) $1.21
Location: 11 Prev | Next Part: N10653201 *Qty: 4 SCREW (M6X18) $0.90
Location: 12 Prev | Next Part: 4T0035464B *Qty: 1 BRACKET $25.35
Location: 13 Prev | Next Part: 4T0035935B *Qty: 1 BRACKET $15.31
Location: 14 Prev | Next Part: *Qty: 0 AM/FM AMPLIFIER (SEE TABLE 035.02.00) Call
Location: 15 Prev | Next Part: *Qty: 0 ANTENNA (SEE TABLE 035.02.00) Call
Location: 16 Prev | Next Part: N90225901 *Qty: 2 WASHER $0.90
Location: 17 Prev | Next Part: N90910102 *Qty: 4 SCREW (M6X20) $0.90
Location: 18 Prev | Next Part: N10017307 *Qty: 4 NUT (M5) $0.90
Location: 19 Prev | Next Part: 1K0937545M *Qty: 8 CLIP $1.54
Location: 20 Prev | Next Part: *Qty: 0 ANTENNA SAT (SEE TABLE 035.02.00) Call
Location: 21 Prev | Next Part: 3W0971838 *Qty: 2 CLIP $0.90
Location: 22 Prev | Next Part: 3D0971838K *Qty: 2 CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
