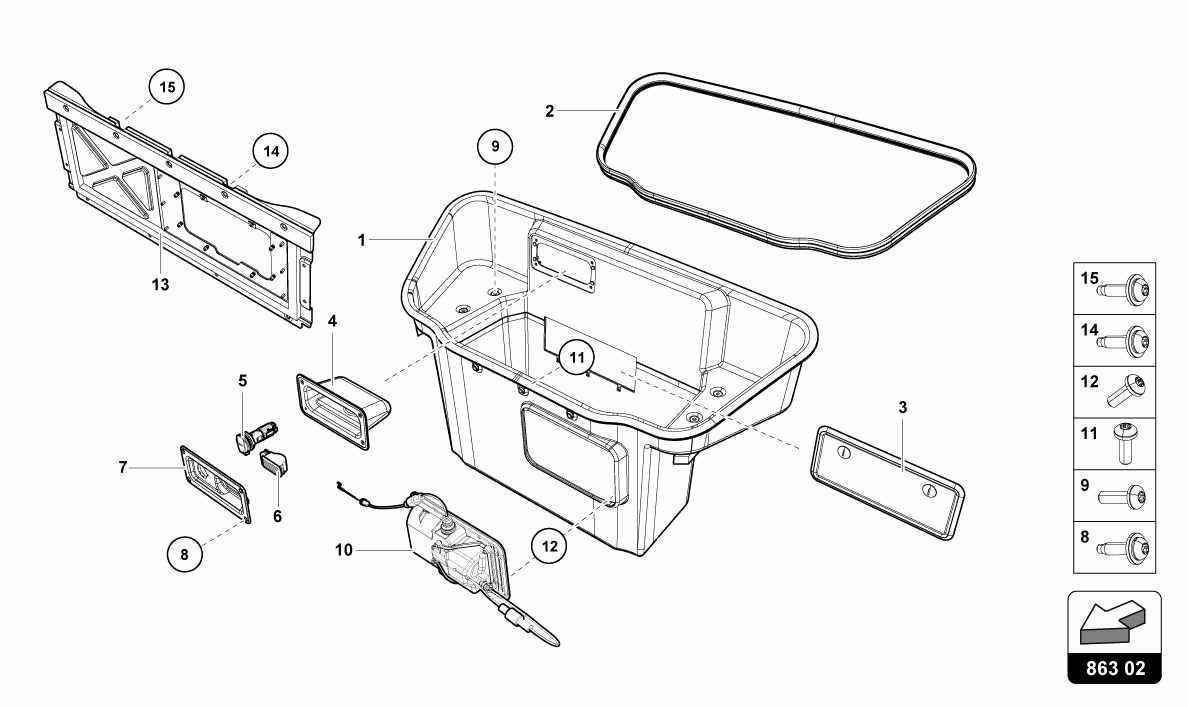

LUGGAGE BOOT TRIMS USA

Go to Split View

LUGGAGE BOOT TRIMS USA

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T0863362A *Qty: 1 LUGGAGE COMPARTMENT TRIM Call
Location: 2 Prev | Next Part: 4T0823727B *Qty: 1 SEAL BONNET $96.60
Location: 3 Prev | Next Part: 4T0863440B *Qty: 1 BATTERY COVER $104.93
Location: 4 Prev | Next Part: 4T0863571A *Qty: 1 FOLDING 12V $82.43
Location: 5 Prev | Next Part: 4E0919299 *Qty: 1 OUTLET 12V $11.38
Location: 6 Prev | Next Part: 4B0947415A *Qty: 1 LIGHT $16.37
Location: 7 Prev | Next Part: 4T0863387 *Qty: 1 FRAME Call
Location: 8 Prev | Next Part: N10720101 *Qty: 4 SCREW (M4X18) $0.90
Location: 9 Prev | Next Part: N90917105 *Qty: 6 SCREW (M5X25) $0.90
Location: 10 Prev | Next Part: 4T0880701A *Qty: 1 TRUNK ENTRAPMENT SYSTEM Call
Location: 11 Prev | Next Part: N91198201 *Qty: 3 SCREW (M5X28) Call
Location: 12 Prev | Next Part: *Qty: 6 SCREW Call
Location: 13 Prev | Next Part: 4T0863635B *Qty: 1 LINING FRONT PANEL Call
Location: 14 Prev | Next Part: N10680601 *Qty: 10 SCREW (M5X30) $0.90
Location: 15 Prev | Next Part: N10473203 *Qty: 3 SCREW (M5X20) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
