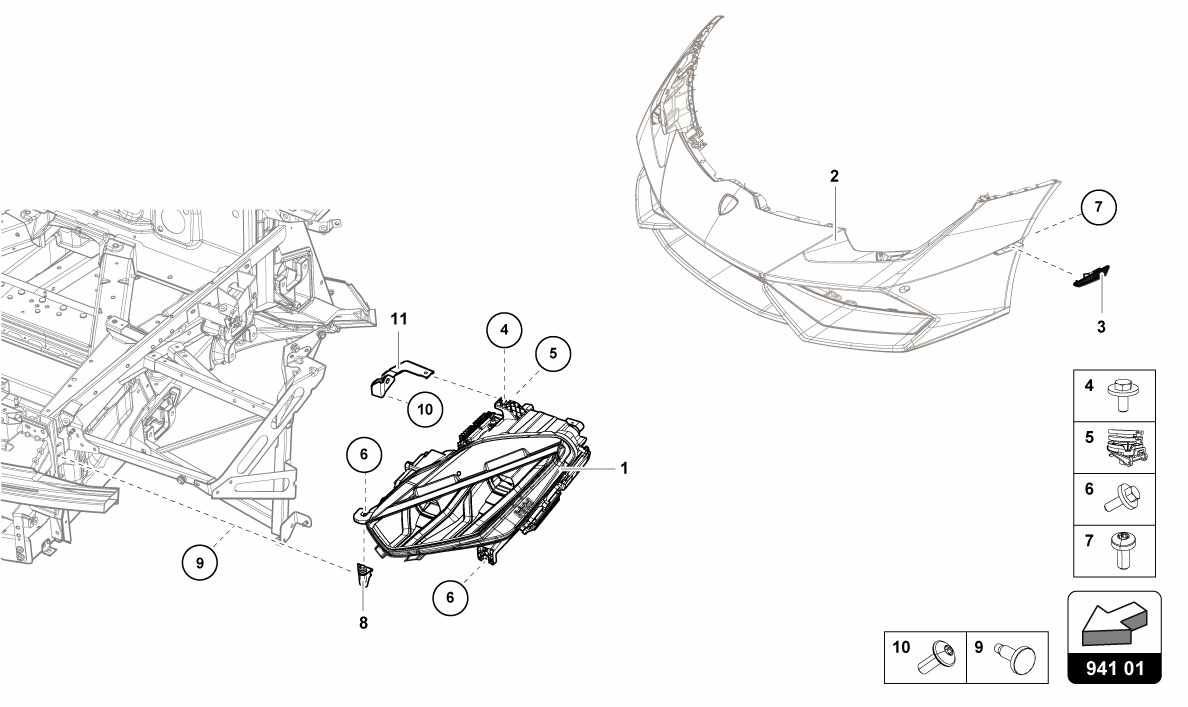

FRONT LIGHTS

Go to Split View

FRONT LIGHTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T0941003F *Qty: 1 HEADLIGHT. LH $6,708.73
Location: 1 Prev | Next Part: 4T0941004F *Qty: 1 HEADLIGHT. RH $6,708.73
Location: 2 Prev | Next Part: *Qty: 1 FRONT BUMPERS (SEE TABLE 807.01.00) Call
Location: 3 Prev | Next Part: 4T0945119C *Qty: 1 FRONT LEFT SIDE MARKER $136.74
Location: 3 Prev | Next Part: 4T0945120C *Qty: 1 FRONT RIGHT SIDE MARKER $136.74
Location: 4 Prev | Next Part: N90965702 *Qty: 2 SCREW (M6X35) $0.90
Location: 5 Prev | Next Part: 8E0806193 *Qty: 2 HEADLIGHT REGULATION BUSHING $11.33
Location: 6 Prev | Next Part: N10442204 *Qty: 4 SCREW (M5X40) $1.21
Location: 7 Prev | Next Part: N10673701 *Qty: 4 SCREW (ST4.2x9.5) $0.90
Location: 8 Prev | Next Part: 4T0805845B *Qty: 1 LEFT ALIGNMENT BRACKET $21.98
Location: 8 Prev | Next Part: 4T0805846B *Qty: 1 RIGHT ALIGNMENT BRACKET $21.98
Location: 9 Prev | Next Part: N10017304 *Qty: 4 NUT (M5) $0.90
Location: 10 Prev | Next Part: N91042302 *Qty: 5 SCREW (M6X16) $0.90
Location: 11 Prev | Next Part: 4T0805669B *Qty: 1 LH HOLDING BRACKET $90.53
Location: 11 Prev | Next Part: 4T0805670B *Qty: 1 RH HOLDING BRACKET $78.46

* Quantity shown indicates the number of pieces used in the diagram.
