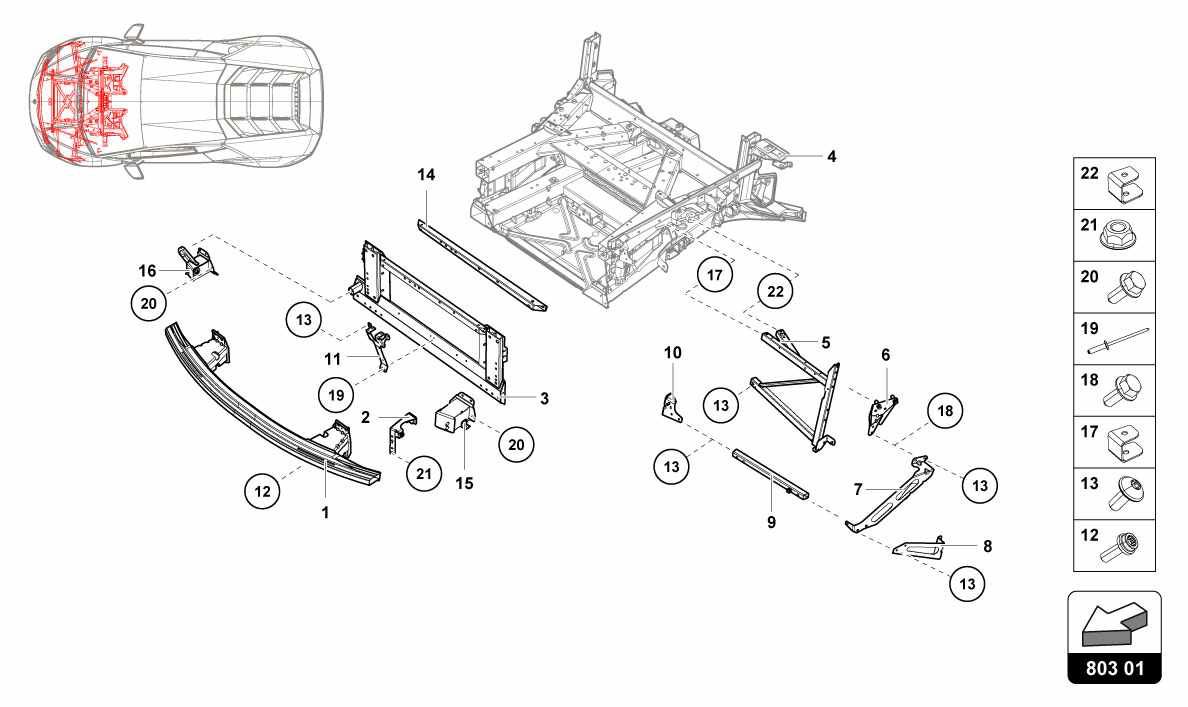

FRONT FRAME OUTER ELEMENTS

Go to Split View

FRONT FRAME OUTER ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T0807109D *Qty: 1 FRONT BUMPER BAR (SPECIAL ORDER ONLY) Call
Location: 2 Prev | Next Part: 4T0805177A *Qty: 1 LH BRACKET $59.34
Location: 2 Prev | Next Part: 4T0805178A *Qty: 1 RH BRACKET $59.34
Location: 3 Prev | Next Part: 4T0805851B *Qty: 1 FRONT BUMPERS CROSS MEMBER (SPECIAL ORDER ONLY) Call
Location: 4 Prev | Next Part: *Qty: 1 FRONT FRAME ASSEMBLY (SEE TABLE 803.02) Call
Location: 5 Prev | Next Part: 4T0806191B *Qty: 1 LEFT SUPPORT (SPECIAL ORDER ONLY) Call
Location: 5 Prev | Next Part: 4T0806192B *Qty: 1 RIGHT SUPPORT (SPECIAL ORDER ONLY) Call
Location: 6 Prev | Next Part: 4T0806125C *Qty: 1 RH BRACKET (SPECIAL ORDER ONLY) $53.74
Location: 6 Prev | Next Part: 4T0806126C *Qty: 1 LH BRACKET (SPECIAL ORDER ONLY) $54.24
Location: 7 Prev | Next Part: 4T0805327C *Qty: 1 LH BRACKET (SPECIAL ORDER ONLY) $46.28
Location: 7 Prev | Next Part: 4T0805328C *Qty: 1 RH BRACKET (SPECIAL ORDER ONLY) $46.28
Location: 8 Prev | Next Part: 4T0805379C *Qty: 1 LH BRACKET (SPECIAL ORDER ONLY) $45.03
Location: 8 Prev | Next Part: 4T0805380C *Qty: 1 RH BRACKET (SPECIAL ORDER ONLY) $45.03
Location: 9 Prev | Next Part: 4T0805667C *Qty: 1 FRONT LH REINFORCEMENT $79.34
Location: 9 Prev | Next Part: 4T0805668C *Qty: 1 FRONT RH REINFORCEMENT $79.34
Location: 10 Prev | Next Part: 4T0805255D *Qty: 1 FRONT LH REINFORCEMENT $76.01
Location: 10 Prev | Next Part: 4T0805256D *Qty: 1 FRONT RH REINFORCEMENT $35.05
Location: 11 Prev | Next Part: 4T0805532B *Qty: 1 BRACKET (SPECIAL ORDER ONLY) $47.89
Location: 12 Prev | Next Part: N91104901 *Qty: 4 SCREW (M8X25) $1.04
Location: 13 Prev | Next Part: N91042302 *Qty: 22 SCREW (M6X16) $0.90
Location: 14 Prev | Next Part: 4T0805563B *Qty: 1 CROSS MEMBER (SPECIAL ORDER ONLY) Call
Location: 15 Prev | Next Part: 4T0807551D *Qty: 1 BRACKET (SPECIAL ORDER ONLY) $210.41
Location: 16 Prev | Next Part: 4T0807552D *Qty: 1 BRACKET (SPECIAL ORDER ONLY) $256.05
Location: 17 Prev | Next Part: 4S0806507B *Qty: 1 LEFT SUPPORT $13.23
Location: 17 Prev | Next Part: 4S0806508B *Qty: 1 RIGHT SUPPORT $13.23
Location: 18 Prev | Next Part: N90533005 *Qty: 8 SCREW (M6X20) $0.90
Location: 19 Prev | Next Part: N90692402 *Qty: 2 RIVET (4.8X11.3) Call
Location: 20 Prev | Next Part: N10049308 *Qty: 7 SCREW (M8X20) $1.04
Location: 21 Prev | Next Part: N10609201 *Qty: 4 NUT (M8) $0.90
Location: 22 Prev | Next Part: 4S0805371B *Qty: 1 LEFT SUPPORT $7.69
Location: 22 Prev | Next Part: 4S0805372B *Qty: 1 RIGHT SUPPORT $7.69

* Quantity shown indicates the number of pieces used in the diagram.
