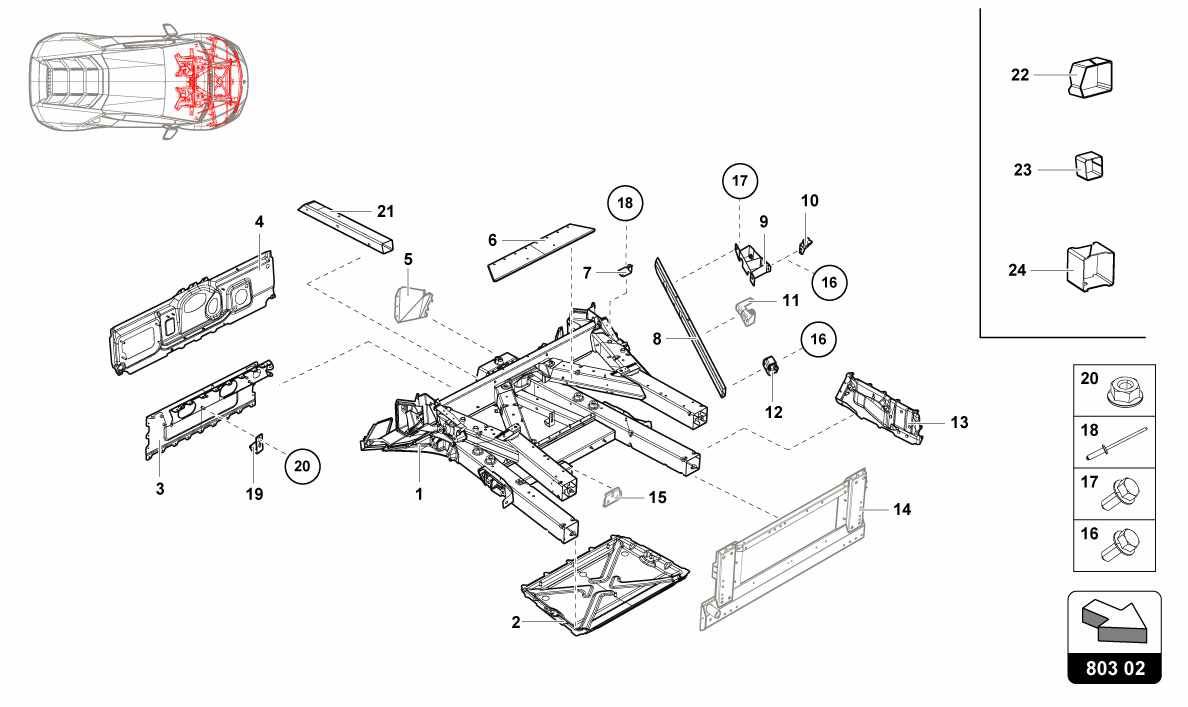

FRONT FRAME INNER ELEMENTS

Go to Split View

FRONT FRAME INNER ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T0805028K *Qty: 1 FRONT FRAME ASSEMBLY (SPECIAL ORDER ONLY-IT REFERS TO RIF.14) $7,093.55
Location: 2 Prev | Next Part: 4T0805303C *Qty: 1 SHEET $98.88
Location: 3 Prev | Next Part: 4S0805081C *Qty: 1 SHEET $95.08
Location: 4 Prev | Next Part: 4S1805431D *Qty: 1 SHEET Call
Location: 5 Prev | Next Part: 4S0805457B *Qty: 1 LH BRACKET $62.42
Location: 5 Prev | Next Part: 4S0805458B *Qty: 1 RH BRACKET $103.34
Location: 6 Prev | Next Part: 4T0805585D *Qty: 1 SHEET $43.82
Location: 7 Prev | Next Part: 4T0805913B *Qty: 1 LH BRACKET $20.92
Location: 7 Prev | Next Part: 4T1805914C *Qty: 1 RH BRACKET $25.35
Location: 8 Prev | Next Part: 4T0805157C *Qty: 1 FRONT LEFT SIDE MEMBER (SPECIAL ORDER ONLY) $82.26
Location: 8 Prev | Next Part: 4T0805158B *Qty: 1 FRONT RIGHT SIDE MEMBER (SPECIAL ORDER ONLY) Call
Location: 9 Prev | Next Part: 4T0806241D *Qty: 1 LH BRACKET $124.53
Location: 9 Prev | Next Part: 4T0806242D *Qty: 1 RH BRACKET $124.53
Location: 10 Prev | Next Part: 4T0805815C *Qty: 1 LEFT SUPPORT (SPECIAL ORDER ONLY) Call
Location: 10 Prev | Next Part: 4T0805816C *Qty: 1 RIGHT SUPPORT (SPECIAL ORDER ONLY) Call
Location: 11 Prev | Next Part: *Qty: 1 BRACKET (SEE TABLE 941.01) Call
Location: 12 Prev | Next Part: 4T0806811B *Qty: 1 LH BRACKET $16.54
Location: 12 Prev | Next Part: 4T0806812B *Qty: 1 RH BRACKET Call
Location: 13 Prev | Next Part: 4T0805063C *Qty: 1 LH SHEET $165.35
Location: 13 Prev | Next Part: 4T0805064C *Qty: 1 RH SHEET $165.35
Location: 14 Prev | Next Part: *Qty: 1 FRONT FRAME (SEE TABLE 803.01.00) Call
Location: 15 Prev | Next Part: *Qty: 1 BRACKET (SEE TABLE 915.01) Call
Location: 16 Prev | Next Part: N90533005 *Qty: 4 SCREW (M6X20) $0.90
Location: 17 Prev | Next Part: N90863802 *Qty: 4 SCREW (M8X22) $0.90
Location: 18 Prev | Next Part: N90692402 *Qty: 5 RIVET (4.8X11.3) Call
Location: 19 Prev | Next Part: 420805733 *Qty: 1 BRACKET $10.09
Location: 20 Prev | Next Part: N10609204 *Qty: 1 NUT (M8) $0.90
Location: 21 Prev | Next Part: 4S0806217C *Qty: 1 FRONT LEFT SIDE MEMBER (SPECIAL ORDER ONLY) Call
Location: 21 Prev | Next Part: 4S0806218C *Qty: 1 FRONT RIGHT SIDE MEMBER (SPECIAL ORDER ONLY) Call
Location: 22 Prev | Next Part: 4T0805245K *Qty: 1 LH REPAIR COMPONENT (SPECIAL ORDER ONLY) Call
Location: 22 Prev | Next Part: 4T0805246K *Qty: 1 RIGHT SUPPORT (SPECIAL ORDER ONLY) Call
Location: 22 Prev | Next Part: 4T0805509K *Qty: 1 LH REPAIR COMPONENT (SPECIAL ORDER ONLY) Call
Location: 22 Prev | Next Part: 4T0805510K *Qty: 1 RIGHT SUPPORT (RH REPAIR COMPONENT) Call
Location: 24 Prev | Next Part: 4T0805661K *Qty: 1 REPAIR COMPONENT (SPECIAL ORDER ONLY) Call

* Quantity shown indicates the number of pieces used in the diagram.
