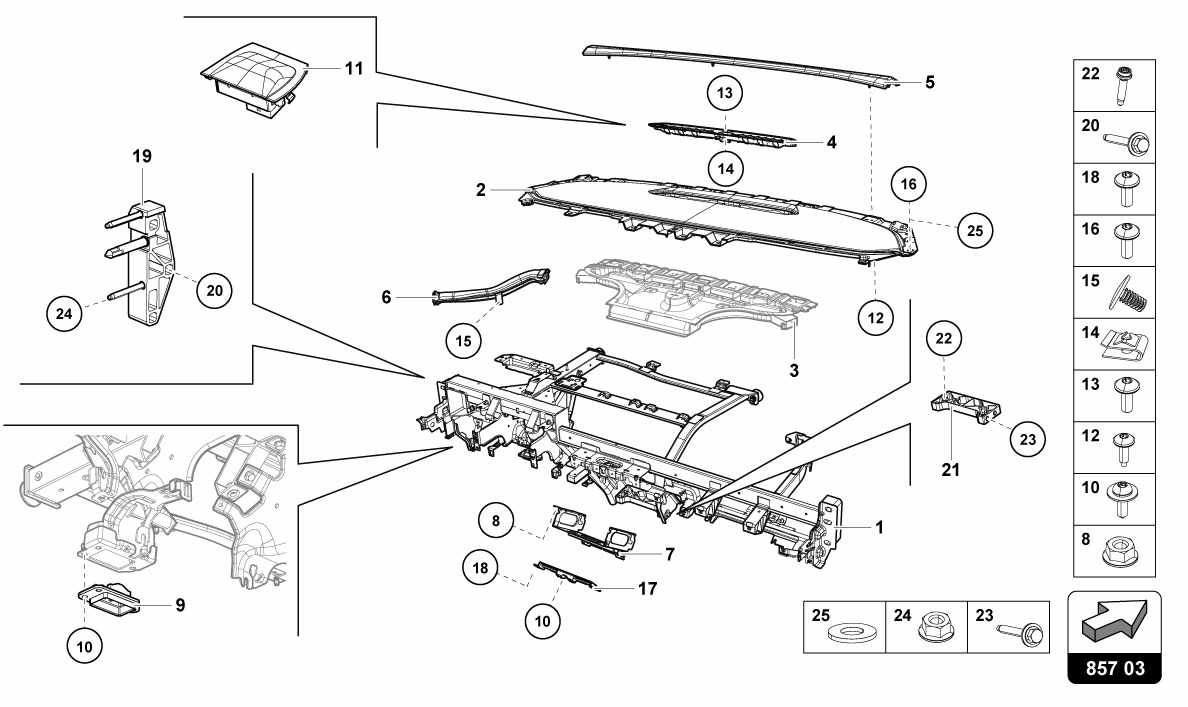

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T1858003C *Qty: 1 CROSS MEMBER Call
Location: 2 Prev | Next Part: 4T1857003A *Qty: 1 TRIM DASHBOARD (SUPPLY VIN ) $2,120.38
Location: 2 Prev | Next Part: 4T1857003C *Qty: 1 TRIM DASHBOARD (SUPPLY VIN ) $2,120.38
Location: 3 Prev | Next Part: *Qty: 1 LOWER DASHBOARD ASSEMBLY (CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 2) Call
Location: 4 Prev | Next Part: 4T0819632A *Qty: 1 CENTRAL GRID $125.70
Location: 5 Prev | Next Part: 4T0858345A *Qty: 1 COVER $543.69
Location: 6 Prev | Next Part: 4T1819869 *Qty: 1 LEFT AIR GUIDE $49.62
Location: 6 Prev | Next Part: 4T1819870 *Qty: 1 RIGHT AIR GUIDE $49.62
Location: 7 Prev | Next Part: 4T1035329 *Qty: 1 BRACKET RADIO Call
Location: 8 Prev | Next Part: *Qty: 4 NUT (M8) Call
Location: 9 Prev | Next Part: 470858357 *Qty: 1 FRAME - OBD $34.51
Location: 10 Prev | Next Part: N10738101 *Qty: 4 SCREW (M5X16) $0.90
Location: 11 Prev | Next Part: 4H0907539 *Qty: 4 SUNLOAD SENSOR $16.44
Location: 12 Prev | Next Part: N90897402 *Qty: 6 SCREW (TP5X16) $0.90
Location: 13 Prev | Next Part: N10738101 *Qty: 6 SCREW (M8X75) $0.90
Location: 14 Prev | Next Part: N01166623 *Qty: 2 CLIP $1.65
Location: 15 Prev | Next Part: 400863119 *Qty: 2 PIN $0.90
Location: 16 Prev | Next Part: N90944603 *Qty: 4 SCREW (M5X12) $0.90
Location: 17 Prev | Next Part: 4T0857167 *Qty: 1 BRACKET $22.54
Location: 18 Prev | Next Part: N10684701 *Qty: 4 SCREW (M5X20) $0.90
Location: 19 Prev | Next Part: 4S1857021A *Qty: 1 BRACKET $41.34
Location: 19 Prev | Next Part: 4S1857022A *Qty: 1 BRACKET $41.34
Location: 20 Prev | Next Part: N10770301 *Qty: 6 SCREW (M8X75) $1.24
Location: 21 Prev | Next Part: 4S0857245 *Qty: 1 BRACKET Call
Location: 22 Prev | Next Part: N90870602 *Qty: 4 SCREW (M8X35) $2.40
Location: 23 Prev | Next Part: N90966002 *Qty: 3 SCREW (M8X25) $1.50
Location: 24 Prev | Next Part: N90761103 *Qty: 4 NUT (M8) $0.90
Location: 25 Prev | Next Part: N91109201 *Qty: 4 WASHER (5.3X20X1) $5.44

* Quantity shown indicates the number of pieces used in the diagram.
