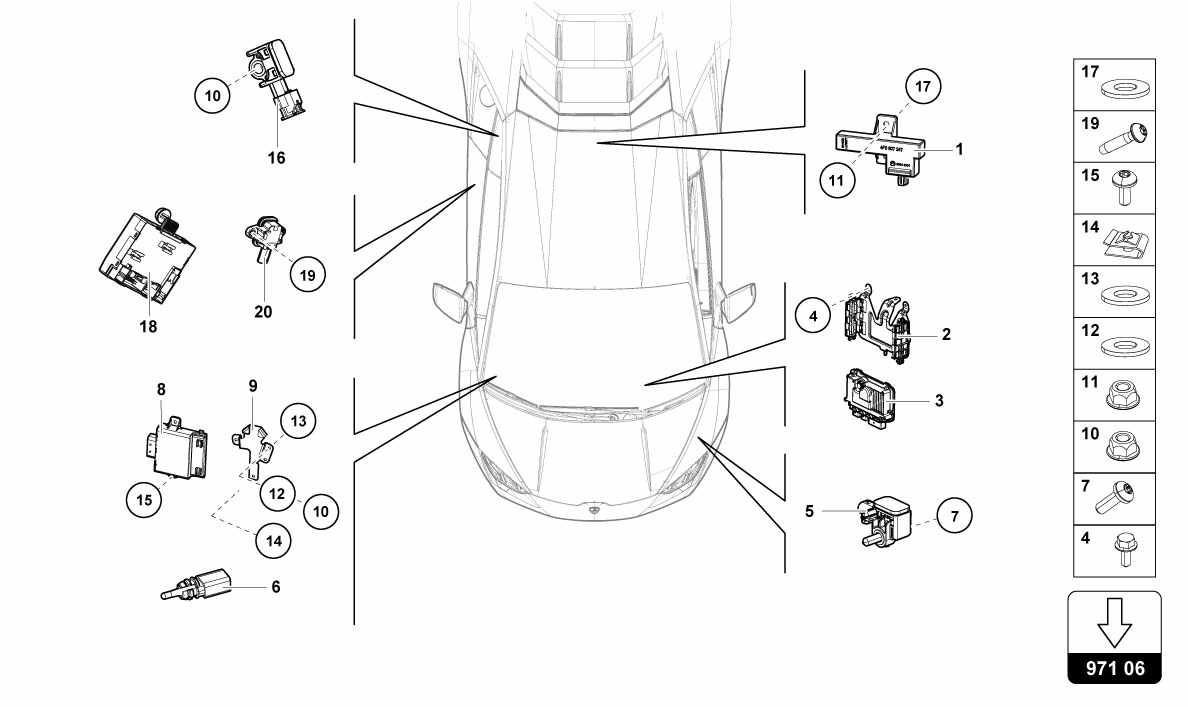

AIRBAG AND TEMPERATURE SENSORS

Go to Split View

AIRBAG AND TEMPERATURE SENSORS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8K0907247 *Qty: 3 ANTENNA $36.63
Location: 2 Prev | Next Part: 4S0907731B *Qty: 1 SUPPORT $16.70
Location: 3 Prev | Next Part: 8K0907144M *Qty: 1 CONTROL UNIT $628.33
Location: 4 Prev | Next Part: N10158605 *Qty: 4 SCREW M6X20 $0.90
Location: 5 Prev | Next Part: 4H0959651A *Qty: 2 AIRBAG SENSOR (FRONT) $140.55
Location: 6 Prev | Next Part: 8Z0820535A *Qty: 1 TEMPERATURE SENSOR $26.87
Location: 7 Prev | Next Part: N90944604 *Qty: 2 SCREW (M6X25) $1.12
Location: 8 Prev | Next Part: 8K0959663C *Qty: 1 TRANSFORMER START STOP 200W $181.89
Location: 9 Prev | Next Part: 4T0805337A *Qty: 1 BRACKET $39.11
Location: 10 Prev | Next Part: N01508210 *Qty: 10 NUT M6 $0.90
Location: 11 Prev | Next Part: N10015101 *Qty: 2 NUT (A5) $0.90
Location: 12 Prev | Next Part: N01152426 *Qty: 4 WASHER $0.90
Location: 13 Prev | Next Part: WHT000778 *Qty: 4 WASHER $0.90
Location: 14 Prev | Next Part: N90981701 *Qty: 4 CLIP (M5X21X15.3) $0.90
Location: 15 Prev | Next Part: N90944604 *Qty: 4 SCREW (M5X12) $1.12
Location: 16 Prev | Next Part: 4H0959643 *Qty: 1 AIRBAG SENSOR (DOOR) $140.55
Location: 17 Prev | Next Part: 400864179A *Qty: 2 SPACER $1.55
Location: 18 Prev | Next Part: 4T0959793H *Qty: 1 CONTROL UNIT (DOOR) $169.01
Location: 19 Prev | Next Part: N10752901 *Qty: 4 SCREW (M5x18) $0.90
Location: 20 Prev | Next Part: 4H0955557 *Qty: 2 AIRBAG SENSOR (CHASSIS) $69.86

* Quantity shown indicates the number of pieces used in the diagram.
