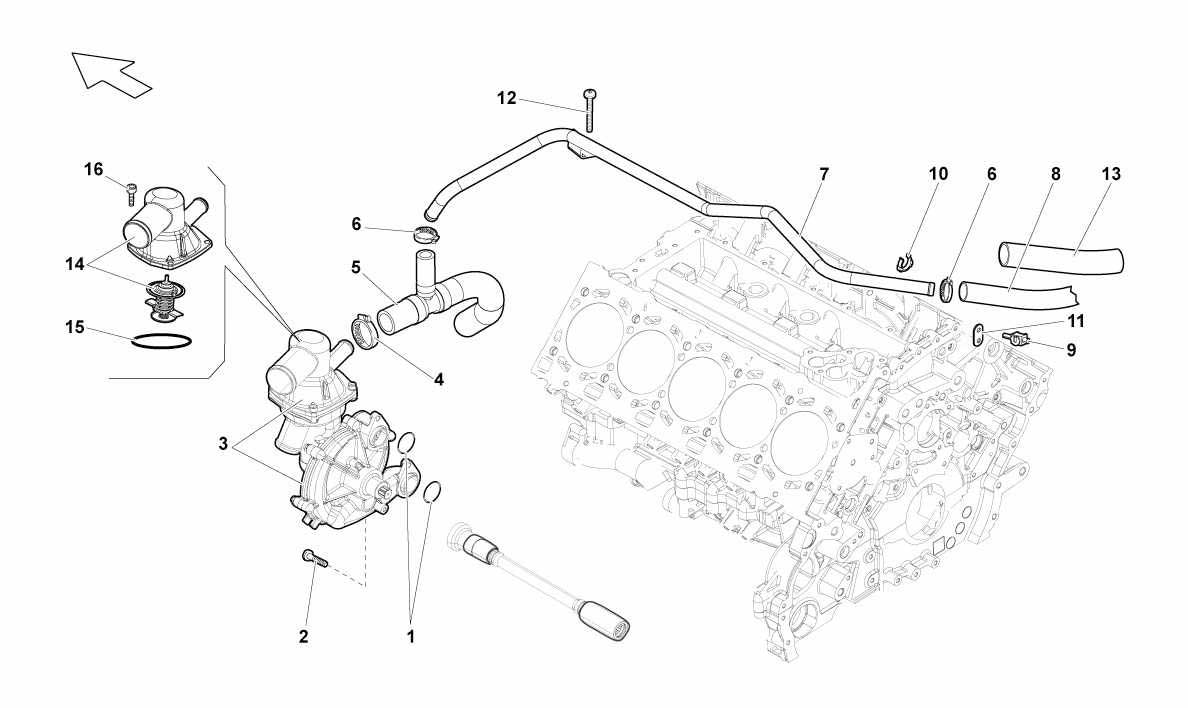

WATER COOLING SYSTEM

Go to Split View

WATER COOLING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N90903302 *Qty: 2 O-RING $3.72
Location: 2 Prev | Next Part: N10124303 *Qty: 2 SCREW $0.90
Location: 3 Prev | Next Part: 7L121011F *Qty: 1 WATER PUMP $645.33
Location: 4 Prev | Next Part: N90409501 *Qty: 1 CLAMP $0.90
Location: 5 Prev | Next Part: 7L121448A *Qty: 1 PIPE $746.63
Location: 6 Prev | Next Part: 400251189B *Qty: 2 CLAMP $8.37
Location: 7 Prev | Next Part: 407121400 *Qty: 1 PIPE $64.19
Location: 8 Prev | Next Part: 407819377A *Qty: 1 PIPE $27.05
Location: 9 Prev | Next Part: 400611757 *Qty: 1 JOURNAL $1.59
Location: 10 Prev | Next Part: 400611799B *Qty: 1 SUPPORT $0.90
Location: 11 Prev | Next Part: 7L121093A *Qty: 1 PLATTE $8.71
Location: 12 Prev | Next Part: N10335202 *Qty: 1 SCREW $0.90
Location: 13 Prev | Next Part: 400121092 *Qty: 1 PROTECTION $13.43
Location: 14 Prev | Next Part: 7L198113 *Qty: 1 WATER THERMOSTAT BODY $248.90
Location: 15 Prev | Next Part: WHT003459 *Qty: 1 GASKET $8.52
Location: 16 Prev | Next Part: WHT003470 *Qty: 4 SCREW M8X18 $1.04

* Quantity shown indicates the number of pieces used in the diagram.
