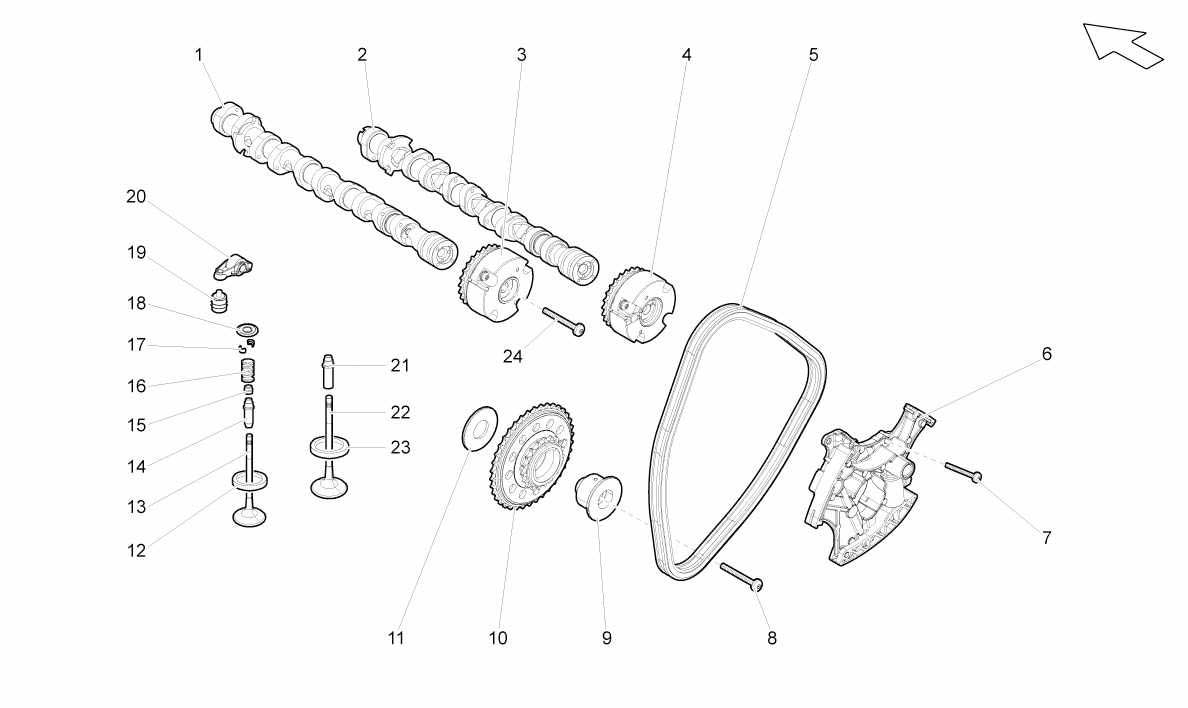

RIGHT HEAD TIMING SYSTEM

Go to Split View

RIGHT HEAD TIMING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L109101R *Qty: 1 INTAKE CAMSHAFT $417.30
Location: 2 Prev | Next Part: 7L109102P *Qty: 1 EXHAUST CAMSHAFT $365.82
Location: 3 Prev | Next Part: 7L109083A *Qty: 1 PHASE TRANSFORMER $251.96
Location: 4 Prev | Next Part: 7L109084C *Qty: 1 PHASE TRANSFORMER $278.55
Location: 5 Prev | Next Part: 6E109229A *Qty: 1 CHAIN $91.60
Location: 6 Prev | Next Part: 6E109218C *Qty: 1 CHAIN TIGHTENER $374.40
Location: 7 Prev | Next Part: N10124303 *Qty: 6 SCREW M6X20 $0.90
Location: 8 Prev | Next Part: N90941701 *Qty: 1 SCREW M10X45.0 $1.31
Location: 9 Prev | Next Part: 79109512E *Qty: 1 RIGHT SUPPORT $74.57
Location: 10 Prev | Next Part: 79109569K *Qty: 1 GEAR $259.80
Location: 11 Prev | Next Part: 79109435H *Qty: 1 WASHER $31.25
Location: 12 Prev | Next Part: 6D103431L *Qty: 10 INTAKE VALVE SEAT $5.23
Location: 13 Prev | Next Part: 6D109601H *Qty: 10 INTAKE VALVE $59.26
Location: 14 Prev | Next Part: 7L103415 *Qty: 10 INTAKE GUIDE $68.85
Location: 15 Prev | Next Part: 57109675 *Qty: 20 GASKET (INTAKE/EXHAUST) $1.49
Location: 16 Prev | Next Part: 6E109623 *Qty: 10 SPRING $12.57
Location: 17 Prev | Next Part: 36109651 *Qty: 20 VALVE COTTER $0.90
Location: 18 Prev | Next Part: 6E109641A *Qty: 10 TAPPET UPPER PLATE $8.76
Location: 19 Prev | Next Part: 57109521 *Qty: 10 HYDRAULIC ELEMENT $14.30
Location: 20 Prev | Next Part: 6D109417F *Qty: 10 LEVER $75.05
Location: 21 Prev | Next Part: 6D103415F *Qty: 10 EXHAUST GUIDE $68.85
Location: 22 Prev | Next Part: 6D109611H *Qty: 10 EXHAUST VALVE $46.05
Location: 23 Prev | Next Part: 6D103441L *Qty: 10 EXHAUST VALVE SEAT $6.73
Location: 24 Prev | Next Part: N91042802 *Qty: 2 SCREW M12X1-25X60X30 $2.73

* Quantity shown indicates the number of pieces used in the diagram.
