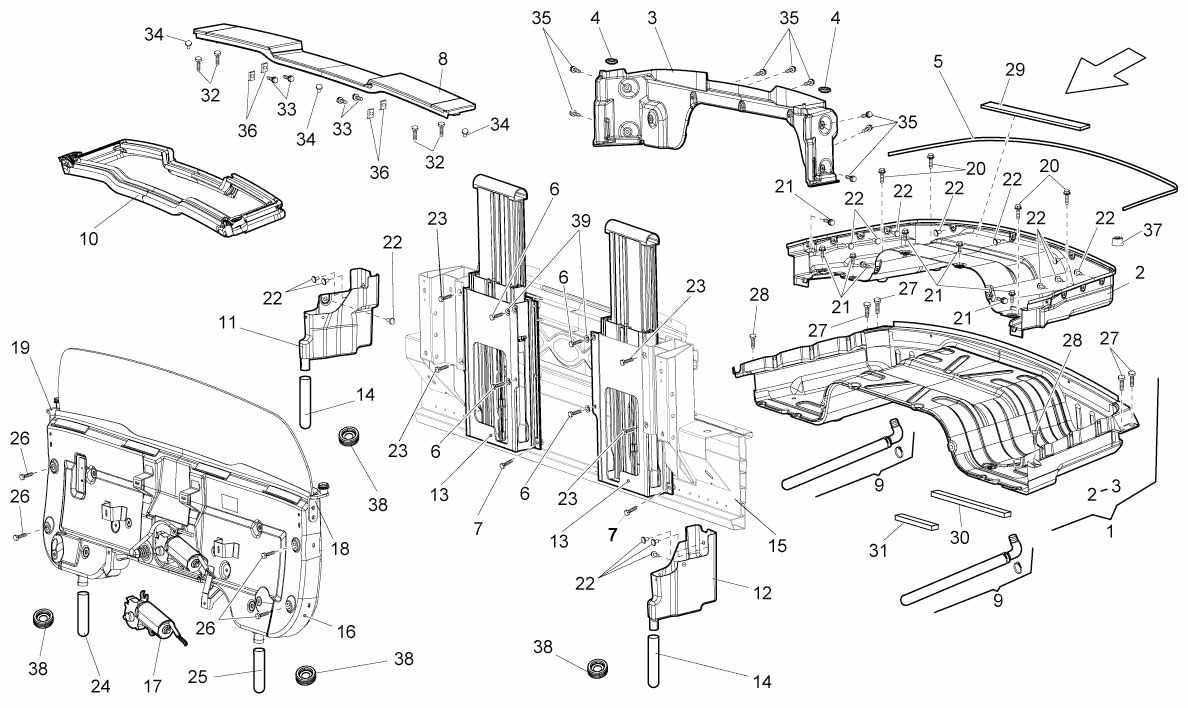

REAR WINDOW GLASS - FOLDING TOP

Go to Split View

REAR WINDOW GLASS - FOLDING TOP

Location Part # Quantity* Description Price Add To Cart
1 407813613B 1 FOLDING-TOP (INCLUDES REF. 2 - 3) Unavailable
2 407863405A 1 LINING CONTAINER Unavailable
3 407864401B 1 LINING FRONT-TOP BOX Unavailable
4 N90493701 2 PLUG Unavailable
5 407825402 1 SEAL-TOP BOX Unavailable
6 N0103914 4 SCREW M8X100X41 Unavailable
7 N91000201 4 FLANGE BOLT M8X25.0 Unavailable
8 407827991 1 COVER Unavailable
9 407871353 2 WATER DRAIN Unavailable
10 407827460A 1 GASKET Unavailable
11 407813953A 1 WATER DRIP TRAY LEFT Unavailable
12 407813954A 1 WATER DRIP TRAY RIGHT Unavailable
13 407880079A 2 ROLLOVER Unavailable
14 407813921 2 WATER DRAIN PIPE Unavailable
15 0 REAR PANEL (SEE TABLE 701.13.00) Unavailable
16 407845051B 1 REAR WINDOW GLASS Unavailable
17 407845535 1 WINDOW LIFTER Unavailable
18 407813477 1 LH BRACKET Unavailable
19 407813478 1 RH BRACKET Unavailable
20 N10553801 4 HEXALOBULAR SOCKET FLANGE BOLT M6X45 Unavailable
21 N90917201 8 HEXALOBULAR SOCKET FLANGE BOLT M6X25 Unavailable
22 8930807 17 RUBBER PLUG 8X14-5 Unavailable
23 WHT001673 8 SCREW M8X100 Unavailable
24 407813919A 1 WATER DRAIN Unavailable
25 407813920A 1 WATER DRAIN Unavailable
26 N90415403 4 SCREW Unavailable
27 N90848001 4 SCREW Unavailable
28 N90847901 2 SCREW Unavailable
29 407813999A 1 GASKET Unavailable
30 407825418 2 GASKET Unavailable
31 407825417 4 GASKET Unavailable
32 N10621601 4 SCREW M4X12 Unavailable
33 N10621601 4 SCREW M4X12 Unavailable
34 400867299 3 FASTENER LYS FUSION- YELLOW Unavailable
35 WHT000757 9 SCREW M6X16 Unavailable
36 N90526602 4 CLIP Unavailable
37 407813241 2 PUFFER Unavailable
38 400825837 4 FAIRLEAD Unavailable
39 N90107607 4 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
